Jumpers and Connectors | 329

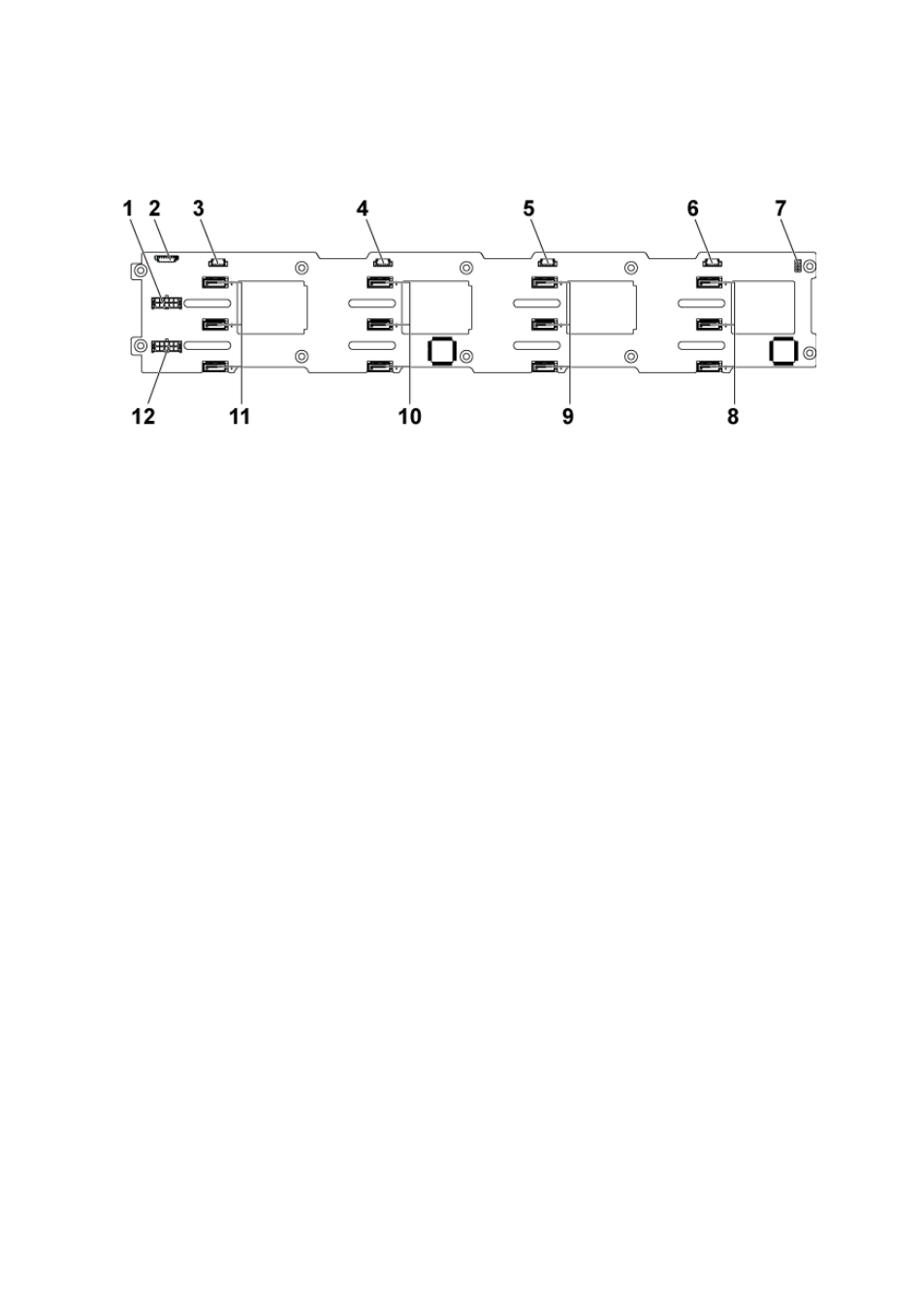

Figure 5-4. Back View of the Backplane
1 backplane power connector for
power supply 1 2 1x8pin fan controller board
connector
3 SGPIO connector 4 for system board
4 4 SGPIO connector 3 for system
board 3
5 SGPIO connector 2 for system board
2 6 SGPIO connector 1 for system
board 1
7 backplane jumper 8 SATA2 and SAS connectors 1, 2
and 3 for system board 1 (from top
to bottom)
9 SATA2 and SAS connectors 1, 2 and
3 for system board 2 (from top to
bottom) 10 SATA2 and SAS connectors 1, 2
and 3 for system board 3 (from top
to bottom)
11 SATA2 and SAS connectors 1, 2 and
3 for system board 4 (from top to
bottom) 12 backplane power connector for
power supply 2
