Dell PowerEdge C6220 II User Manual
Page 243
Removing and Installing System Components | 243

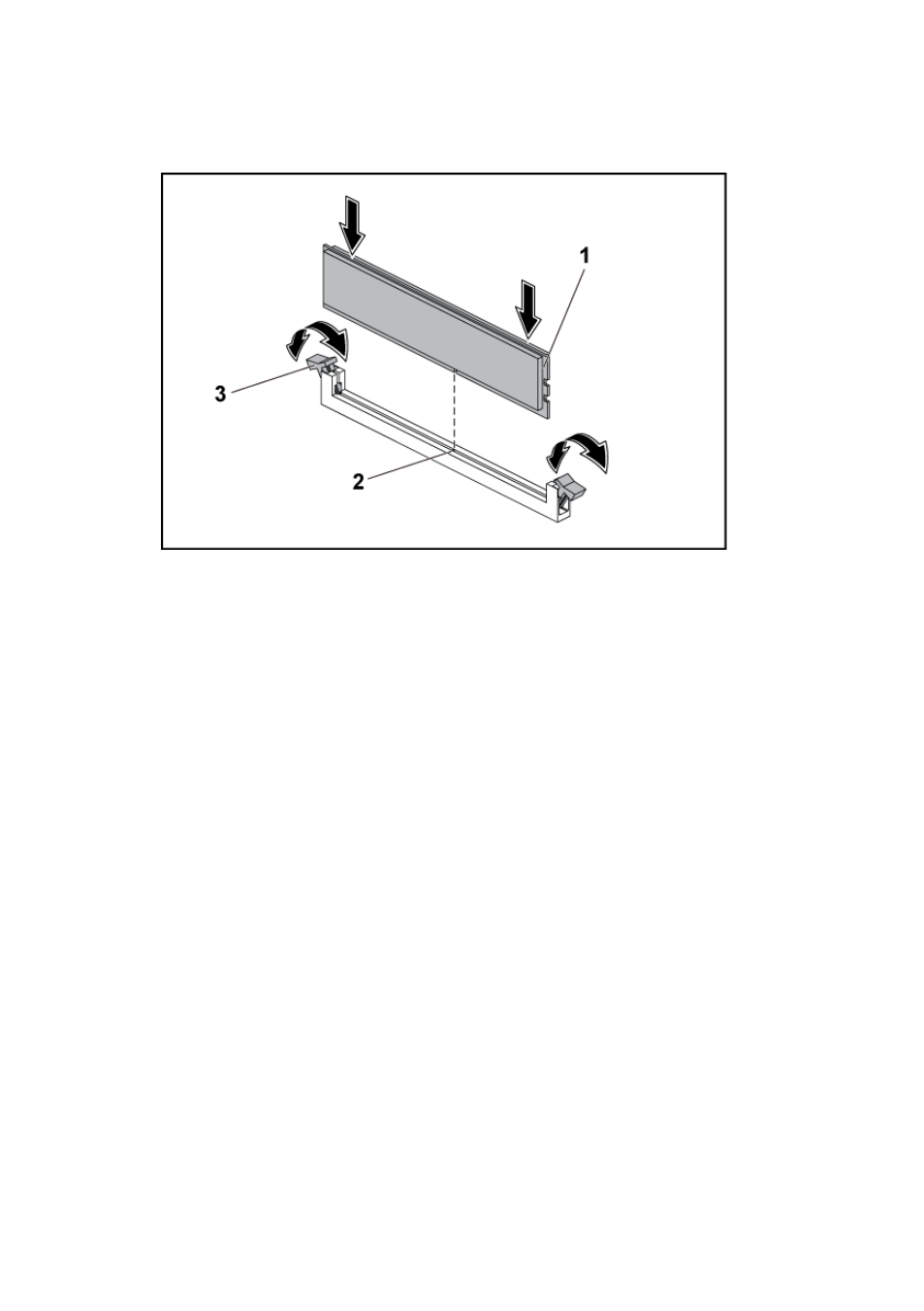

Figure 3-65. Installing a Memory Module
1
memory module
2
alignment key
3
memory module socket ejector (2)
4 Replace the air baffle. See “Installing the Air Baffle ” on page 173.
5 Replace the system-board assembly. See “Installing a System-Board
