Front-Panel Features and Indicators

This system is designed with two types of system boards: C6220 II and
C6220. The system supports the following configurations:

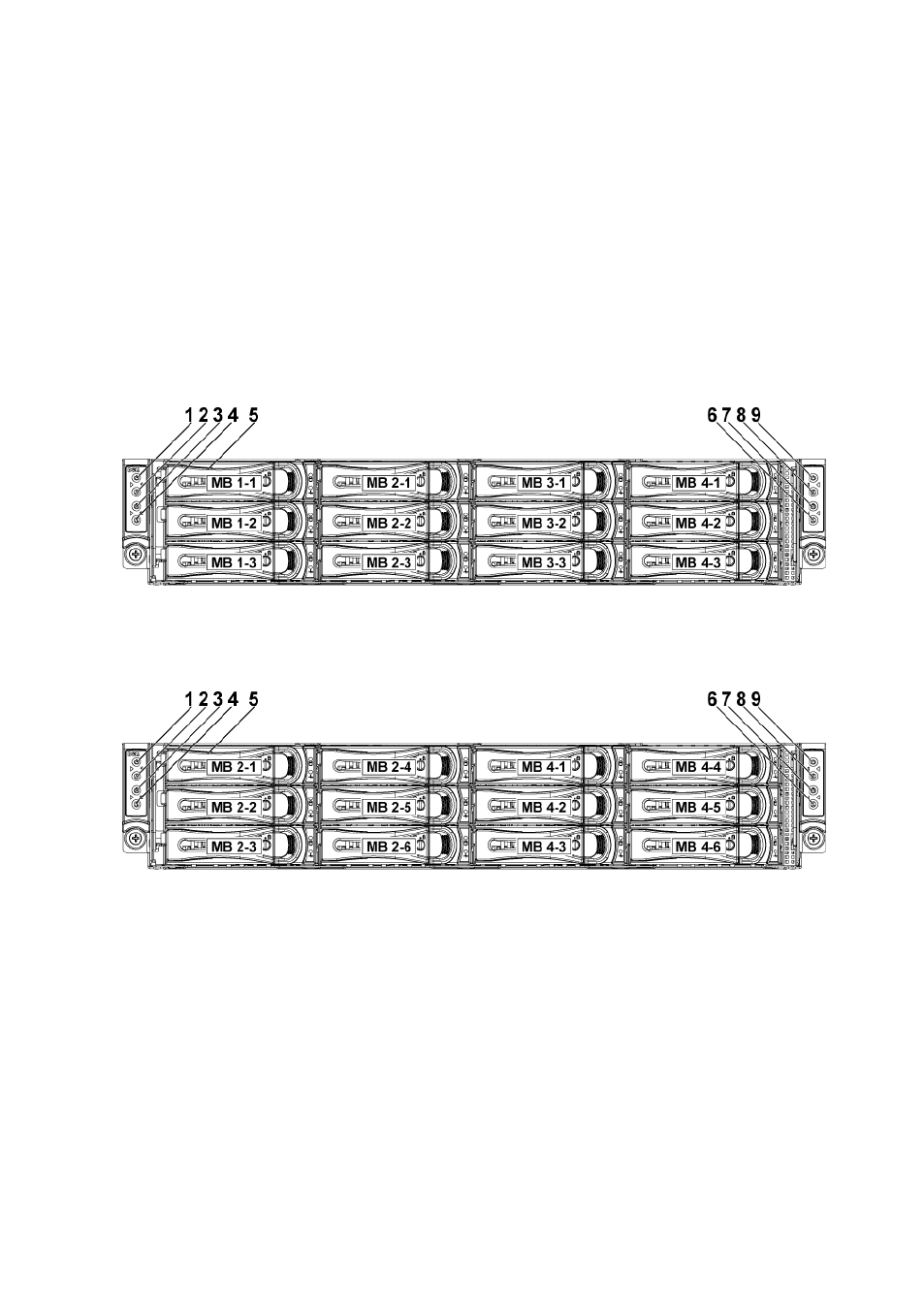

Figure 1-1. Front Panel−3.5” x12 Hard Drives With Four System Boards
(C6220/C6220 II RAID Card & Onboard SATA Controller)

Figure 1-2. Front Panel−3.5” x12 Hard Drives With Two System Boards
(C6220/C6220 II RAID Card & C6220 II Onboard SATA Controller)
