258 | Removing and Installing System Components
10 Lift the power distribution board connector from the system. See
Figure 3-76.

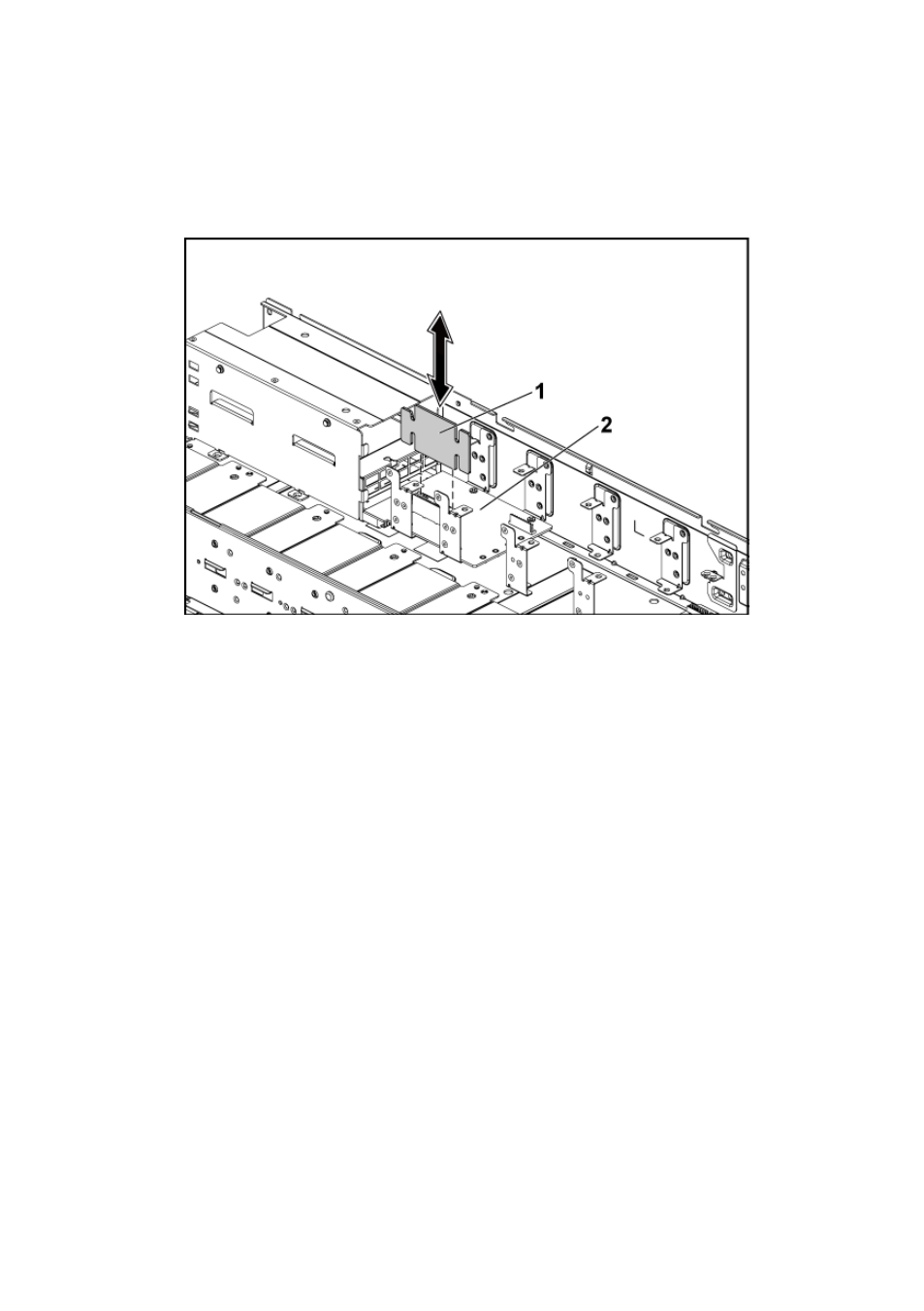

Figure 3-76. Removing and Installing the Power Distribution Board Connector
1 power distribution board connector 2 power distribution board 2
11 Disconnect all the cables from the power distribution board 2. See
Figure 3-73.
12 Remove the power cable cover from the power distribution board 2.
See Figure 3-73.
13 Remove the four power cables from the power distribution board 2. See
Figure 3-74.
