Dell PowerEdge C6220 II User Manual
Page 305
Removing and Installing System Components | 305
8 Remove the screw that secures the sensor board assembly to the hard
drive cage. See Figure 3-109.
9 Remove the sensor board assembly from the hard drive cage. See

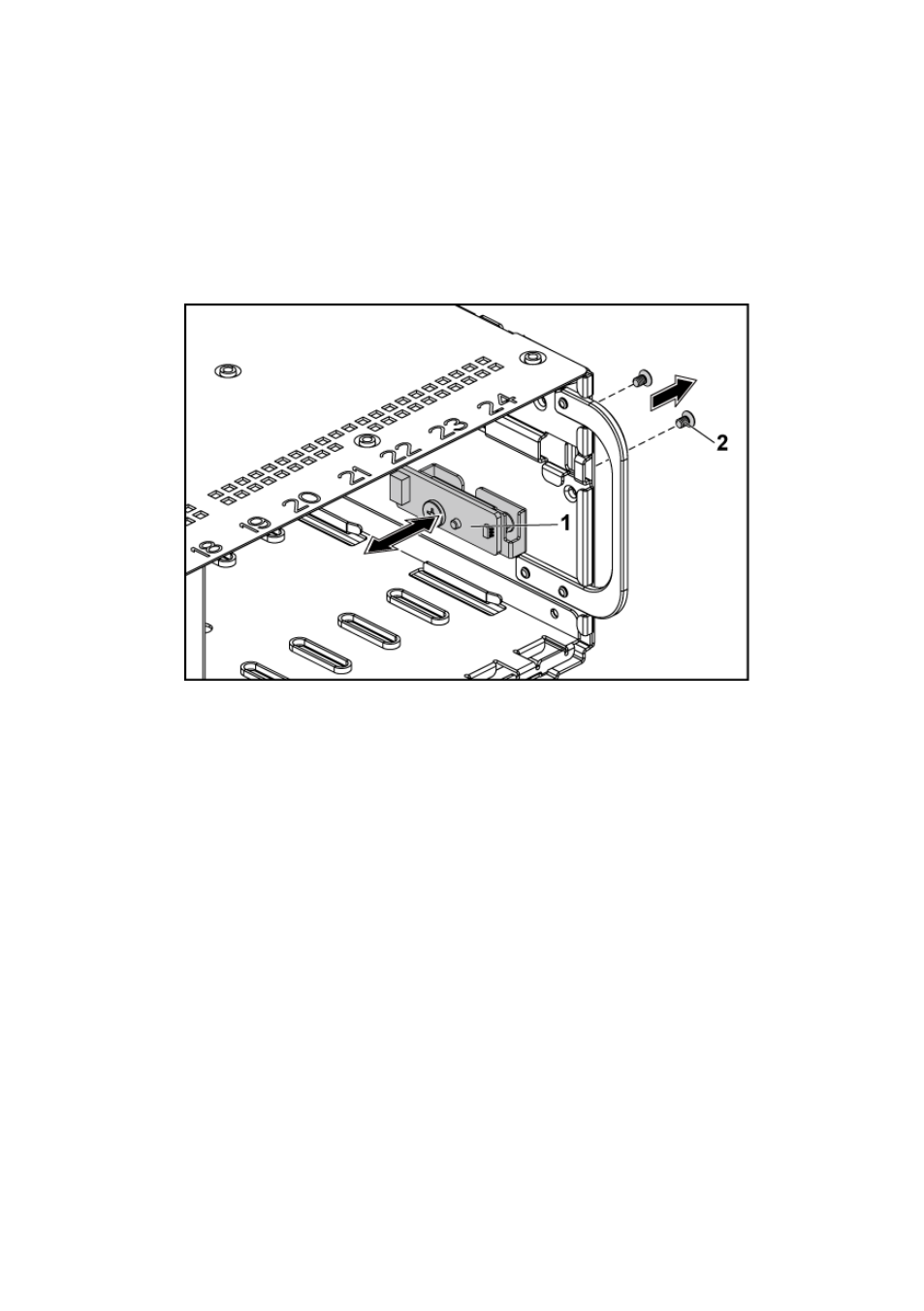

Figure 3-109. Removing and Installing the Sensor Board Assembly
1
sensor board assembly
2
screw (2)
