284

|

Removing and Installing System Components


7 Remove the screws that secure the front-panel assemblies to the chassis.

See Figure 3-96.

8 Remove the hard-drive cage from the chassis. See Figure 3-96.

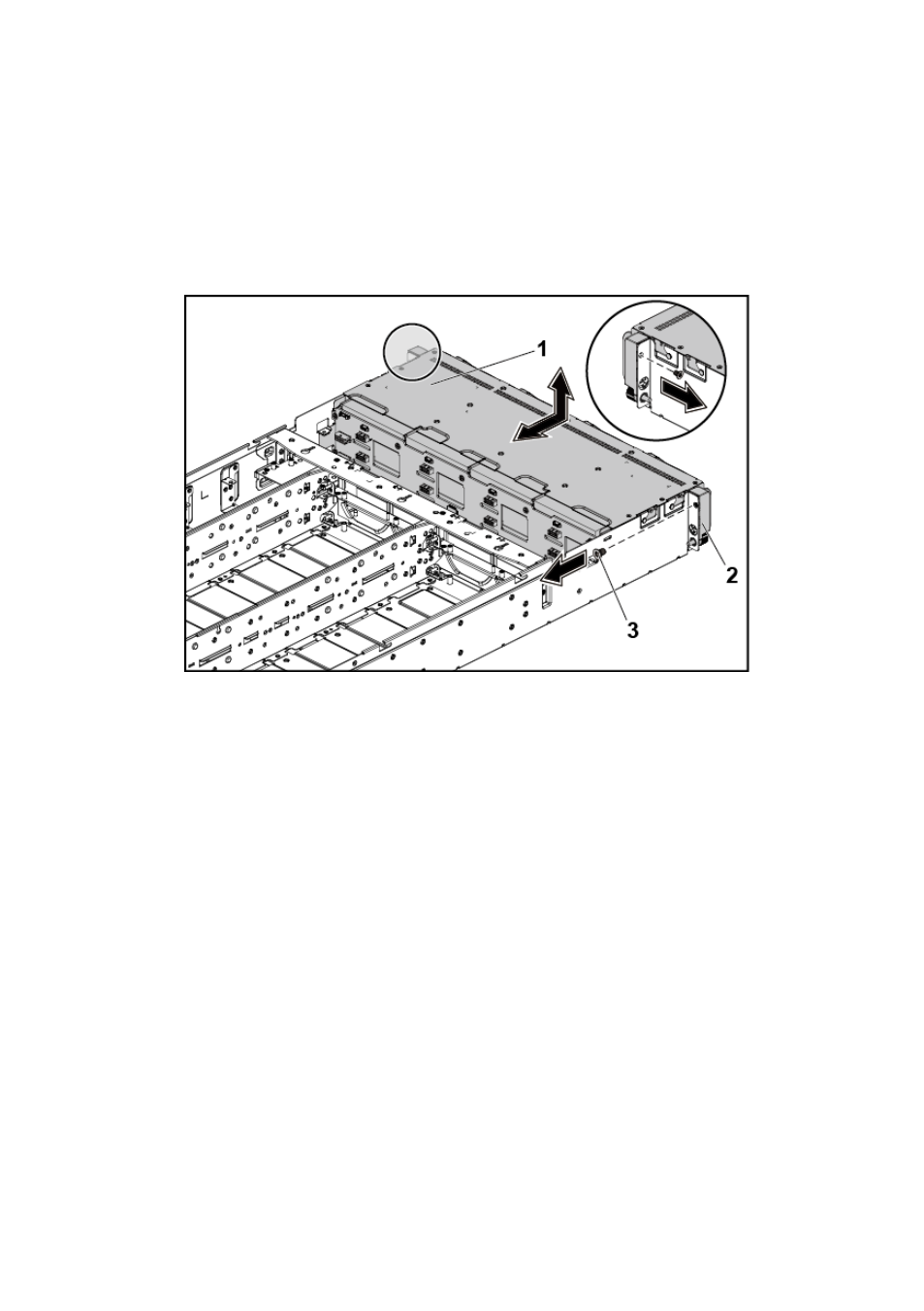

Figure 3-96. Removing and Installing the Hard-Drive Cage Cable Routing for Middle
Plane to Direct Backplane

1

hard-drive cage

2

front-panel assembly (2)

3

screw (2)
