Removing and Installing System Components | 203

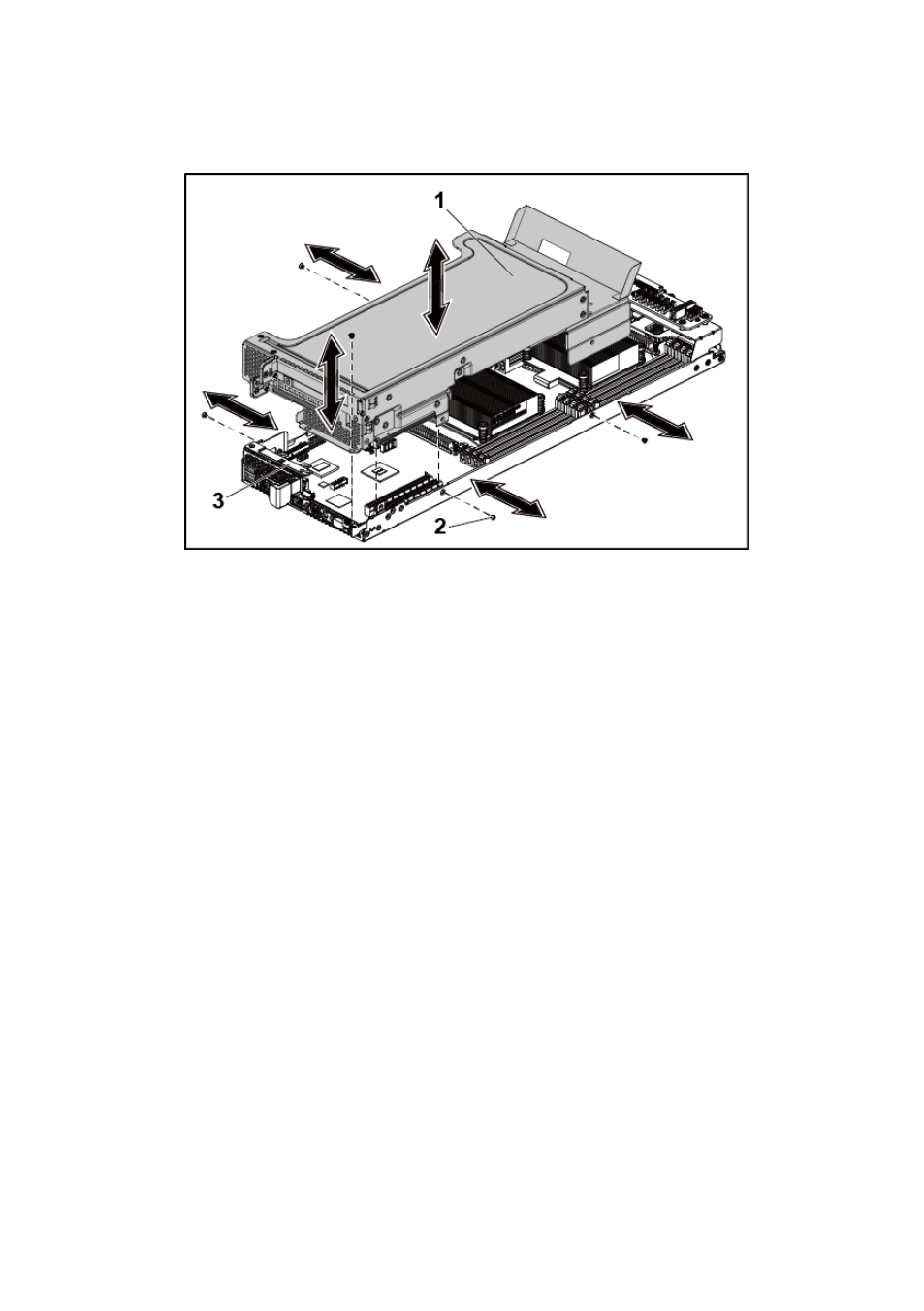

Figure 3-34. Removing the LSI 9265-8i Card Assembly for 2U Node

1

LSI 9265-8i-card assembly

2

screw (5)

3

system-board assembly

5 Remove the four screws securing the LSI 9265-8i card lock cover. See

Figure 3-35.

6 Remove the LSI 9265-8i card lock cover. SeeFigure 3-35.
