System Configuration Jumper Settings on the C6220 System Board
The function of system configuration jumper installed on each C6220
system board is shown below:

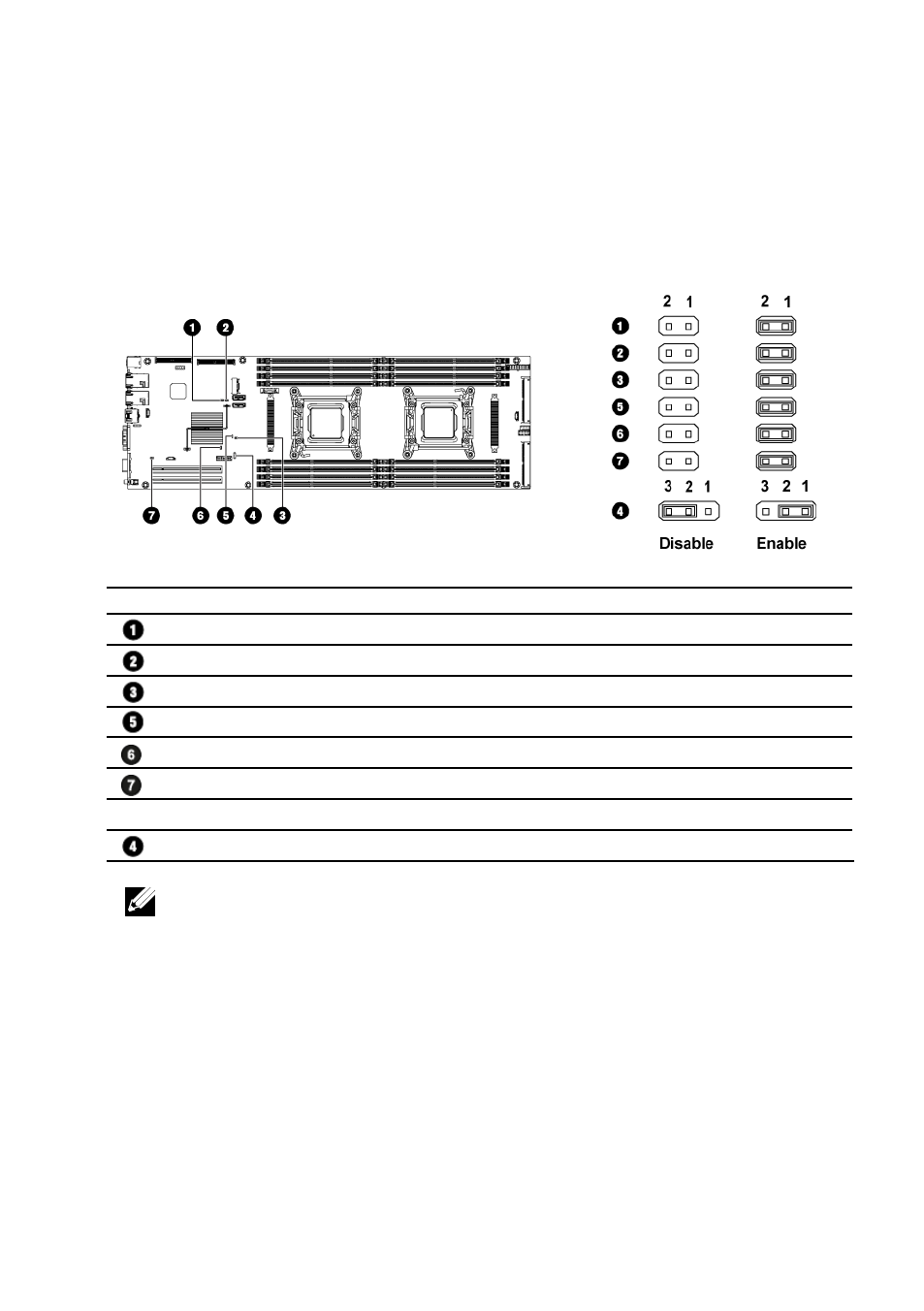

Figure 5-19. System Configuration Jumpers on the C6220 System Board
Table 5-2. System Configuration Jumper on the C6220 System Board
Jumper Function Off On
Service Mode *Disable Enable
NVRAM Clear *Disable Enable
BIOS Recovery *Disable Enable
ME Firmware Recovery *Disable Enable
MEDBG1 *Disable Enable
Power Button Pass *Disable Enable
Jumper Function Pin1-2 Pin2-3
PWRD_EN *Enable Disable
NOTE: The * in the table of system configuration jumper describes the default
status and the default state is not active state.
