Removing the Riser Card for 1U Node
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Remove the system-board assembly. See “Removing a System-Board
Assembly" on page 170.
2 Remove the expansion card. See “Removing the Expansion Card for
1U Node” on page 184.
3 Remove the two screws securing the riser card to the expansion-card
bracket. See Figure 3-45.
4 Pull the riser card away from the expansion-card bracket. See Figure 3-
45.

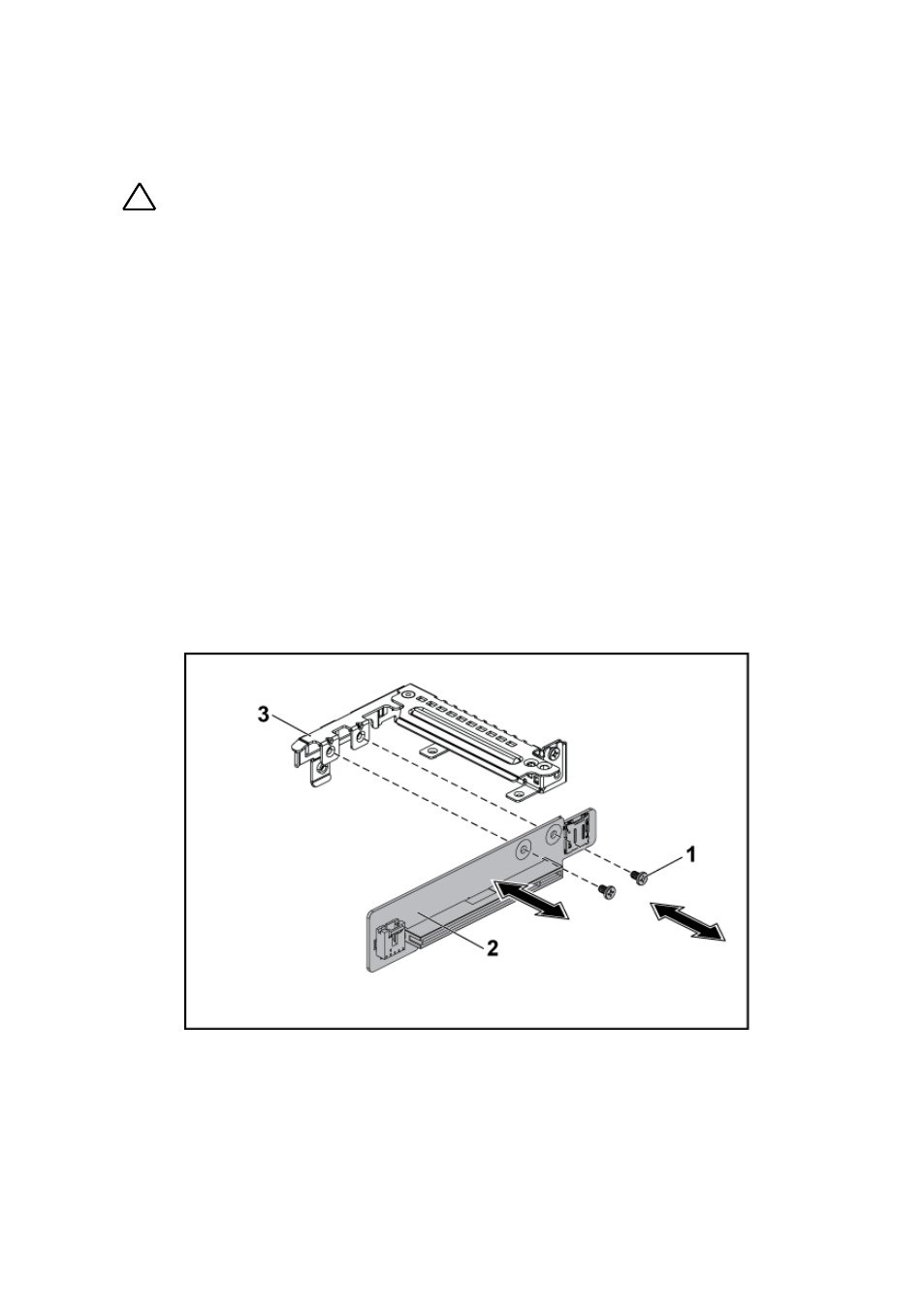

Figure 3-45. Removing and Installing the Riser card
1 screw (2) 2 riser card
3 expansion-card bracket
