Removing and Installing System Components
13 Remove the screws that secure the mid-plane holder support to the
chassis. See Figure 3-84.
14 Lift the mid-plane holder support out of the chassis. See Figure 3-84.

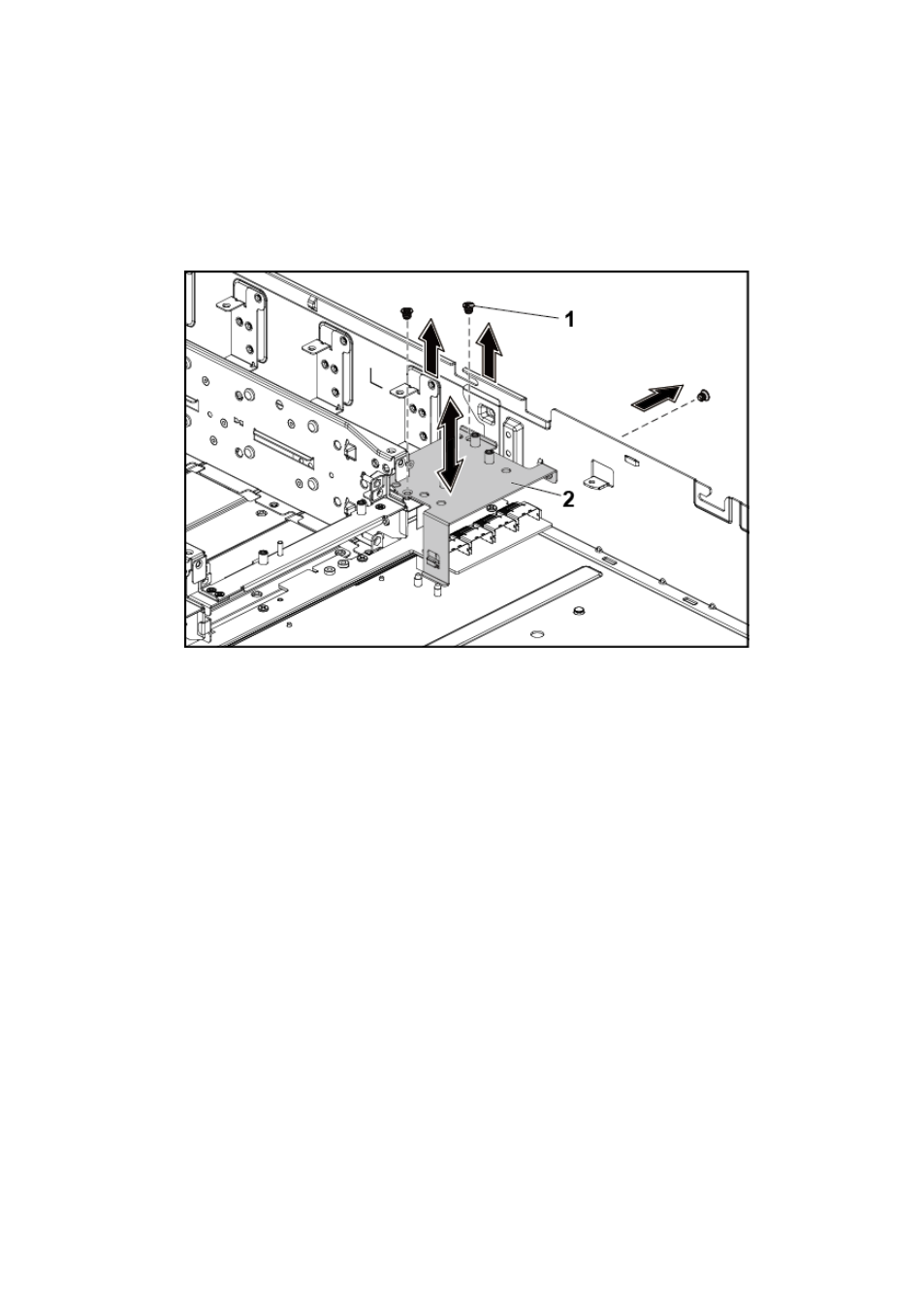

Figure 3-84. Removing and Installing the Mid-plane Holder Support
1
screw (3)
2
mid-plane holder support
