182 | Removing and Installing System Components
Removing the Interposer Extender Tray for 2U Node
1 Remove the system-board assembly. See “Removing a System-Board
Assembly" on page 170.
2 Remove the interposer extender for 2U node. See Figure 3-21.
3 Remove the screws that secure the interposer-extender tray to the
system board. See Figure 3-22.
4 Lift the interposer-extender tray out of the system-board assembly. See
Figure 3-22.

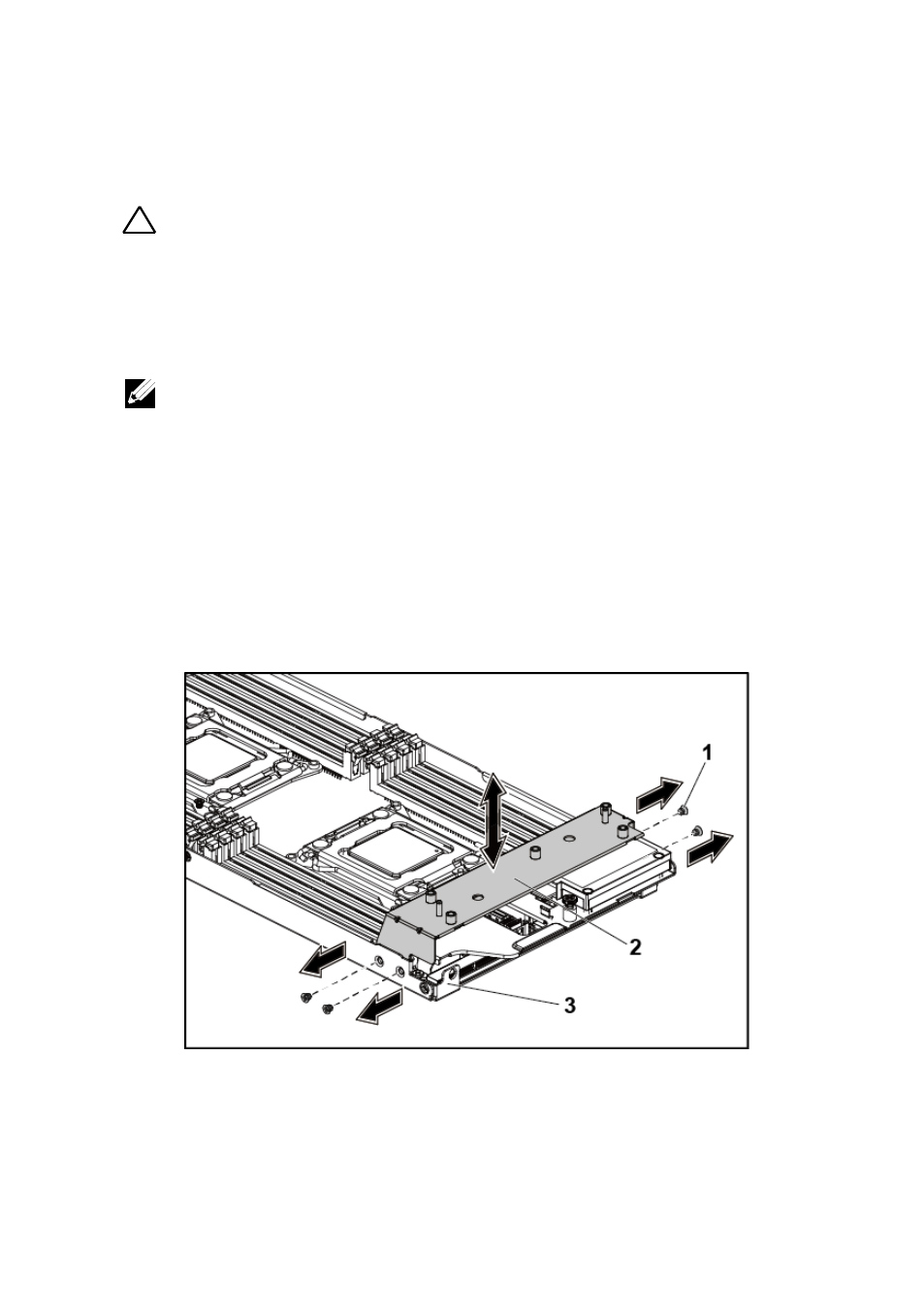

Figure 3-22. Removing and Installing the Interposer-Extender Tray
1 screw (4) 2 interposer-extender tray
3 system-board assembly
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
NOTE: This section is applicable to systems with 2U node only.
