Removing and Installing System Components


1

screw (3)

2

expansion-card bracket

3

system-board assembly

5 Remove the screws that secure the 1GbE mezzanine card assembly.

See Figure 3-57.

6 Lift the 1GbE mezzanine card assembly away from the card bridge

board on the system board. See Figure 3-57.

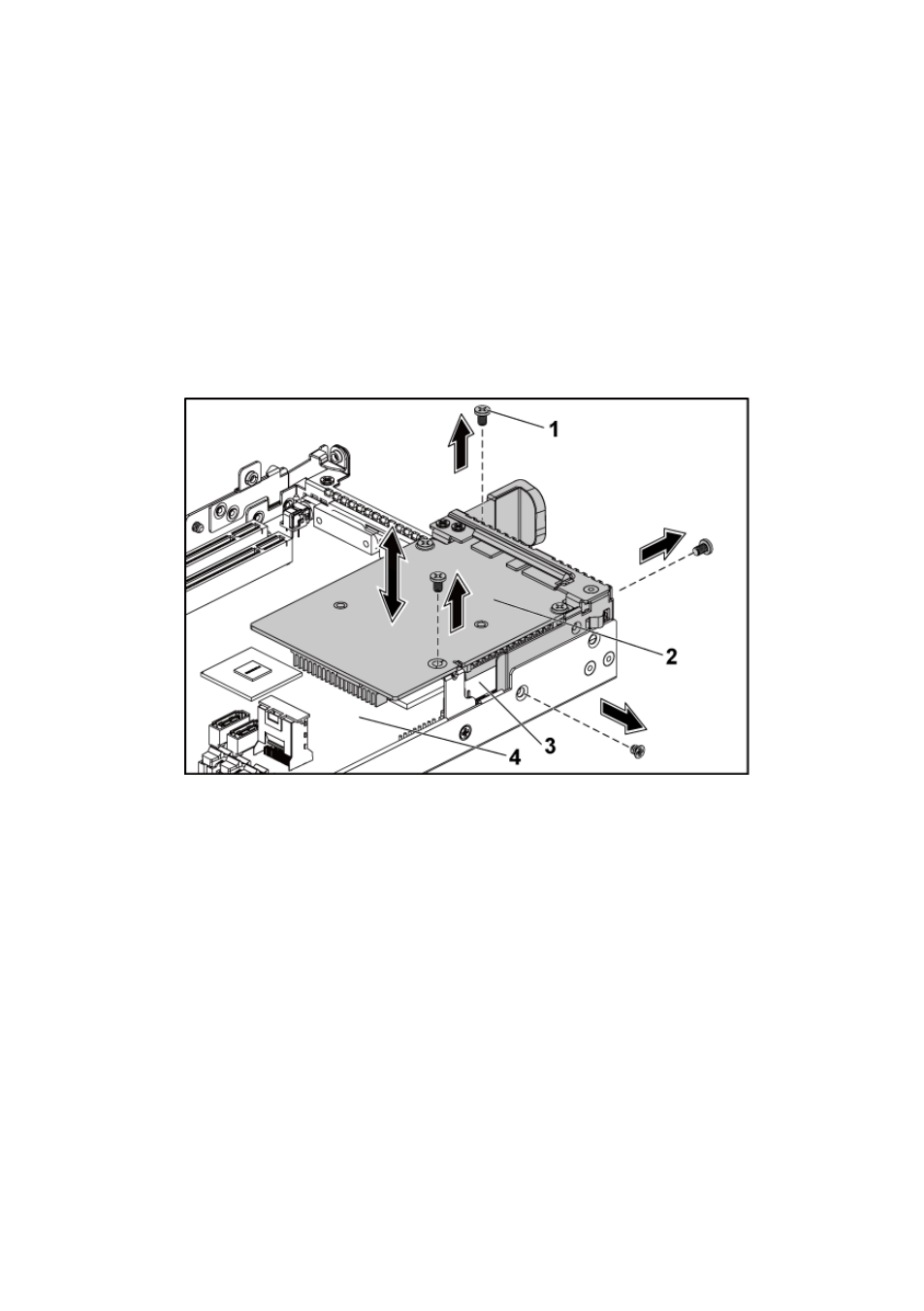

Figure 3-57. Removing and Installing the 1GbE mezzanine card assembly

1

screw (4)

2

1GbE mezzanine card assembly

3

card bridge board

4

system-board assembly
