Dell PowerEdge C6220 II User Manual
Page 292
292
|
Removing and Installing System Components
9 Remove the screws that secure the expander card assembly to the hard-
drive cage. See Figure 3-102.

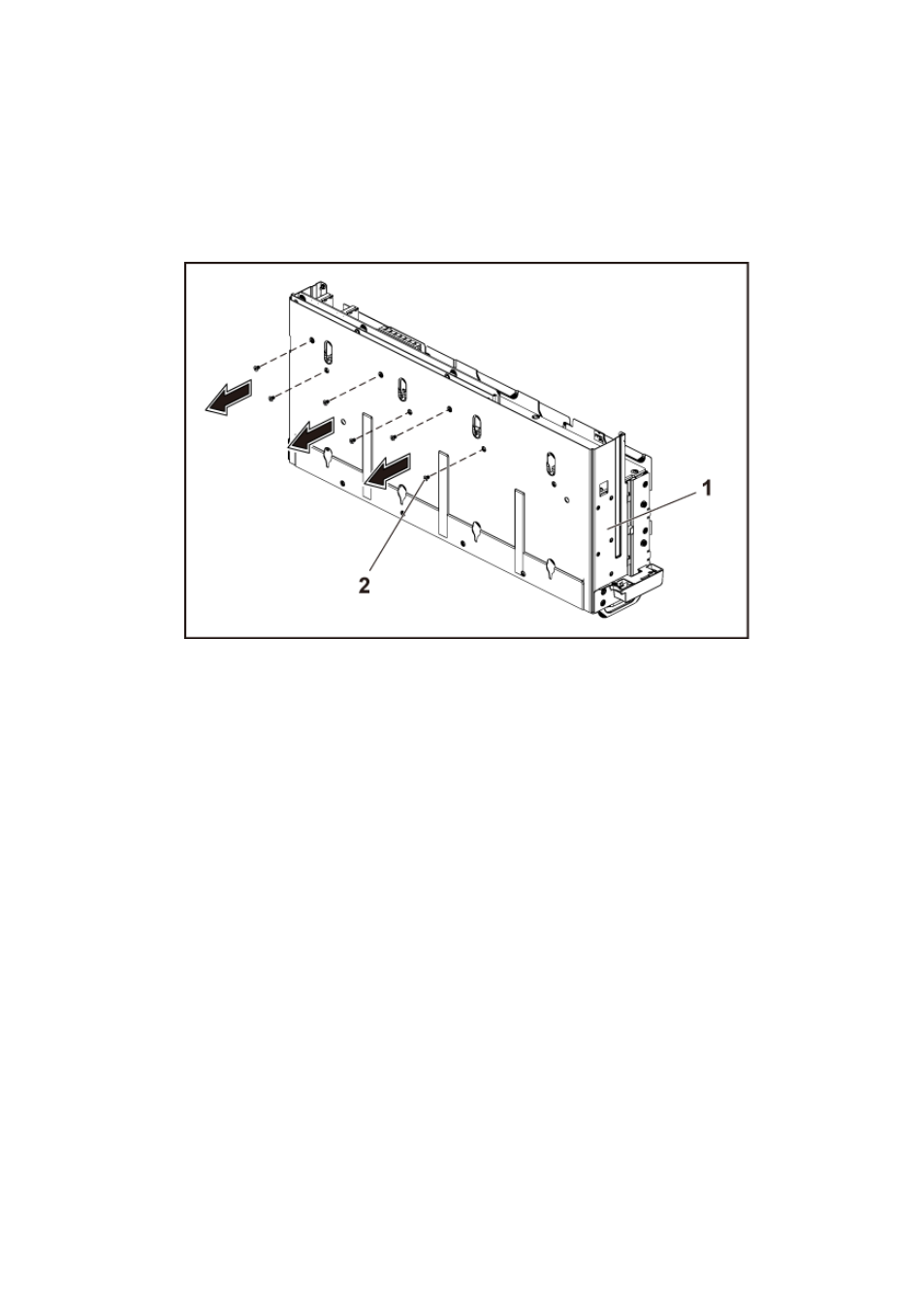

Figure 3-102. Removing and Installing the screws securing the expander card
assembly to the hard-drive cage
1
hard-drive cage
2
screw (6)
