Dell PowerEdge C6220 II User Manual
Page 266
266
|
Removing and Installing System Components

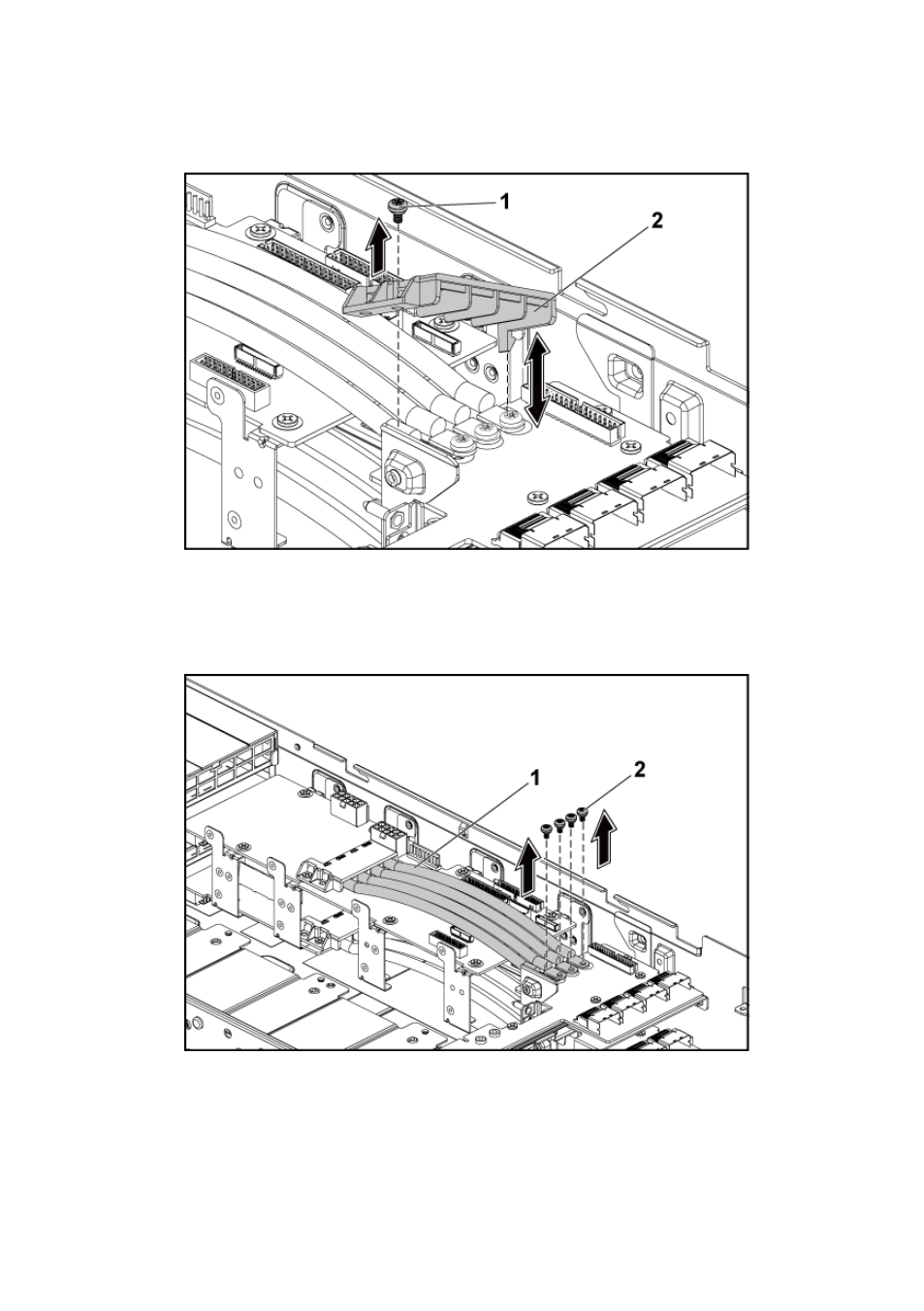

Figure 3-81. Removing and Installing the Power Cable Cover
1
screw
2
power cable cover
10 Remove the four screws that secure the power cables to the upper
middle plane. See Figure 3-82.
Figure 3-82. Removing and Installing the Power Cables
1
power cables (4)
2
screw (4)
