156

|

Removing and Installing System Components


5 Disconnect the fan cable from the fan connector on the cooling-fan

cage. See Figure 3-5.

6 Lift the cooling fan with the sponge out of the cooling-fan cage. See

Figure 3-5.

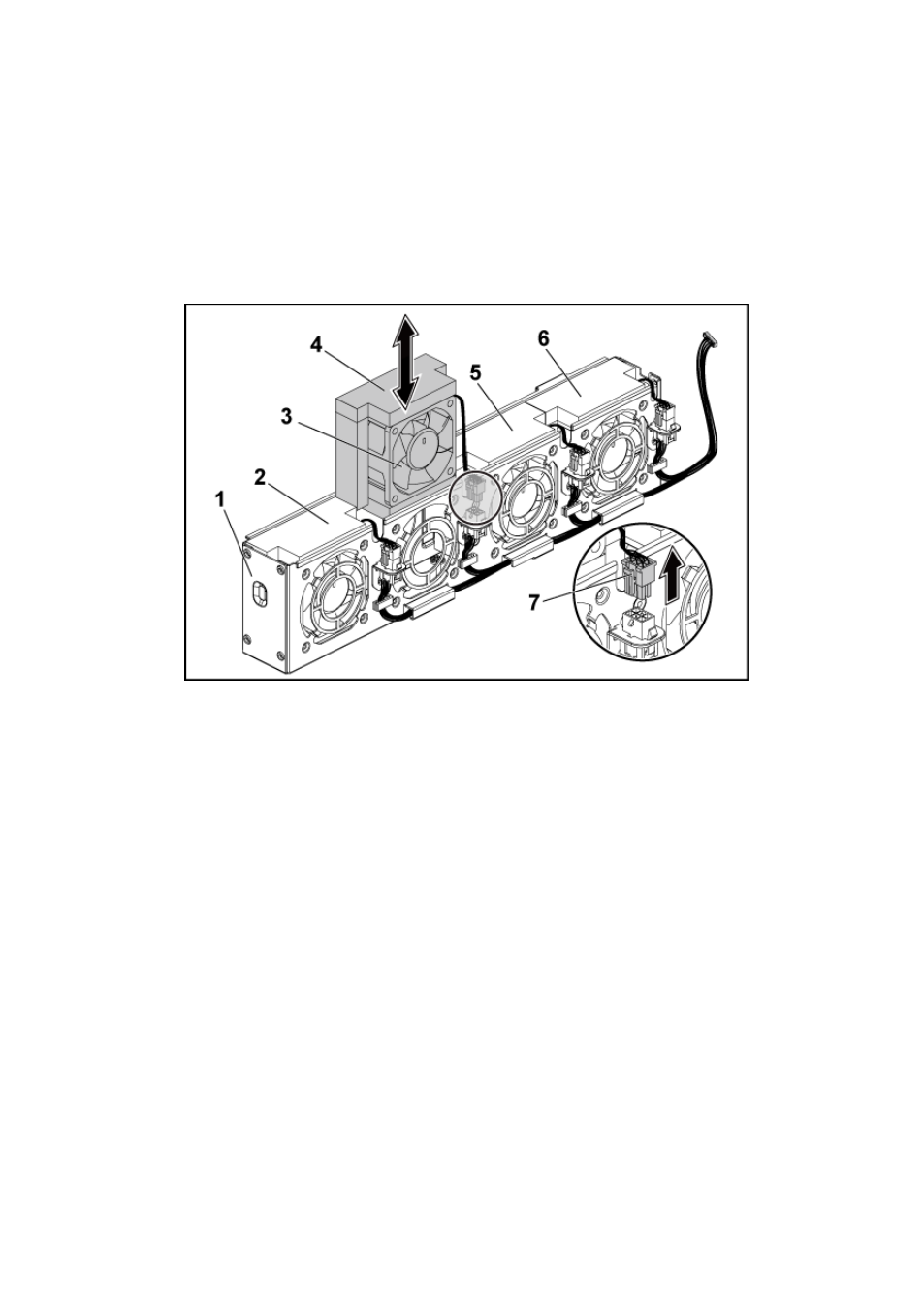

Figure 3-5. Removing and Installing a Cooling Fan

1

cooling-fan cage

2

cooling fan 1

3

cooling fan 2

4

sponge

5

cooling fan 3

6

cooling fan 4

7

fan cable
