Removing and Installing System Components | 213
Interposer Extender Tray” on page 182.
6 Remove the LSI 9265-8i RAID battery assembly. See “Removing the
LSI 9265-8i RAID battery Assembly” on page 210.
7 Remove the screws securing the LSI 9265-8i RAID battery to the
LSI9265-8i RAID battery carrier. See Figure 3-41.
Lift the LSI 9265-8i RAID battery carrier away from the LSI9265-8i
RAID battery carrier. See Figure 3-41.

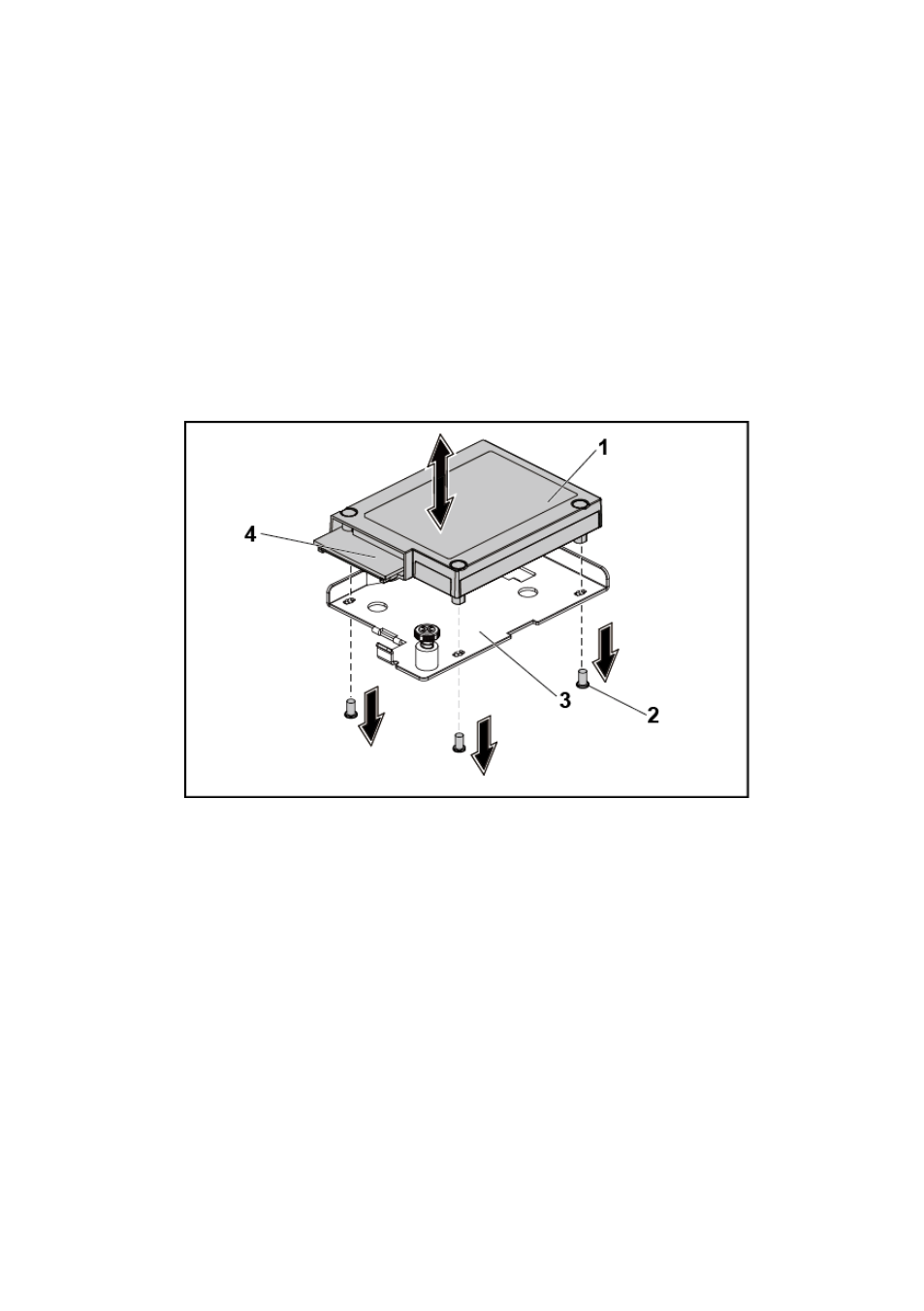

Figure 3-41. Removing and Installing the LSI 9265-8i RAID Battery
1 LSI 9265-8i RAID battery 2 screw (3)
3 LSI 9265-8i RAID battery carrier 4 RAID battery connector
Installing the LSI 9265-8i RAID Battery
1 Place the LSI 9265-8i RAID battery in position on the LSI 9265-8i
RAID battery carrier. See Figure 3-41.
2 Replace the screws securing the LSI 9265-8i RAID battery to the LSI
9265-8i RAID battery carrier. See Figure 3-41.
3 Install the LSI 9265-8i RAID battery assembly. See “Installing the LSI
9265-8i RAID Battery Assembly” on page 212.
4 Reconnecting the cable connecting to the LSI 9265-8i card.
