Jumpers and Connectors


Power Distribution Board 1 Connectors

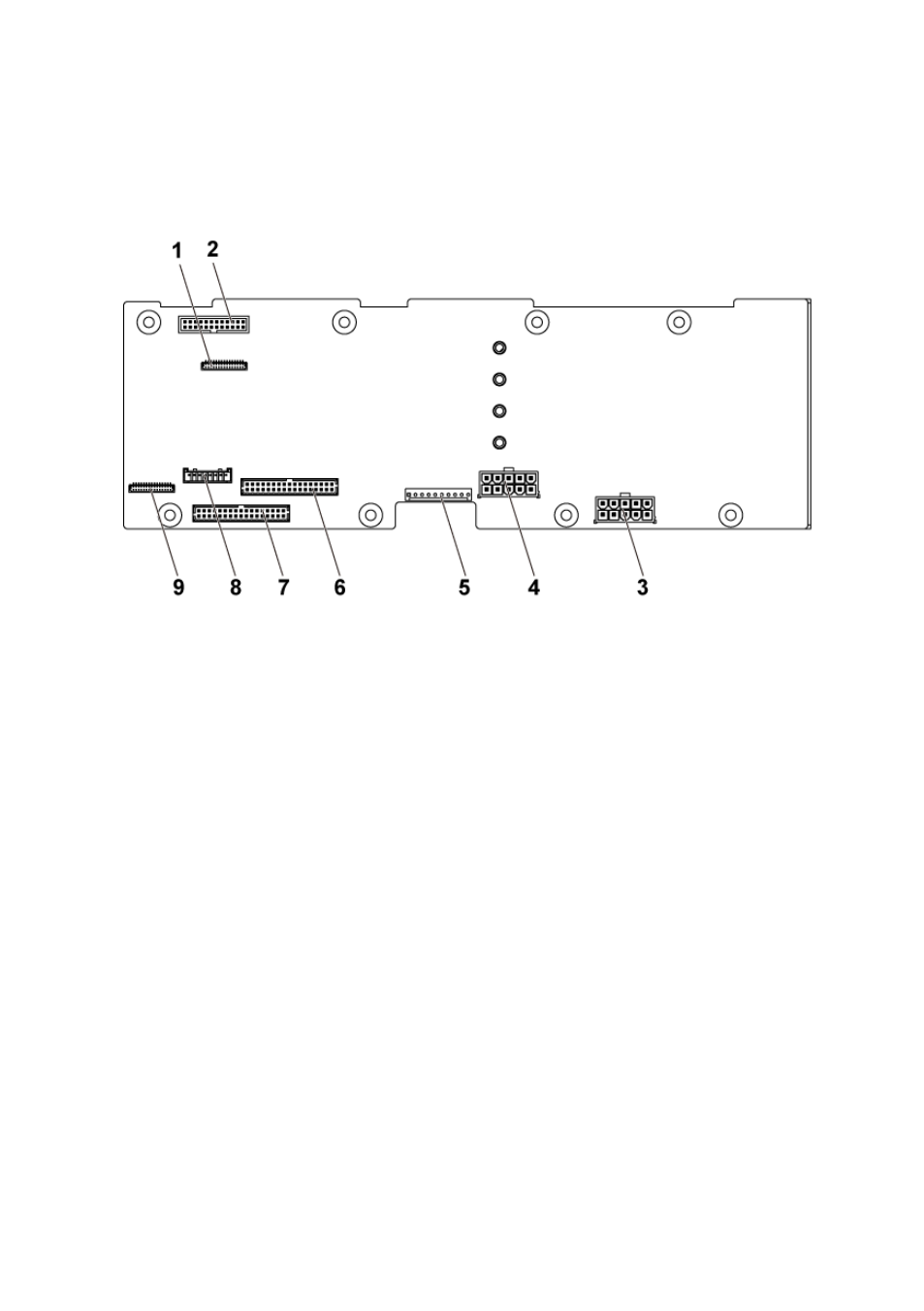

Figure 5-15. Power Distribution Board 1 Connectors

1

front panel connector for system
board 1 and 2

2

system fan connector

3

hard drive backplane power
connector 1

4

hard drive backplane power
connector 2

5

1x10pin control connector

6

2x17pin control connector for
system board 2 and 4

7

2x17pin control connector for
system board 1 and 3

8

1x8pin control connector to hard
drive backplane

9

front panel connector for system
board 3 and 4
