224 | Removing and Installing System Components
Cable Routing for LSI 2008 SAS Mezzanine Card (1U Node)
1 Connect the mini-SAS&SGPIO cable to the LSI 2008 SAS Mezzanine
card, and connect the other end of the cable to the corresponding
connectors on the system board. See Figure 3-51.
2 Connect the mini-SAS cable to the LSI 2008 SAS Mezzanine card, and
connect the other end of the cable to the corresponding connector on
the system board. See Figure 3-51.
NOTE: The SGPIO cable must be connected before the LSI 2008 SAS Mezzanine
card is installed.

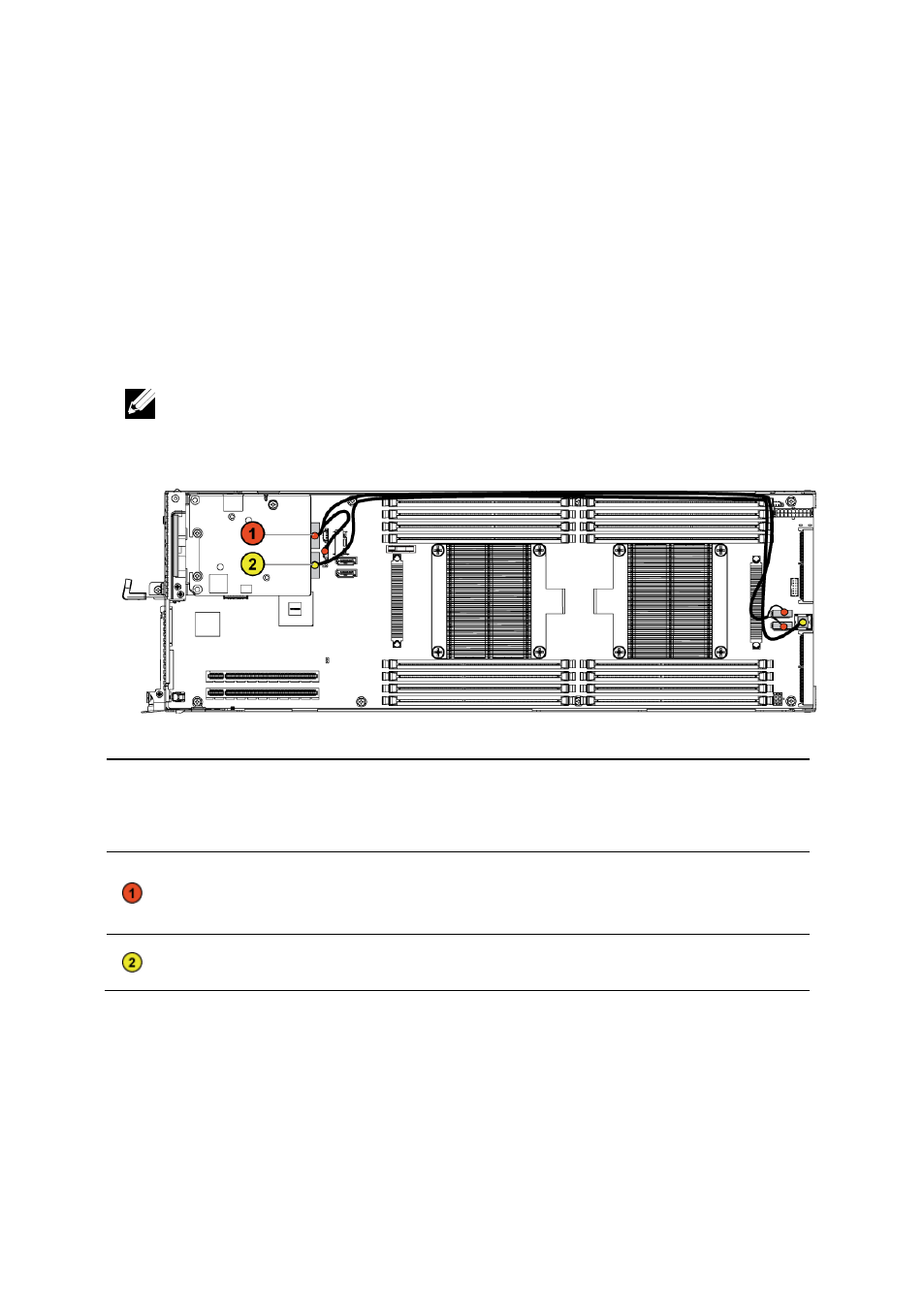

Figure 3-51. Cable Routing for LSI 2008 SAS Mezzanine Card (1U Node)
Item Cable From
(LSI 2008 SAS
Mezzanine Card)
To
(System Board)
Mini-SAS
/SGPIO cable Mini-SAS connector
4~7 (J4) SAS/SATA input
connectors 4&5 and
SGPIO 2
Mini-SAS
cable Mini-SAS connector
0~3 (J3) SAS/SATA input
connector 0
