340 | Jumpers and Connectors
Jumper Settings
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
System Configuration Jumper Settings on the C6220 II System Board
The function of system configuration jumper installed on each C6220 II
system board is shown below:

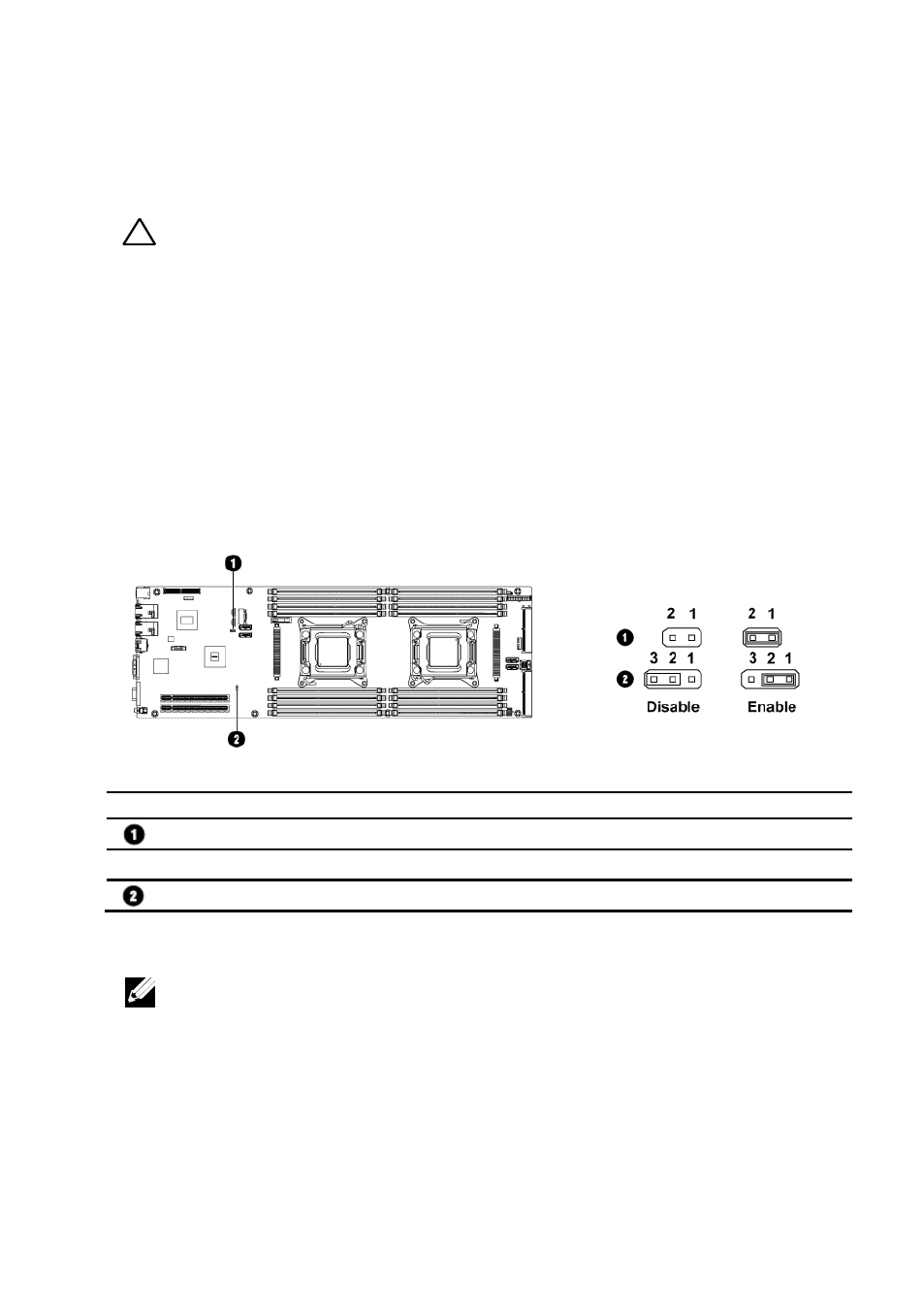

Figure 5-18. System Configuration Jumpers on the C6220 II System Board
Table 5-1. System Configuration Jumper on the C6220 II System Board
Jumper
Function Off On
NVRAM clear *Disable Enable
Jumper Function Pin1-2 Pin2-3
PWRD_EN *Enable Disable
NOTE: The * in the table of system configuration jumper describes the default
status and the default state is not active state.
