Installing the Air Baffle
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Replace the air baffle into the system-board assembly. Make sure that
the four latches are properly engaged with the heat sink bases and the
latches click in place. See Figure 3-17.
2 Replace the system-board assembly. See "Installing a System-Board
Assembly" on page171
NOTE: When installing the air baffle, make sure the arrow of the mark on the air
baffle points to the processor 1, and keep the flat surface of the air baffle
horizontal.

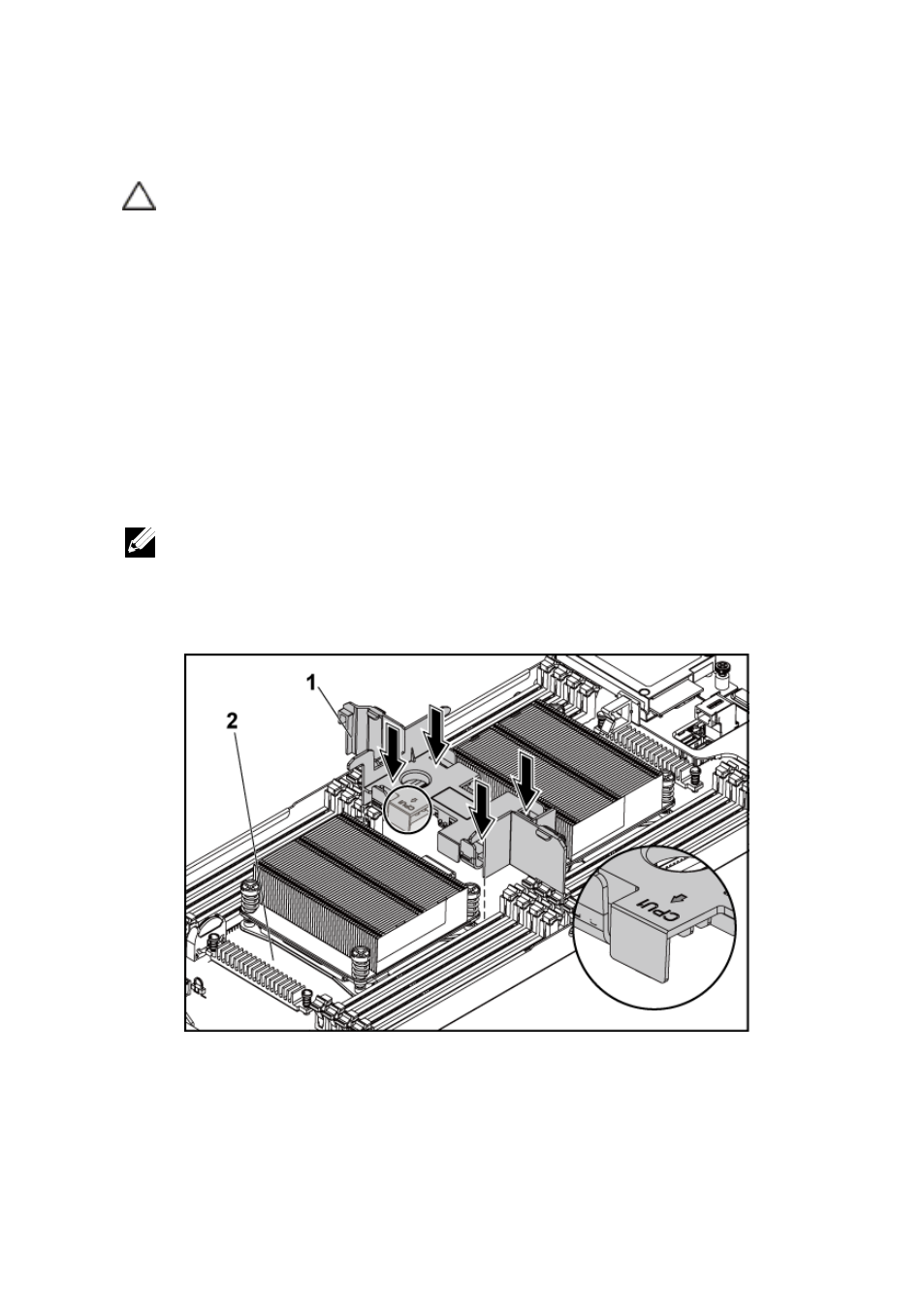

Figure 3-17. Installing the Air Baffle
1 air baffle 2 system-board assembly
