Removing and Installing System Components | 291


7 Remove the screws that secure the front-panel assemblies to the chassis.

See Figure 3-101.

8 Remove the hard-drive cage from the chassis. See Figure 3-101.

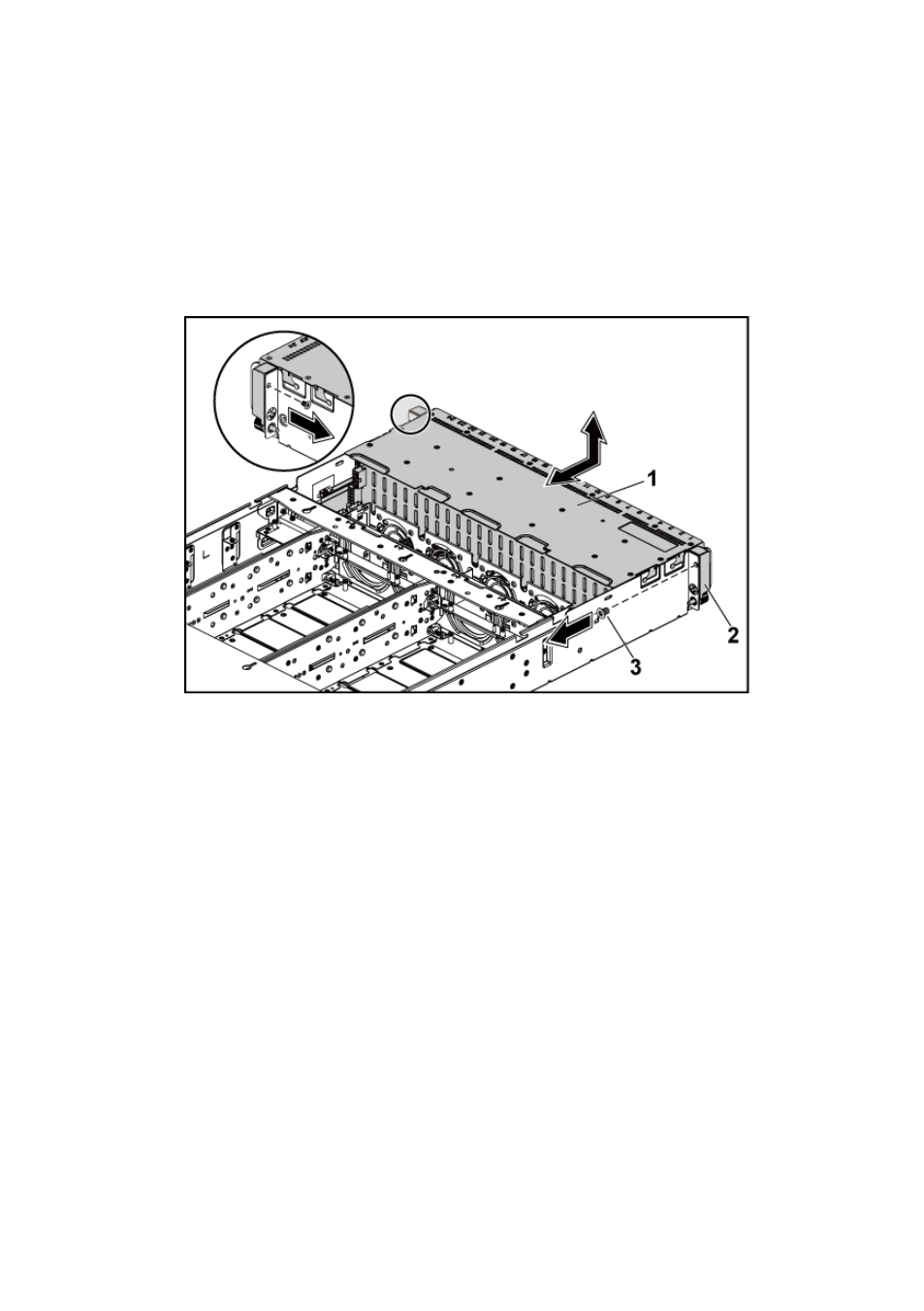

Figure 3-101 Removing and Installing the 2.5” Hard-Drive Cage for Expander
Configuration

1

hard-drive cage

2

front-panel assembly (2)

3

screw (2)
