Removing and Installing System Components

Item

Cable

From
(Bottom Middle Plane)

To
(Direct Backplane)

Hard-drive
backplane
cable

Mini-SAS connector for
system board 3 and 4
(hard drive 5 and 6) (J4)

SATA2 hard drive
connectors 5 to 6 for
system board 4 (from
right to left)

Cable Routing for Middle Plane to 2.5” Hard-Drive Backplane for

Expander Configuration

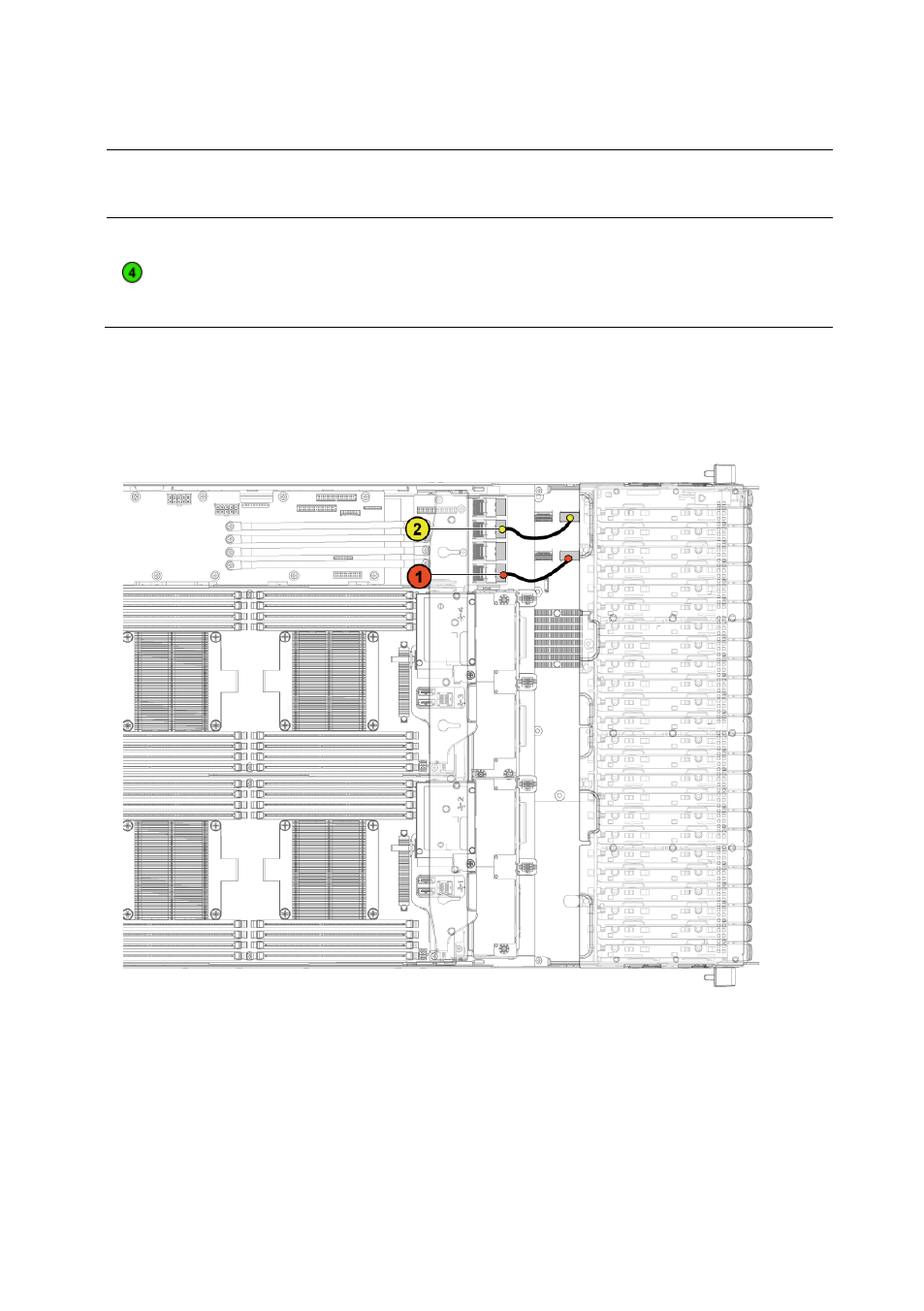

Figure 3-91. Cable Routing−Top Middle Plane to 2.5” Hard Drive for Expander
Configuration
