Installing System Components 331

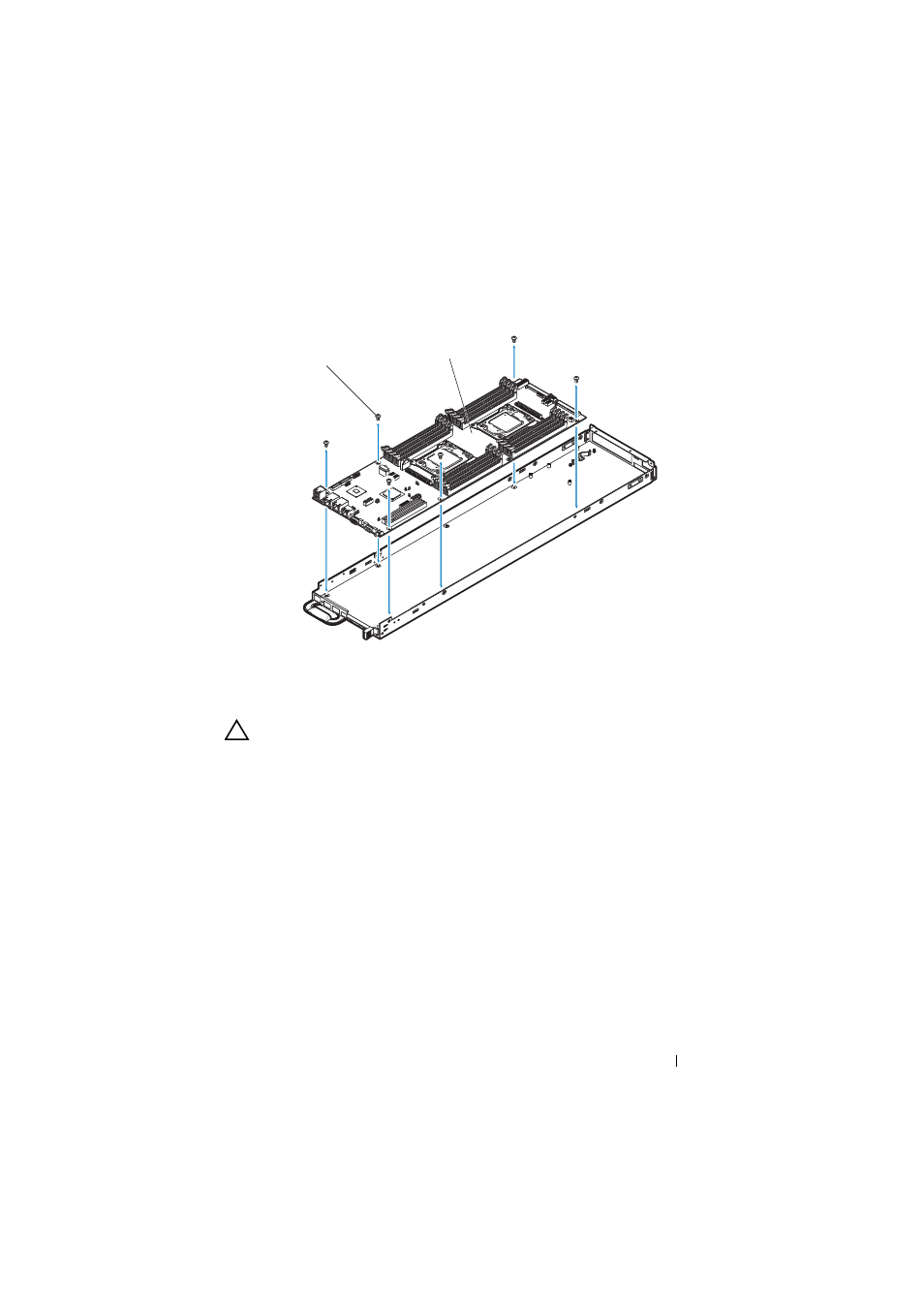

Figure 3-127. Removing the System Board
Installing the System Board
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
1 Unpack the new system board.
2 Holding the system board by the edges, slide the system board into the
sled tray. See Figure 3-127.
3 Replace the six screws securing the system board to the sled tray.
See Figure 3-127.
1 M3 screws (6) 2 system board
1
2
