Installing System Components

179

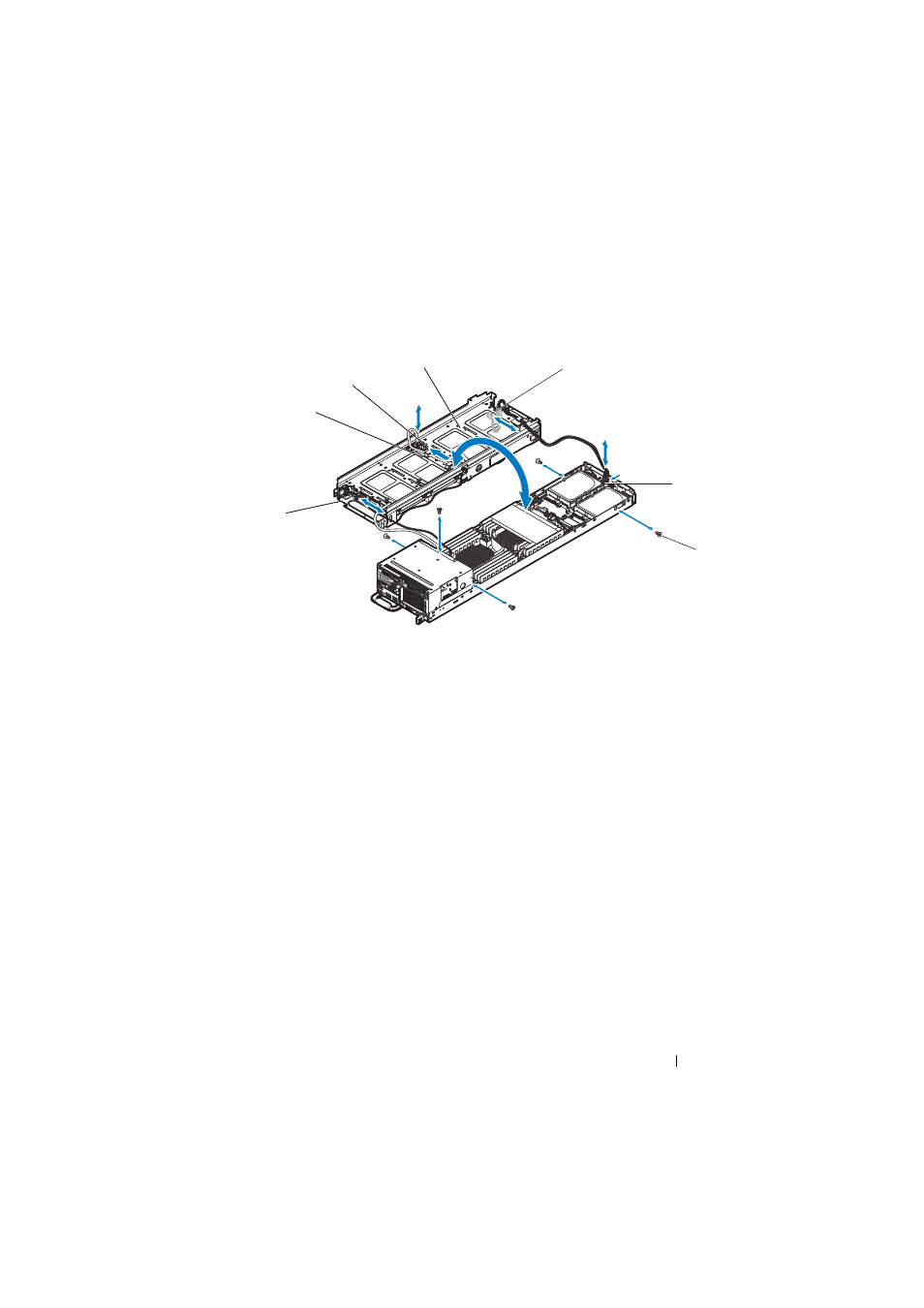

Figure 3-25. Removing and Installing a 4-Drive Bay Back Cover From a Sled with
Add-On Cards

1

cable retaining clip

2

mini-SAS cable

3

4-drive bay back cover

4

power cable on hard-drive backplane

5

power cable on NPDB

6

M3 screws (5)

7

hard-drive LED cable

3

1

2

6

4

5

7
