Installing System Components 275

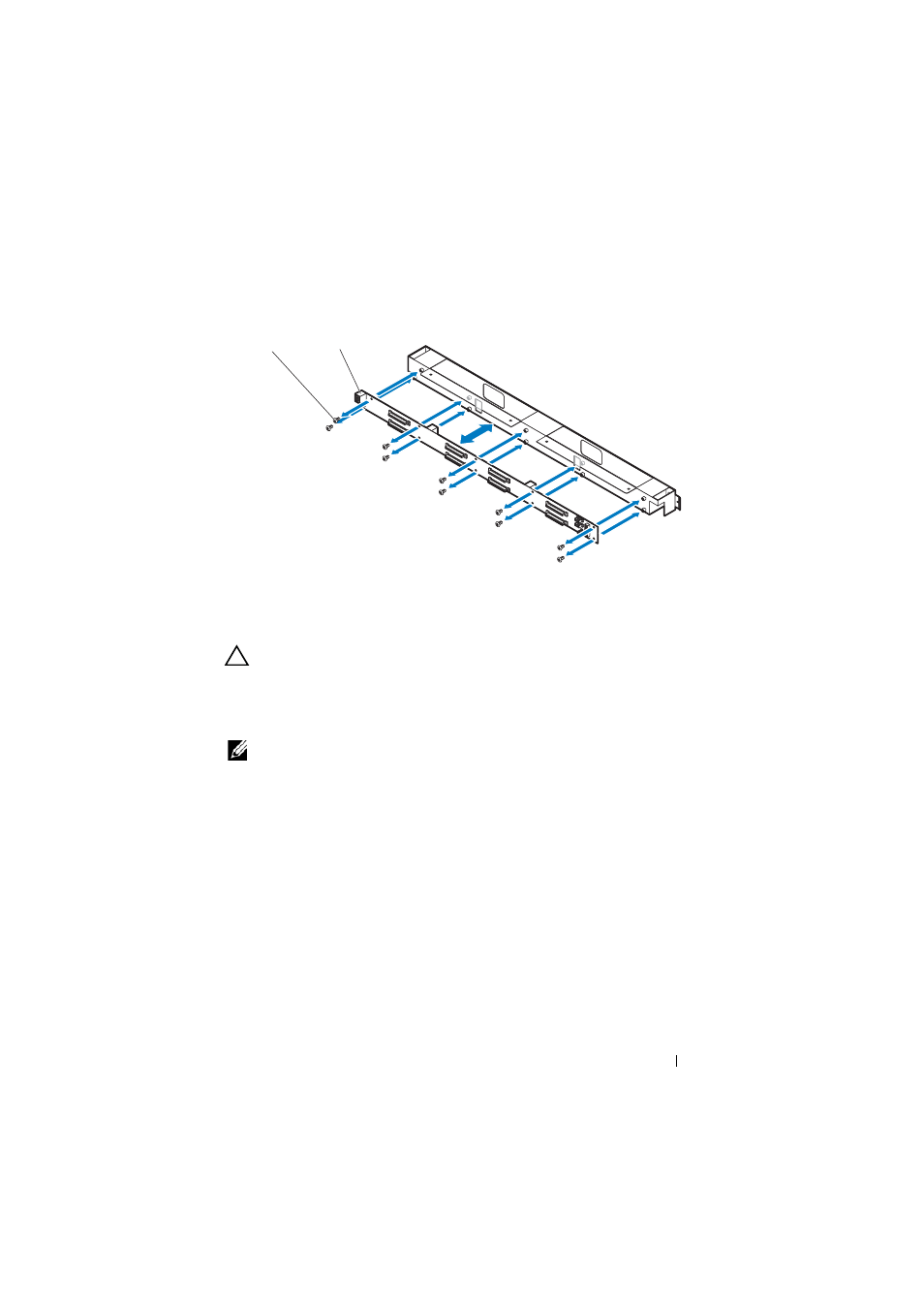

Figure 3-92. Removing and Installing the 2.5-inch Hard-Drive Backplane
Installing the 2.5-inch Hard-Drive Cage Backplane
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
NOTE: A hard-drive cage backplane must be installed in each sled to maintain
proper airflow, even when the sled is in a diskless configuration.
1 Align the 2.5-inch hard-drive cage backplane with the screw holes on the
hard-drive cage backplane assembly. See Figure 3-92.
2 Replace the ten screws securing the backplane to the hard-drive cage
backplane assembly. See Figure 3-92.
3 Install the 2.5-inch hard-drive cage backplane assembly into the hard-drive
cage. See Figure 3-91.
4 Replace the four screws securing the hard-drive cage backplane assembly
to the hard-drive cage. See Figure 3-91.
5 Replace the back sled cover. See "Installing the Front and Back Sled
Covers" on page 180.
6 Replace the sled. See "Installing a Sled" on page 156.
1 M3 screws (10) 2 2.5-inch hard-drive cage backplane
1 2
