Installing System Components 157
Installing a Double-Wide Sled Blank
Hold the blank with the guide rail facing forward. Slide the blank into the
enclosure until it is fully seated and the release latches snap into place.
See Figure 3-7.
Removing a Single-Wide Sled Blank
1 Pull up on the sled blank latch at the bottom of the sled to disengage the
sled from the server enclosure. See Figure 3-8.
2 Using the handle, slide the sled out of the enclosure. See Figure 3-8.

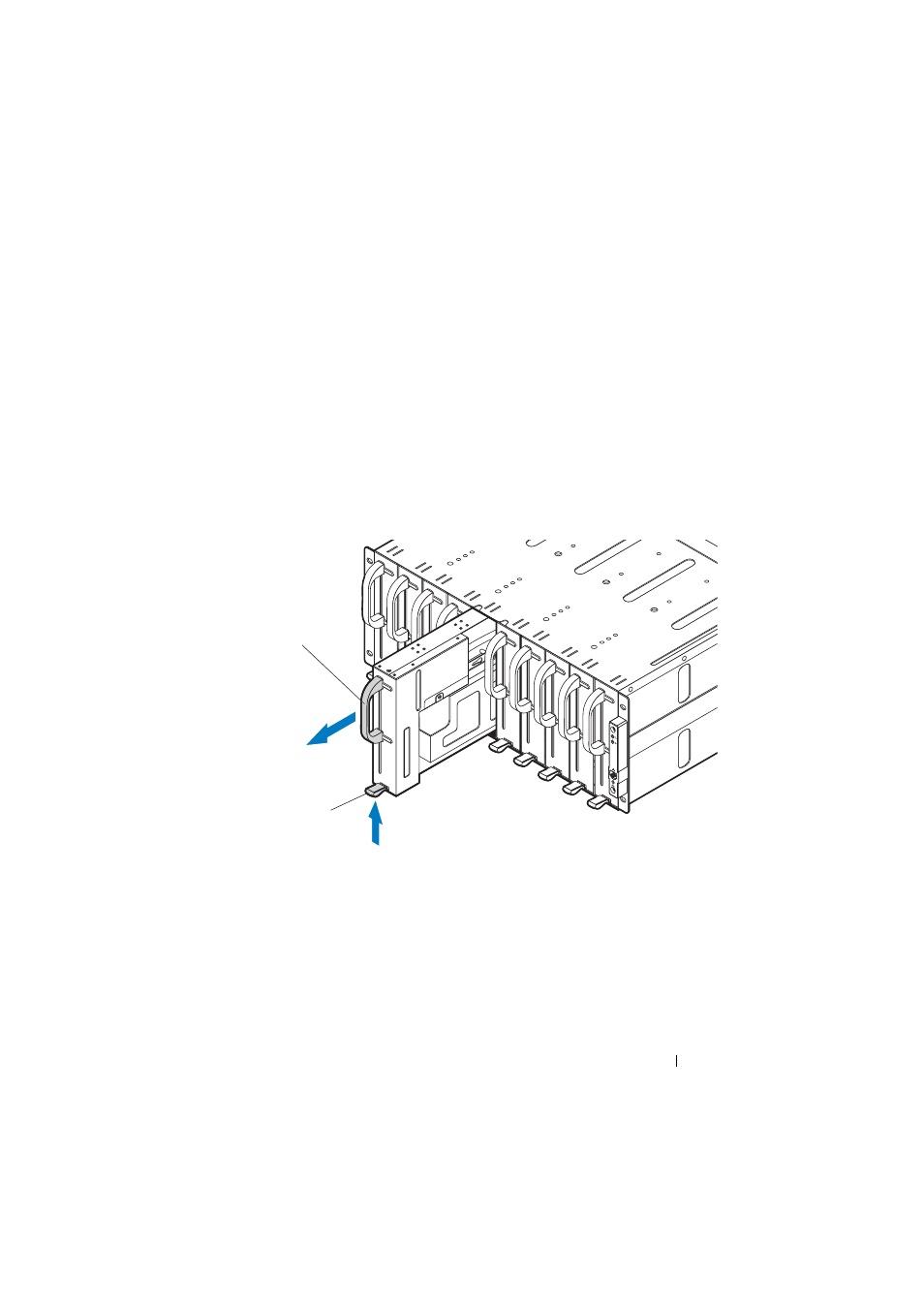

Figure 3-8. Removing and Installing a Single-Wide Sled Blank
Installing a Single-Wide Sled Blank
1 Orient the sled blank so that the release latch is in the bottom of the sled.
See Figure 3-8.
2 Slide the sled blank into the enclosure until the release latch snaps into
place. See Figure 3-8.
1 release latch 2 single-wide sled blank handle
