Installing System Components 279

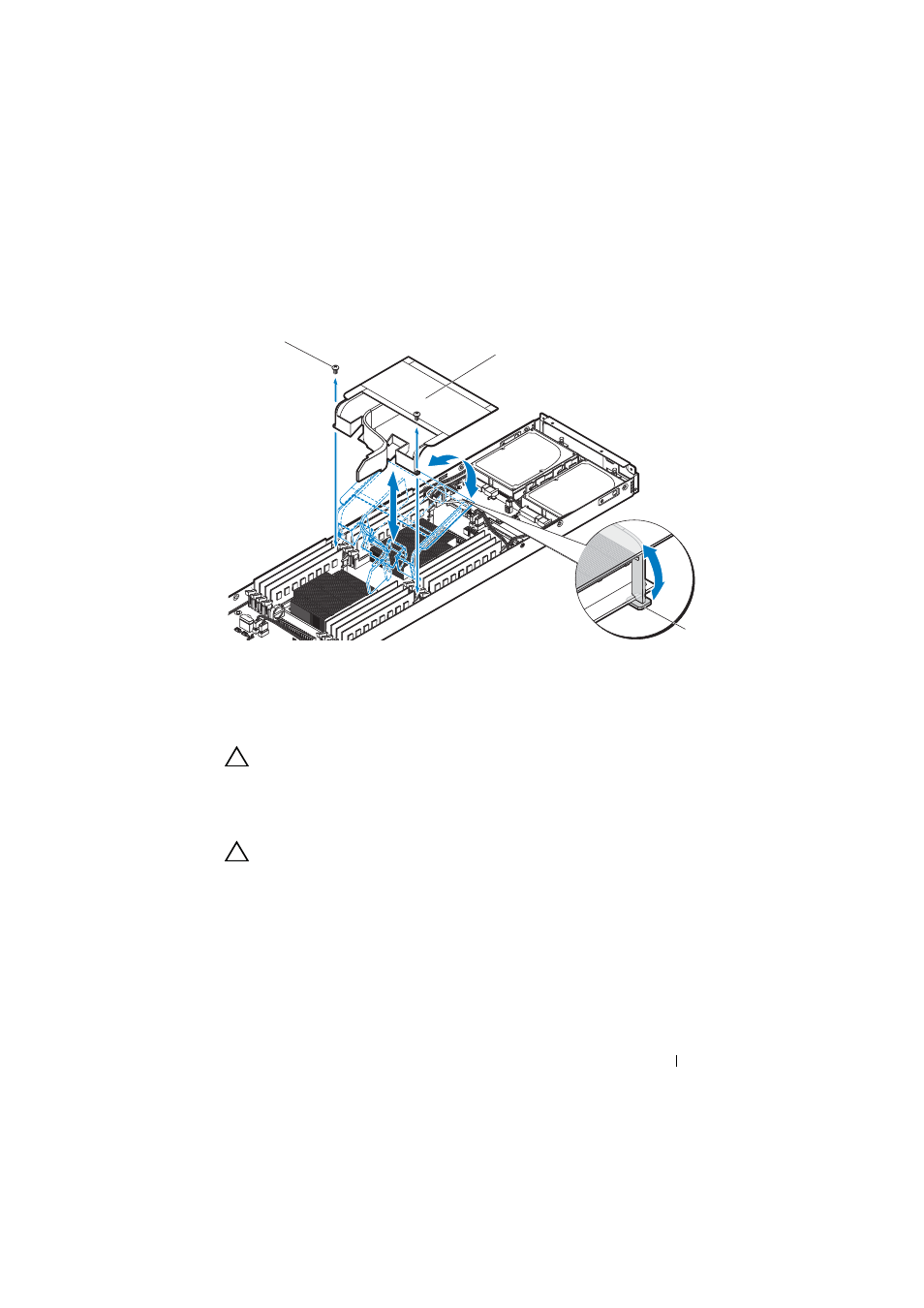

Figure 3-95. Removing and Installing the Cooling Shroud
Installing the Cooling Shroud
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
CAUTION: Never operate your system with the cooling shroud removed. The
system may get overheated quickly, resulting in shutdown of the system and loss of
data.
1 Lower the cooling shroud to the sled tray. See Figure 3-95.
2 Gently press the cooling shroud until the anchor tab snap securely into
place. See Figure 3-95.
1 M3 screws (2) 2 cooling shroud
3 anchor tab
1
2
3
