Dell PowerEdge C8000 User Manual
Page 219
Installing System Components
219
6 Remove the back NVIDIA Tesla M2090 GPGPU card.
a
Remove the two screws securing the air baffle. See Figure 3-53.
b
Lift the air baffle from the sled cover. See Figure 3-53.

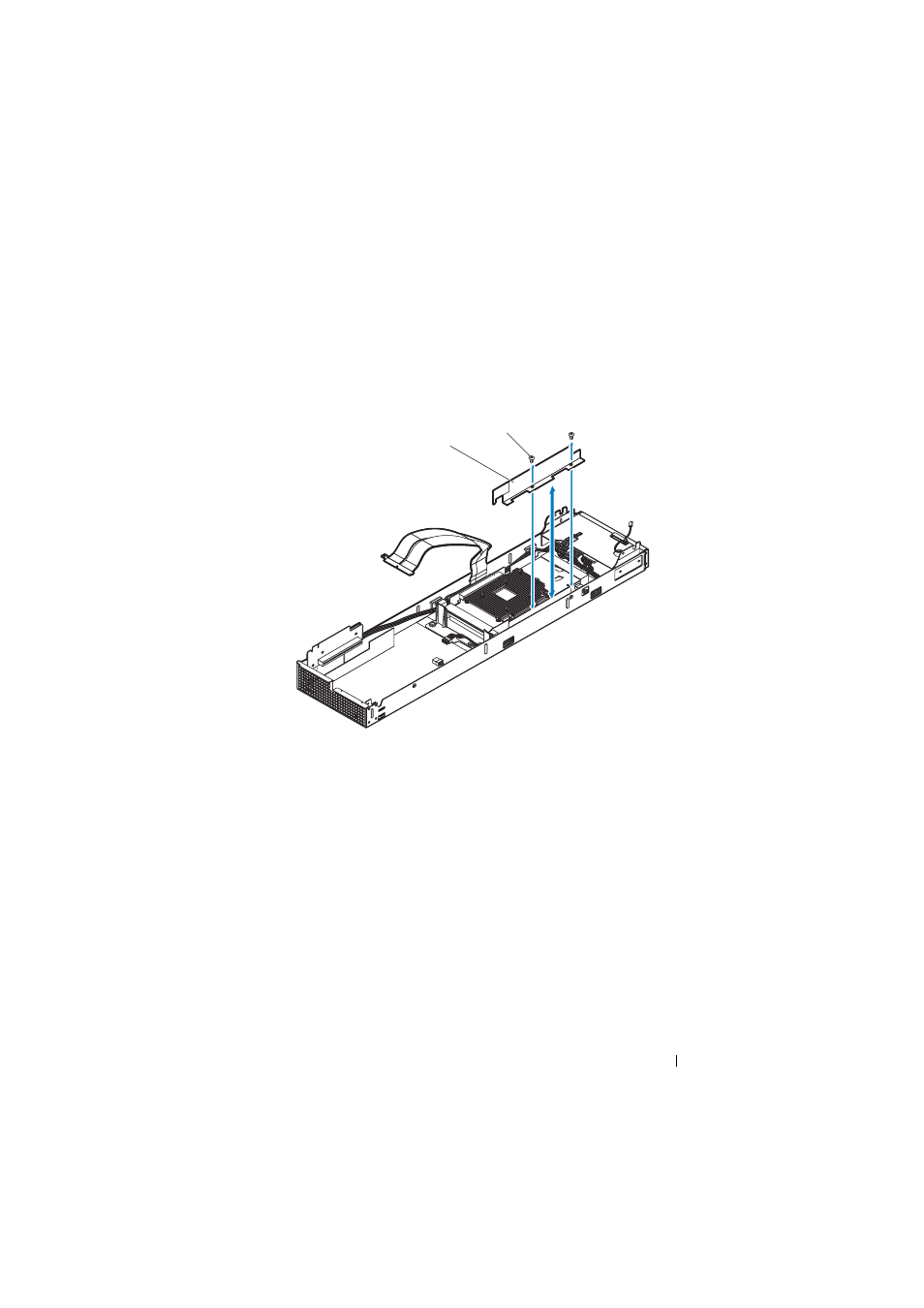

Figure 3-53. Removing and Installing the Air Baffle
1
left air baffle
2
M3 screws (2)
2
1
