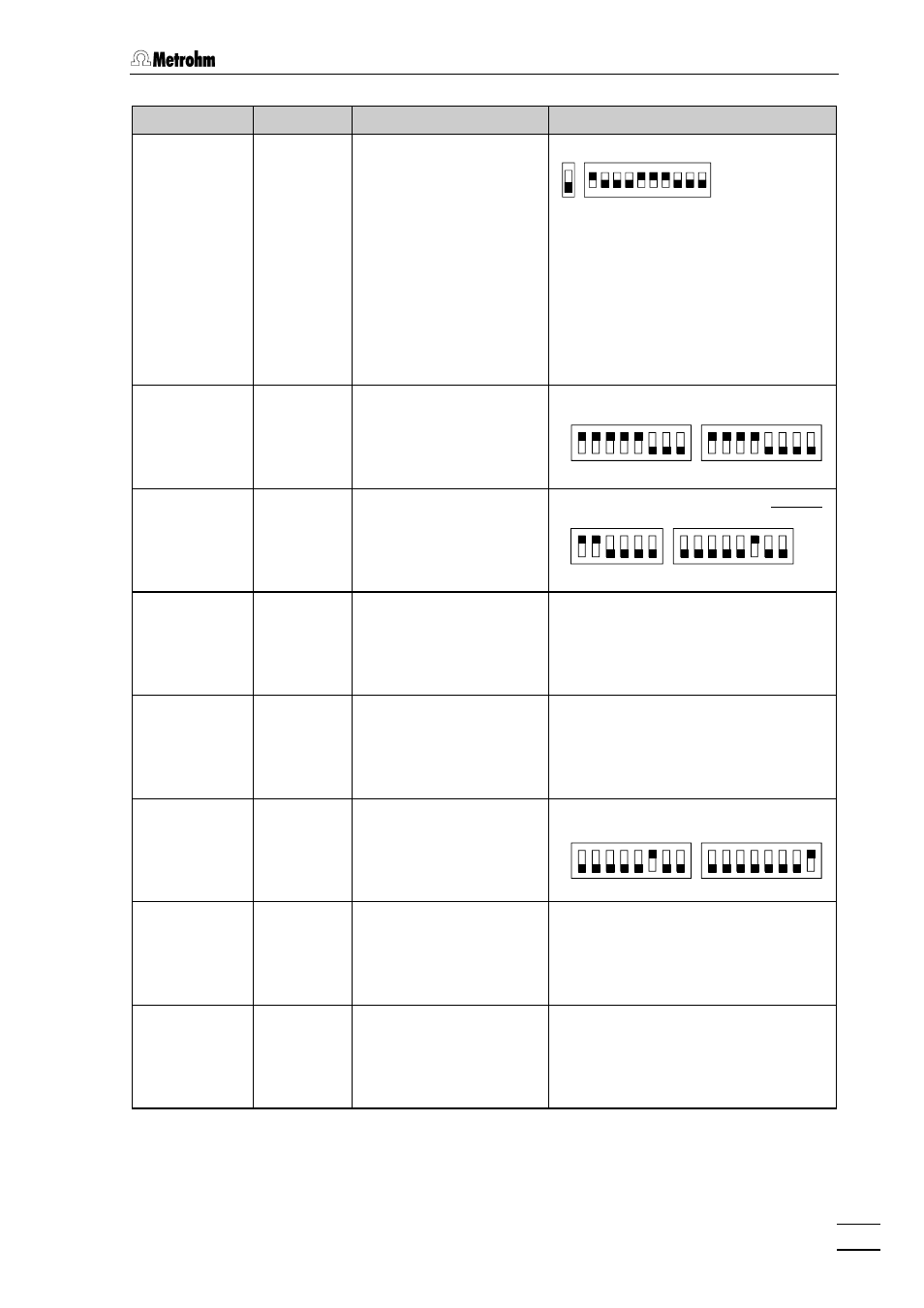

2.5 Connection of devices to the RS232 interface
766 IC Sample Processor
25
Printer
Cable
RS232 settings
Settings on printer
Citizen
IDP562-RS
6.2125.050
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set:Citizen
Settings of the DIP switches:
1
2
3
4
5
6
7
8
9
10
ON
SSW1
The switchable 7-bit ASCII character set of
the printer can be changed to the national
character sets only by setting Dip switch 4
and 5:
44
55
Character set
Character set
OFF
OFF
USA
ON
ON
Great Britain
ON
OFF
France
OFF
ON
Germany
Spanish does not have its own character set
(it is best to select French).
Epson
with 6-pin round
connector
6.2125.040
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: Epson
Settings of the DIP switches:
SW1
SW2
on
off
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Epson
with additional
serial interface
#8148
6.2125.050
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: Epson
Settings of the DIP switches on the interface:
SW1
SW2
on
off
1
2
3
4
5
6
7
8
1
2
3
4
5
6
Epson LX-300
6.2125.050
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: Epson
see printer manual
Epson and
Canon printers
with parallel
interface
6.2125.020
+
2.145.0300
serial/
parallel
converter
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: Epson
see printer manual
HP Deskjet
with serial
interface
6.2125.050
or adaptor
cable 25-pin
neg./9-pin
pos. (e.g. HP
C2933A)
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: HP
Settings of the DIP switches:
A
B
on
off
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
HP Laserjet
with serial
interface
Adaptor
cable 25-pin
neg./9-pin
pos. (e.g. HP
C2933A)
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: HP
see printer manual
HP Deskjet/
Laserjet
with parallel
6.2125.020
+
2.145.0300
serial/
parallel
converter
baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: HP
see printer manual
