2 Installation
766 IC Sample Processor
14
22
44
55
66
77
88

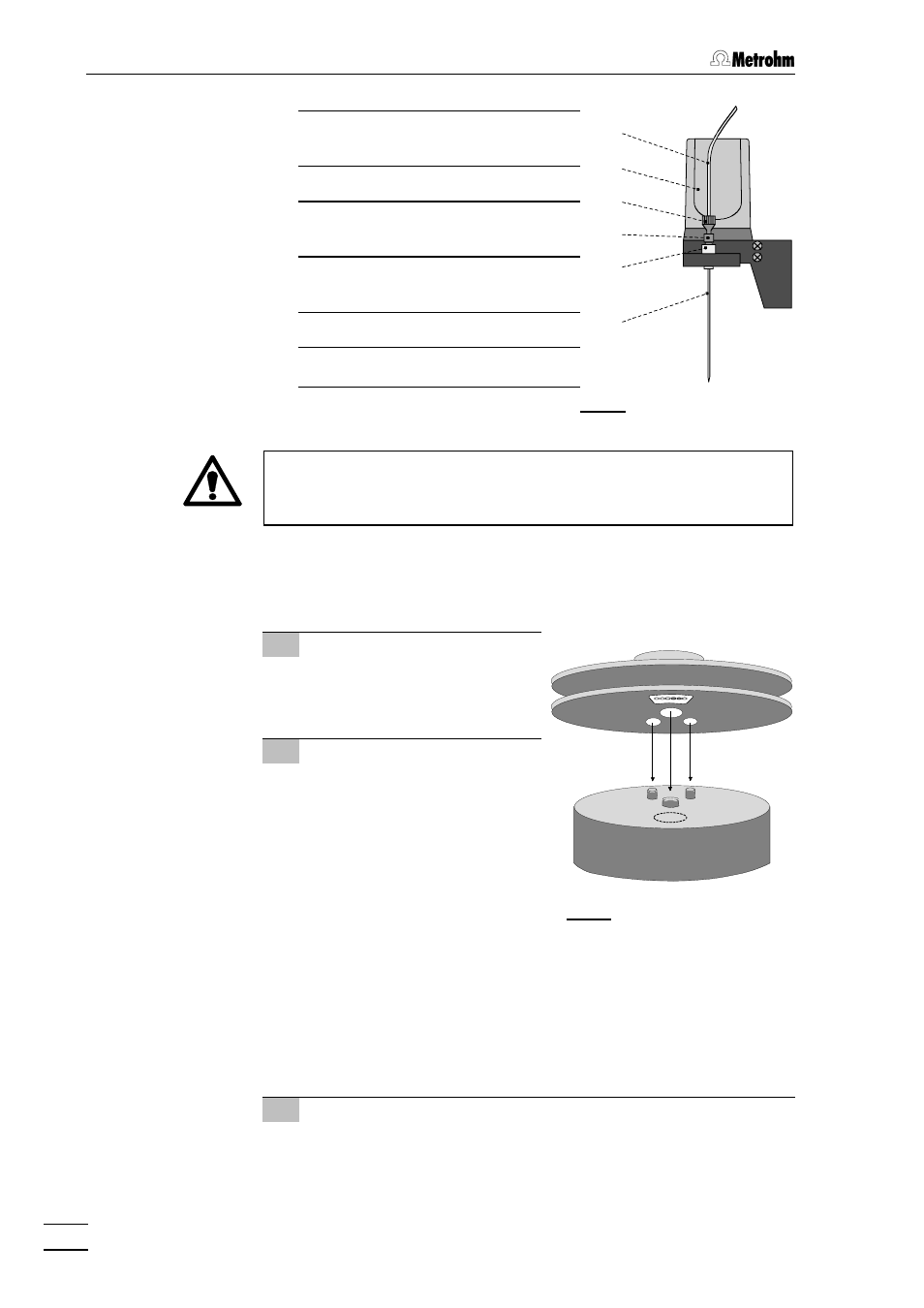

Fig. 6: Needle installation
If you are using the 6.1835.000 PEEK needle, the sample tubes may
not be sealed with caps because they cannot be pierced by the PEEK
needle and the needle may be damaged thereby.
2.3.6 Placing the sample rack
1
2
Place sample rack
Place sample rack 27
27 on the
turntable of the 766 IC Sample
Processor acc. to Fig. 7.
Read magnetic code
Press to move the
rack to the home position, in
which the magnetic code can
be read (details see section
4.5).
Fig. 7: Sample rack placing
2.3.7 Adjusting the sample rack
If a new sample rack is placed on the 766 IC Sample Processor for the
first time, it must be adjusted on a rack position in the middle row
(example: position 37) as follows:
1 Place sample rack
Place empty sample rack 27 27 on the 766 IC Sample Processor
and press (see section 2.3.6).
22 Steel needle (6.2624.000) or
PEEK needle (6.1835.000)
44 Needle holder
55 PEEK compression fitting
(4.766.4030)
66 PEEK compression fitting
(6.2744.010)
77 Swing head
88 PEEK capillary (6.1831.050)
