2.4 Connection of devices to the remote interface
766 IC Sample Processor
21
2.4.5 IC system with suppression with PC as "Master"
The 766 IC Sample Processor is connected to an IC system with sup-
pression consisting of 732 IC Detector, 733 IC Separation Center, 709
IC Pump and either 752 Pump Unit or 753 Suppressor Module as
shown in Fig. 13 using the 6.2125.120 adaptor. With this interconnec-
tion, in which the PC is the "Master", the standard methods
'PC'
,
'PC Seg'
and
'Preconc'
can be used (see section 4.6).
732
733
709
766
753
752

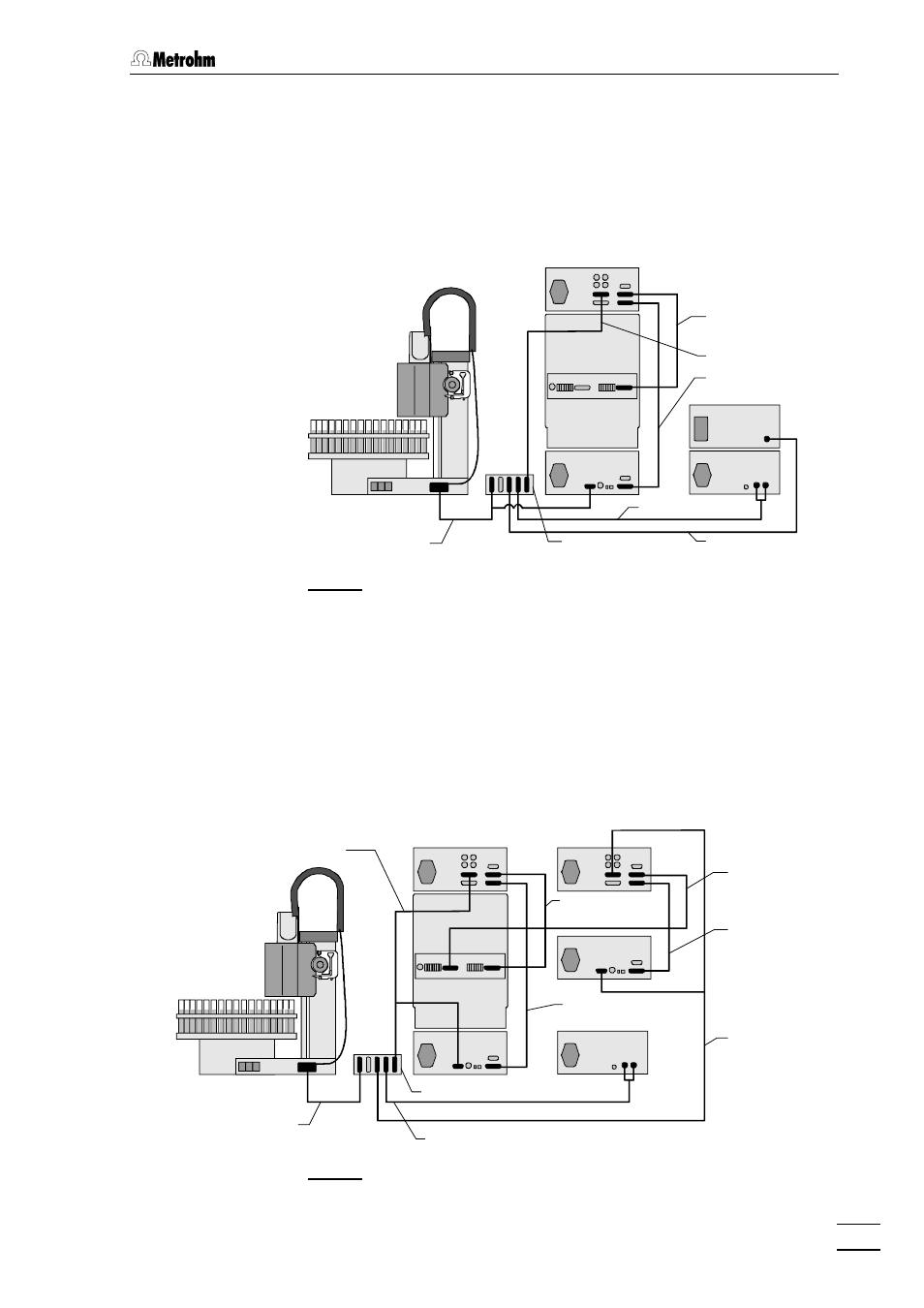

Fig. 13: Interconnection with IC system with suppression with
PC as "Master"
2.4.6 IC system for simultaneous anion/cation
determination
The 766 IC Sample Processor is connected to an IC system for simul-
taneous determination of anions and cations consisting of two 732 IC
Detectors, the 733 IC Separation Center, two 709 IC Pumps and (if
suppression is used) the 753 Suppressor Module as shown in Fig. 14
using the 6.2125.120 adaptor. With this interconnection the standard
methods
'AnCat'
and
'AnCatSeg'
can be used (see section 4.6).
732/1
733
709/1
766
753
732/2
709/2
Fig. 14: Interconnection for anion/cation system
6.2125.090 cable
6.2125.090 cable
6.2125.060 cable
6.2125.060 cable
6.2125.090 cable
6.2125.120 adaptor
6.2125.120 adaptor
6.2143.200 cable
6.2143.210 cable
6.2141.110 cable
6.2125.090 cable
6.2125.090 cable
6.2125.060 cable
6.2141.120 cable
6.2141.110 cable
6.2143.210 cable
