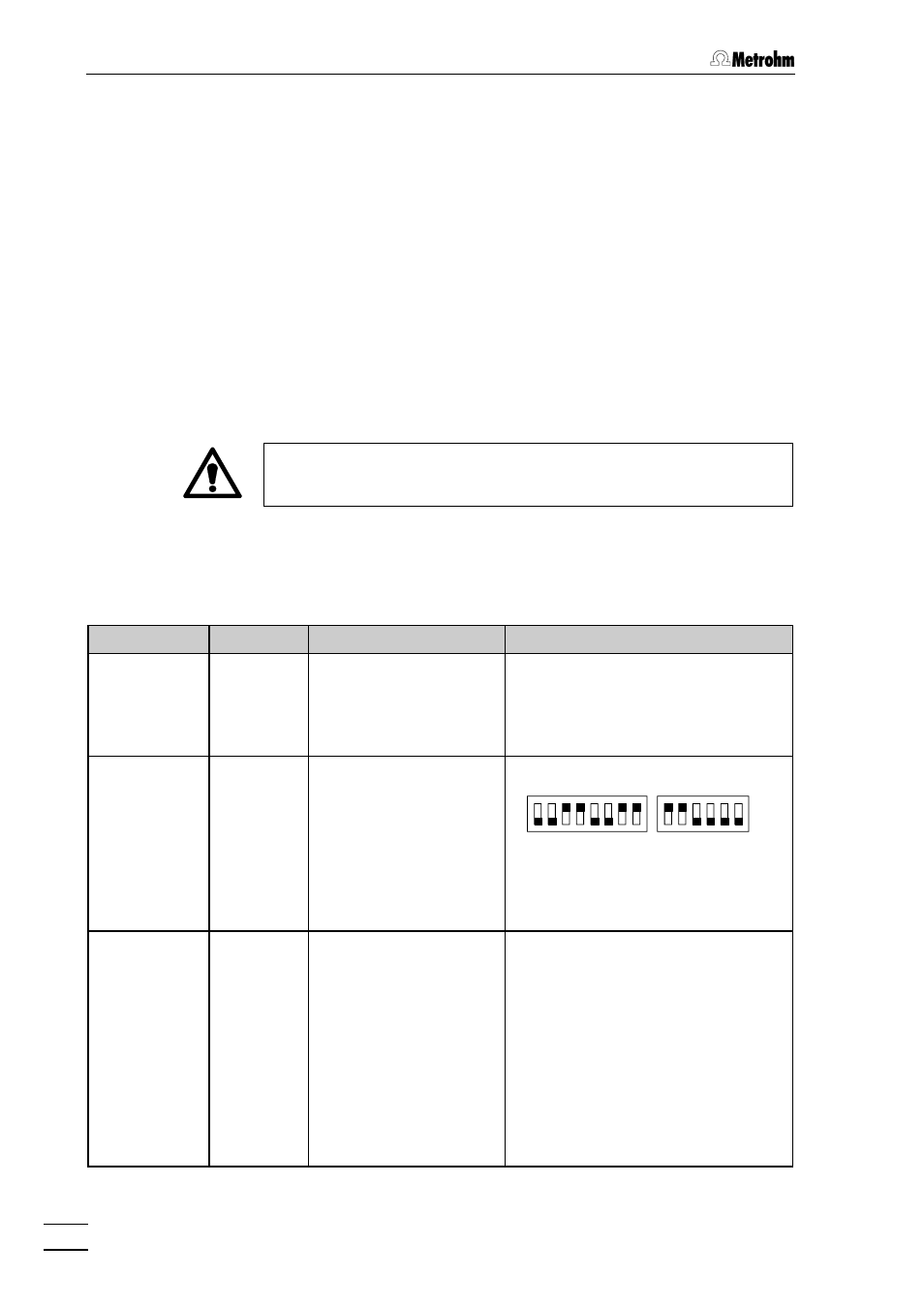

2.5.2 Connection of a printer
Printers with the following printer drivers may be connected:
IBM IBM Proprinter and printers with IBM emulation
Epson Epson printers and printers with Epson emulation
Seiko Seiko printers DPU-411 and DPU-414
Citizen Citizen printer IDP562-RS
HP
HP printers and compatibles with HP PCL3 emulation
If you connect other printers, ensure that these emulate a printer mode
supported by the 766 IC Sample Processor.
Most printers with a serial interface are connected using the 6.2125.050
Cable. Printers with a parallel interface need a serial/parallel converter
(e.g. 2.145.0300) and the 6.2125.020 Cable.
Before connecting a printer to the RS232 interface, switch off the 766
IC Sample Processor !
The interface parameters are set in the configuration submenu " >RS232
settings ".
The following table provides information on a few selected printers.
Printer Cable RS232 settings Settings on printer
IBM Proprinter 6.2125.050 baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: IBM
see printer manual
Seiko
DPU-411 6.2125.020 baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: Seiko
Settings of the DIP switches:
DIP01 DIP02
on
off
1 2 3 4 5 6 7 8 1 2 3 4 5 6
The switchable 7-bit ASCII character set of
the printer will be automatically set by the
732 IC Detector to the national character
sets in accordance with the set dialog
language.
Seiko
DPU-414 6.2125.130 baud rate: 9600
data bit: 8
stop bit: 1
parity: none
handshake: Hws
character set: Seiko
Settings of the DIP switches:
Dip SW-1 Dip SW-1 Dip SW-2 Dip SW-2 Dip SW-3 Dip SW-3
11 OFF ON ON
22 ON OFF ON
33 ON ON ON
44 OFF ON ON
55 ON ON OFF
66 OFF ON ON
77 ON OFF ON
88 ON OFF ON
The switchable 7-bit ASCII character set of
the printer will be automatically set by the
732 IC Detector to the national character
sets in accordance with the set dialog
language.
