2.3 Attaching the accessories
For attaching the accessories at the 766 IC Sample Processor, pro-
ceed in the order described below.
2.3.1 Connecting the swing head
Plug in the branch plug of the connection cable 21 21 permanently at-
tached to the swing head into the remote connection socket at the 766
IC Sample Processor and screw it onto this connection using a screw-
driver (see Fig. 1).
2.3.2 Connecting the keyboard
1
2
Connecting the keyboard
Connect the 6.2142.010 keyboard
to the keyboard connection 31 31
"Keyboard". For disconnection,
press the plug together slightly on
both sides.
Switch on instrument
Switch on the 766 IC Sample
Processor with mains switch 26 26.
The keyboard display lights up.
The instrument is initialized and
the lift is raised completely.

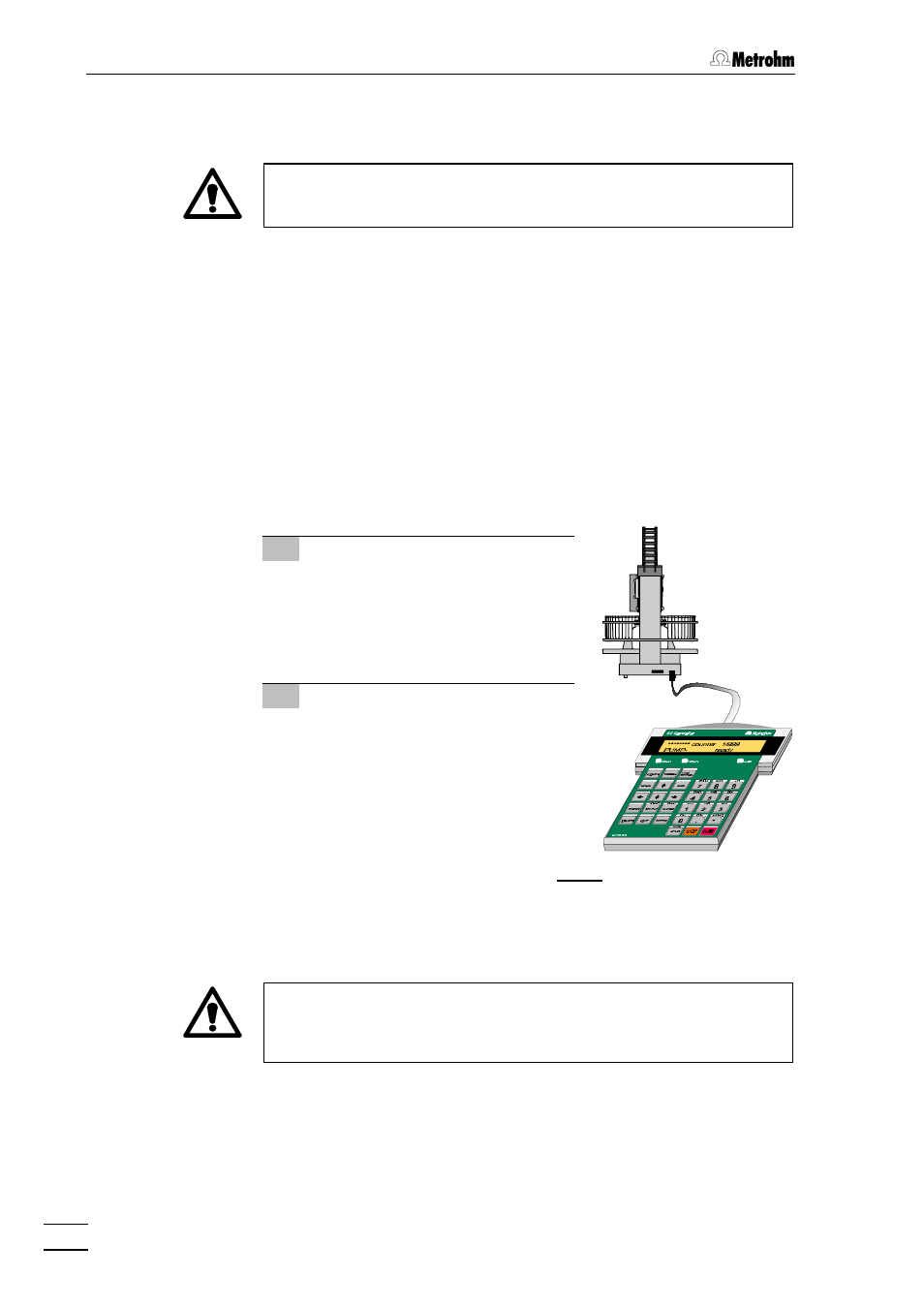

Fig. 4: Keyboard connection
2.3.3 Installing the plug cover
To prevent any contamination of the mains and remote connection by
spilled solvents or chemicals, the 6.2752.010 plug cover must always
be installed when operating the 766 IC Sample Processor !
Install the plug cover 23 23 in the corresponding guide groove above
mains connection plug 25 25 and remote connection 22 22 (see Fig. 1 and
Fig. 2).
