2.2 Mains connection
766 IC Sample Processor
11
26 26
25 25
24
24
220
-- 240 V
100
-- 120 V
220
-- 240 V
100
-- 120 V

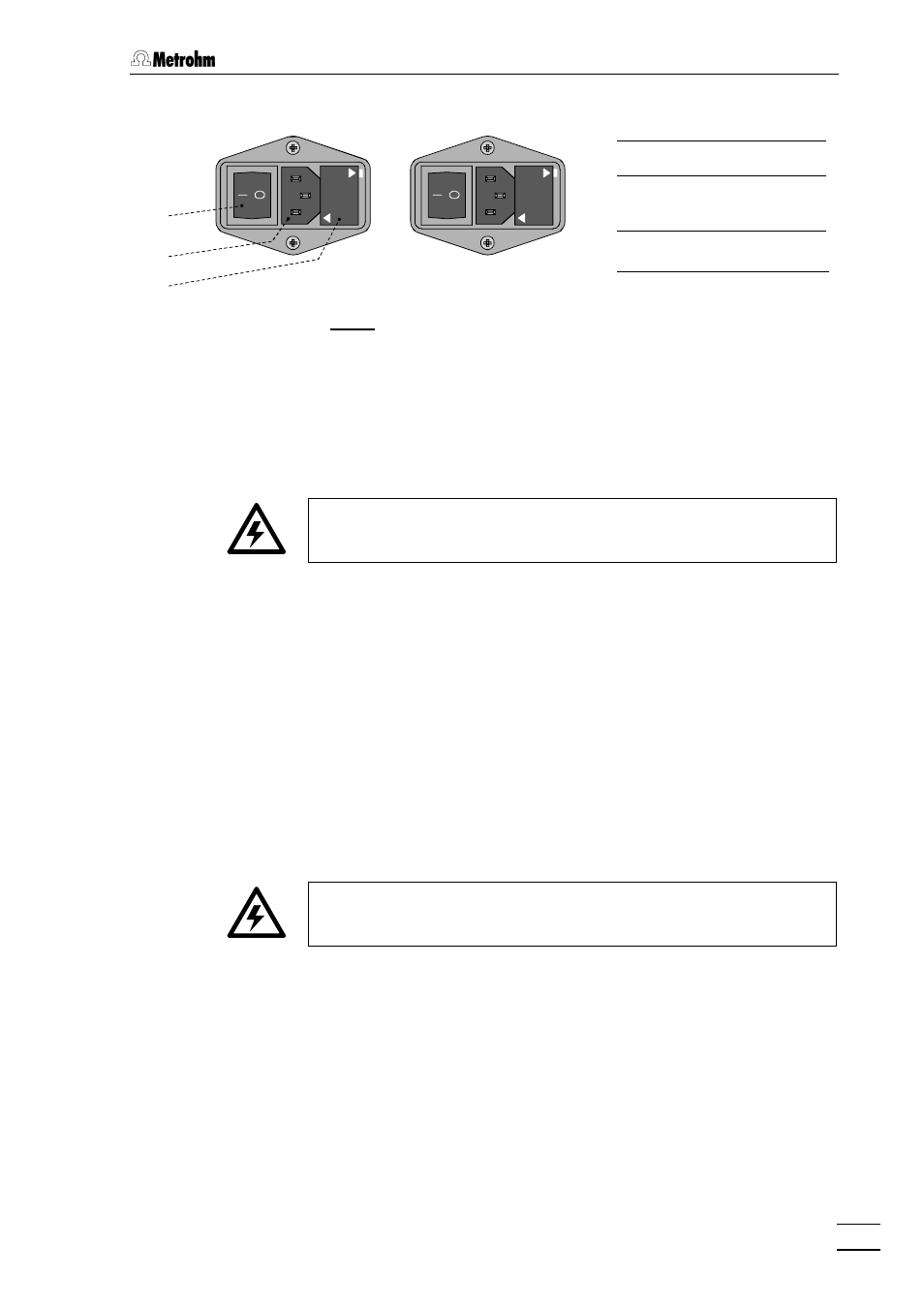

Fig. 3: Setting the mains voltage
2.2.2 Fuses
One of the two fuses 0.5 A/slow-blow for 100 … 120 V or 0.25 A/slow-
blow for 220 … 240 V is installed in fuse holder 24 24 of the 766 IC Sample
Processor as standard.
Ensure that the instrument is never put into operation with fuses of
another type, otherwise there is danger of fire!
For checking or changing fuses, proceed as described in section 2.2.1.
2.2.3 Mains cable and mains connection
Mains cable
The instrument is supplied with one of three mains cables
• 6.2122.020 with plug SEV 12 (Switzerland, … )
• 6.2122.040 with plug CEE(7), VII (Germany, … )
• 6.2133.070 with plug NEMA 5-15 (USA, … )
which are three-cored and fitted with a plug with an earthing pin. If a
different plug has to be fitted, the yellow/green lead (IEC standard)
must be connected to protective earth (protection class 1).
Any break in the earthing inside or outside the instrument can make it
a hazard!
Mains connection
Plug the mains cable into mains connection plug 25 25 of the 766 IC
Sample Processor (see Fig. 3).
2.2.4 Switching the instrument on/off
The 766 IC Sample Processor is switched on and off using mains
switch 26 26.
220 – 240 V 100 – 120 V
24 24 Fuse holder
25 25 Mains connection
plug
26 26 Mains switch
