2 Installation
766 IC Sample Processor
18
2.3.9 Tubing connections 766 – 754
If the 766 IC Sample Processor is used for an IC system with sample
dialysis (see section 2.4.6), the peristaltic pump at the 754 Dialysis Unit
is used for sample conveying instead of the pump at the 766 IC Sample
Processor. The tubing connections between the 754 Dialysis Unit 754
and the 733 IC Separation Center 733 have to be made as shown in
Fig. 8 of the 754 Instruction for Use. The only change concerns the inlet
of the sample, which is installed as follows:
Install a PEEK compression fitting 6.2744.010 on the inlet end of the
PTFE tubing 26 26 (6.1803.030, see Fig. 8 of the 754 Instruction for Use)
connected to the 754 Dialysis Unit and screw it on the PEEK compres-
sion fitting 55 (see Fig. 6).
2.3.10 Fixing tubing and cables
In order to fix tubing or cables in
the guide chain 99 any chain link
may be opened with a screw
driver or another appropriate tool.

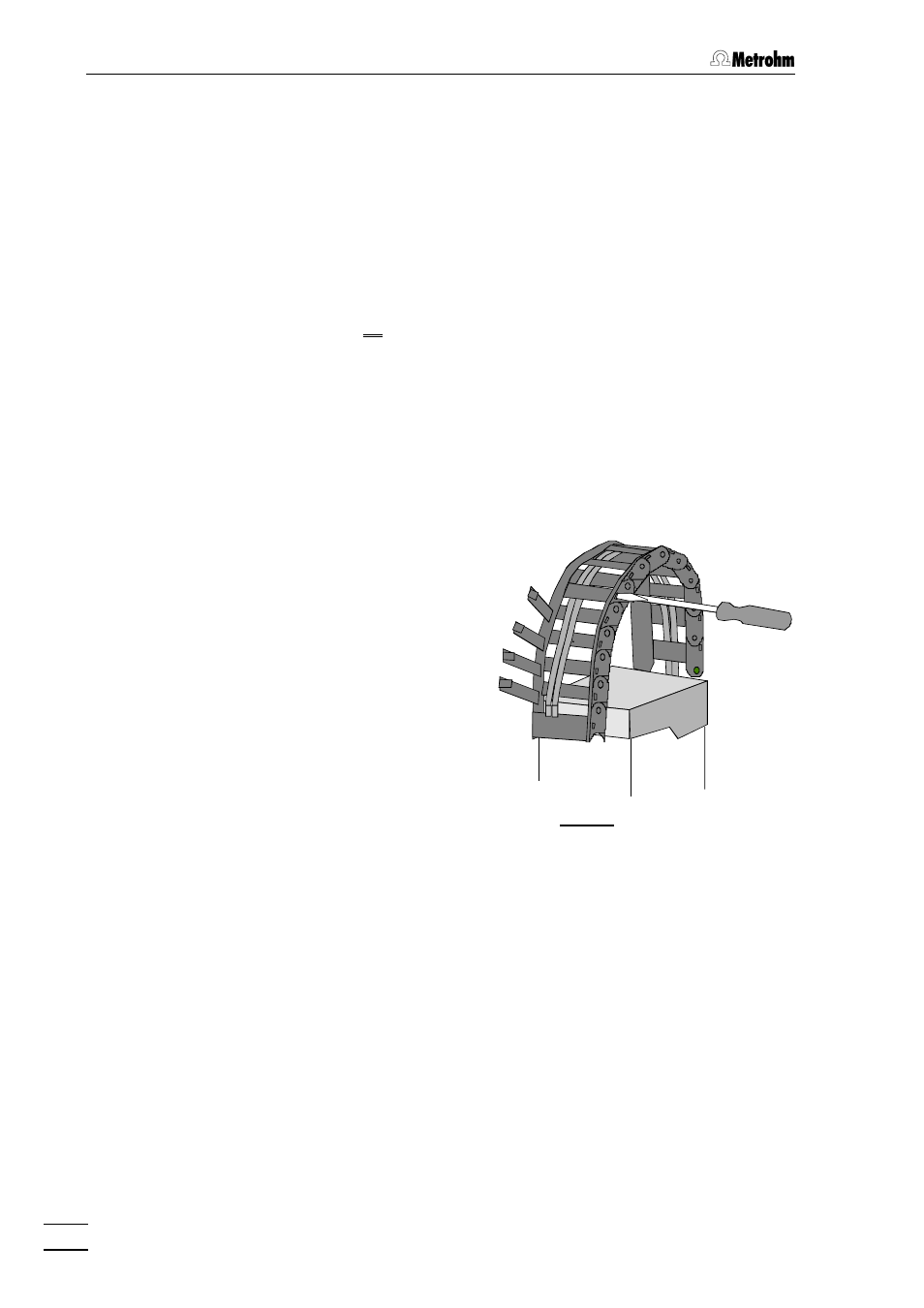

Fig. 10: Opening chain links
