5 Interfaces
766 IC Sample Processor
106

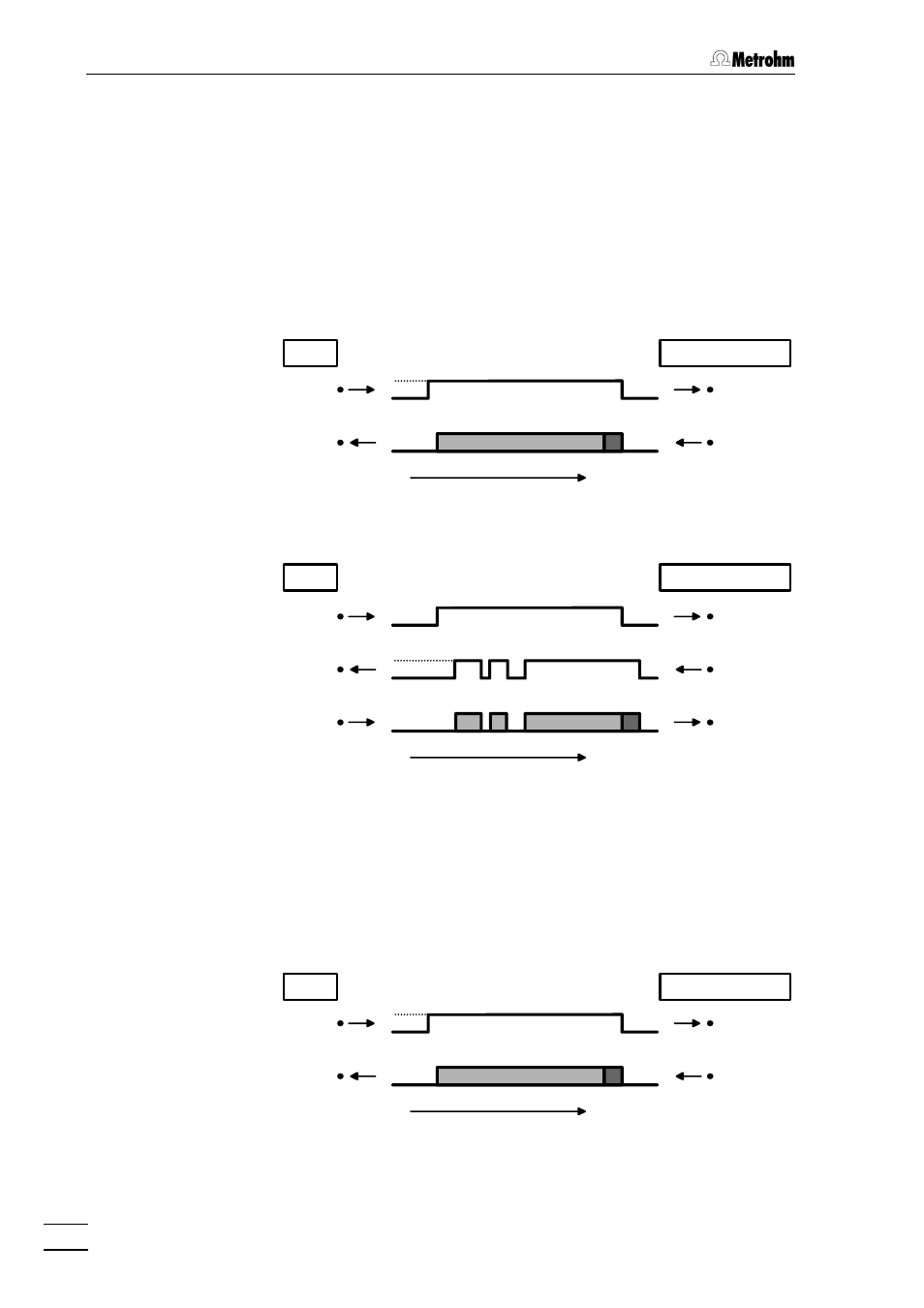

5.2.8 Handshake
No Handshake (none)
The 766 IC Sample Processor neither checks handshake inputs (CTS,
DSR, DCD) nor sets handshake outputs (DTR, RTS).
Reduced hardware handshake (HWs)
766 IC Sample Processor as receiver:
LF
DTR
RxD
DTR
RxD
766 IC Sample Processor as sender:
LF
RTS
CTS
TxD
RTS
CTS
TxD
The data flow can be interrupted by deactivating the CTS line.
Full hardware handshake (HWf)
All handshake inputs are checked, all handshake outputs are set.
766 IC Sample Processor as receiver:
LF
DTR
RxD
DTR
RxD
Time
External device 766
Time
Time
External device
External device
766
766
