2.4.7 IC system with sample dialysis
The 766 IC Sample Processor is connected to an IC system with sam-
ple dialysis consisting of 732 IC Detector, 733 IC Separation Center,
709 IC Pump, 754 Dialysis Unit and (if suppression is used) the 753
Suppressor Module as shown in Fig. 15 using the 6.2125.120 adaptor.
With this interconnection the standard method
'Dialysis'
can be used
(see section 4.6). If no suppression is used, the 754 Dialysis Unit can
be connected to the 6.2125.120 adaptor using the 6.2143.200 cable.
732
733
709
766
753
754

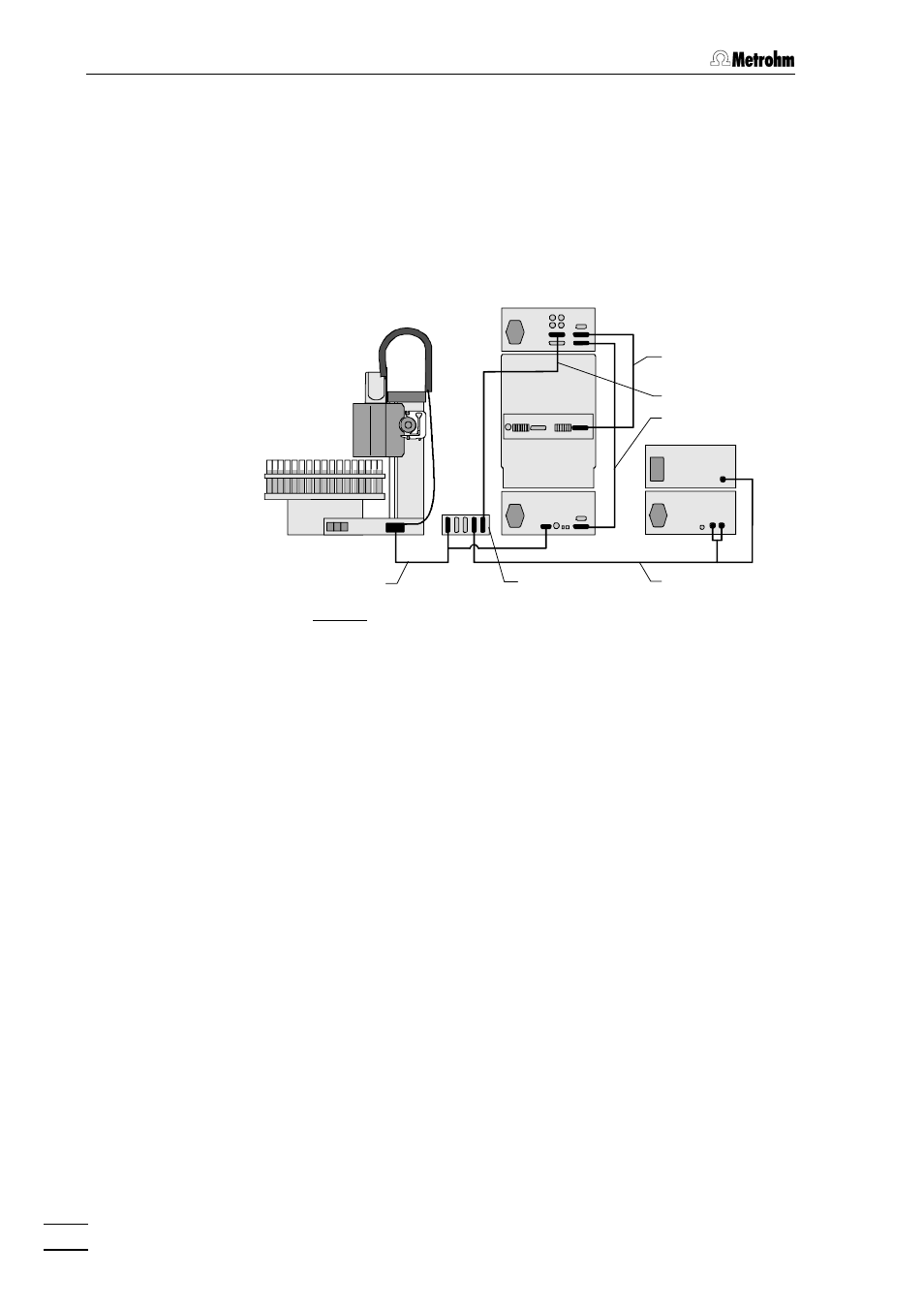

Fig. 15: Interconnection with IC system with dialysis
6.2125.090 cable
6.2125.060 cable
6.2125.090 cable
6.2125.120 adaptor 6.2143.220 cable 6.2141.110 cable
