2.4 Connection of devices to the remote interface
766 IC Sample Processor
19
2.4 Connection of devices to the
remote interface
2.4.1 General information on remote interface
The branch plug of cable 21 21 leading from the swing head (see Fig. 1) is
plugged into the 25 pin remote interface (see section 2.3.1). Any exter-
nal devices can be connected to remote connection 22 22 of this branch
plug. The 766 IC Sample Processor can be remote controlled via the 8
input lines, the 14 output lines can be used to control external devices.
Before an external device is connected to remote connection 22 22, the
766 IC Sample Processor must always be switched off using mains
switch 26 26!
The pin assignment of the remote interface, its functions, the electrical
requirements and conditions are described in section 5.1.
2.4.2 Connection cables
Connecting peripheral instruments to the 766 IC Sample Processor re-
quires Metrohm cables. Otherwise a safe data transmission may not be
guaranteed.

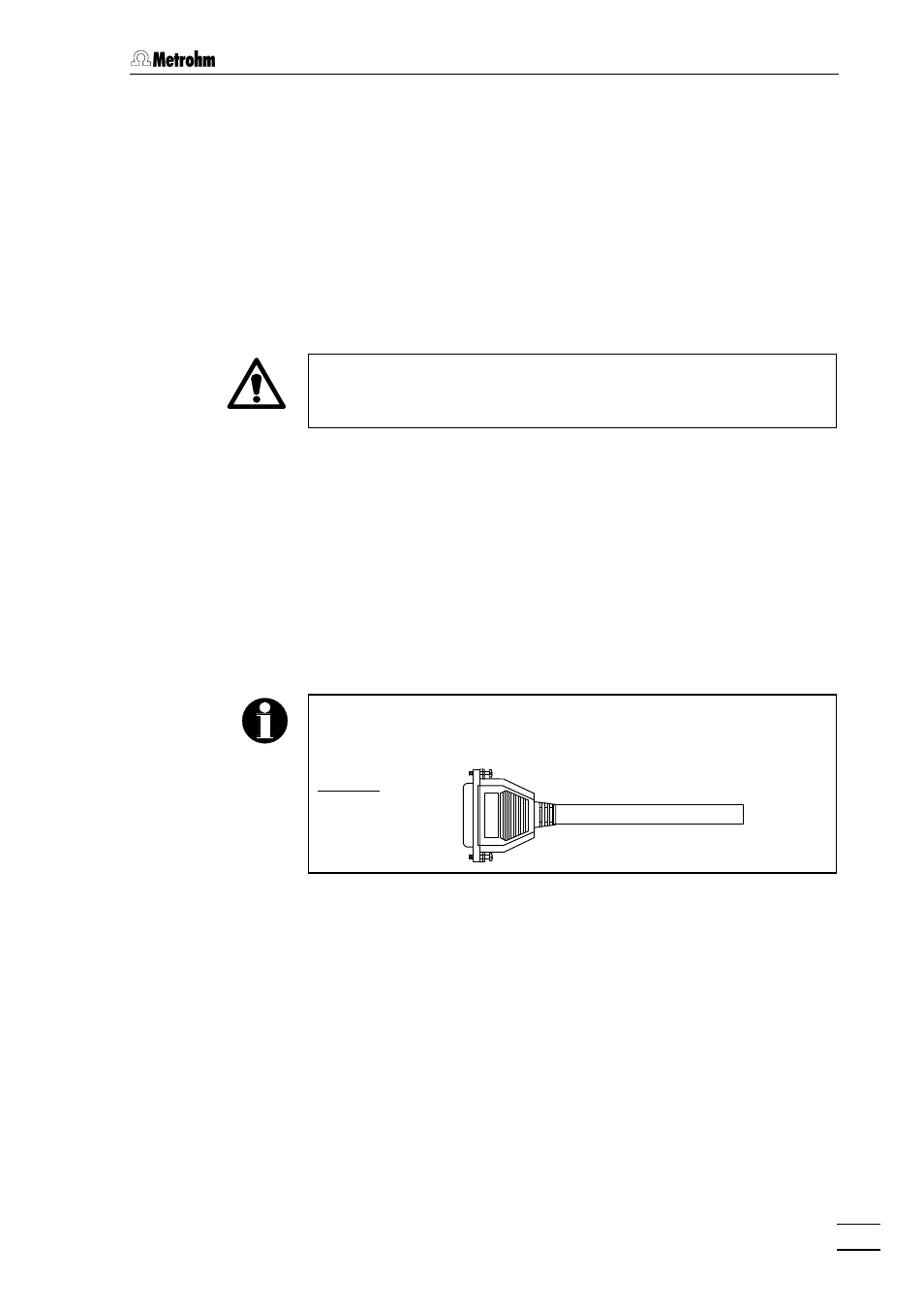

Metrohm cables are labeled with the type of the instrument which they
may be connected with and optionally with the particular socket. Mind
the cable ends.
Example:
732/1 Remote
