Chapter 1 Detailed Drive Operation

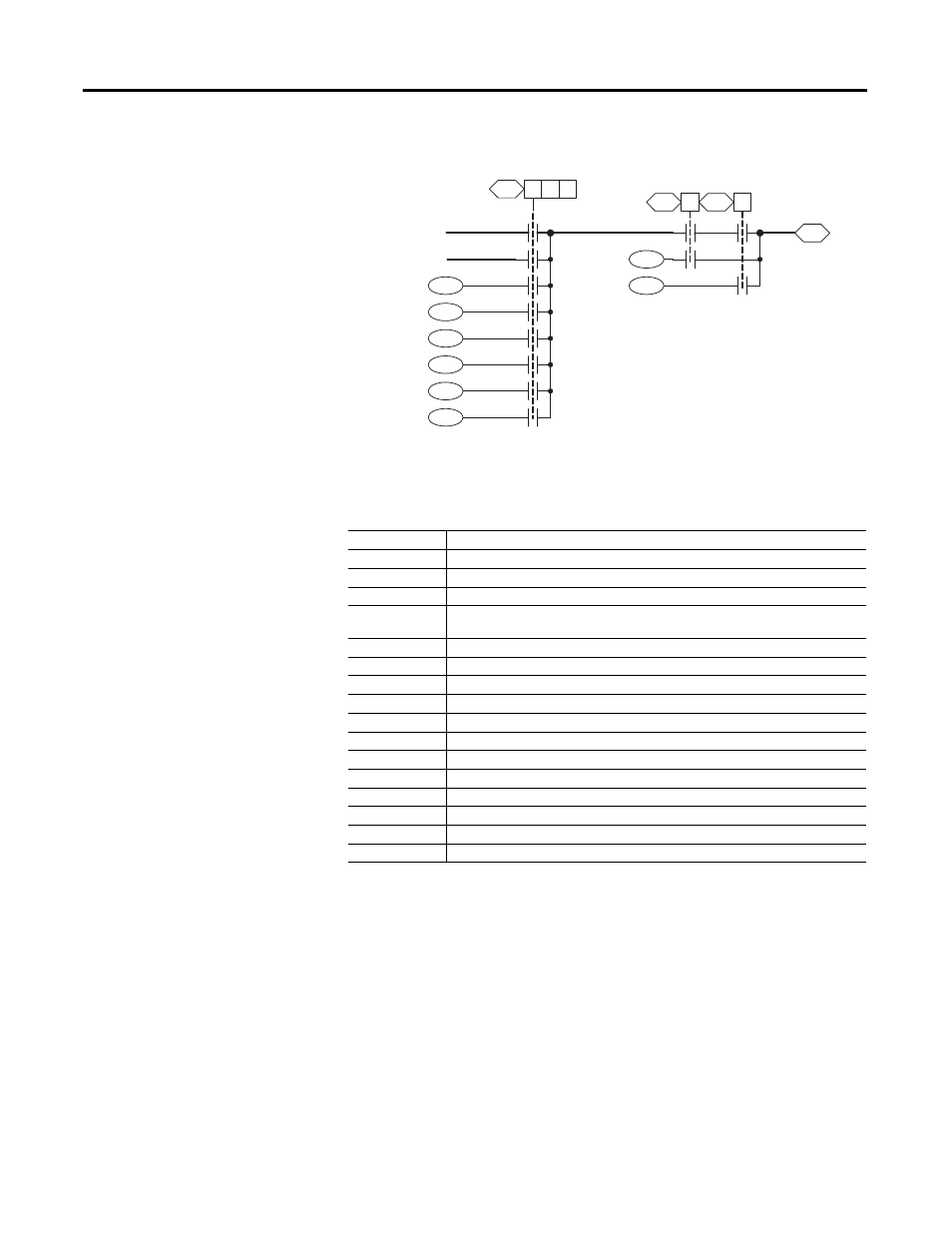

Figure 23 - Selected Speed Reference
Parameter 27 [Speed Ref A Sel] and parameter 28 [Speed Ref B Sel] determine
the source of Reference A and B. Parameter 27 and 28 can be set to the following
values:
Speed Reference Scaling
Parameter 10 [Speed Ref 1] and parameter 12 [Speed Ref 2] are real parameters
with units of per unit, where a value of 1 per unit equals base motor speed. Speed
reference 1 and 2 each have their own scaling blocks. The speed reference value in
parameter 10 [Speed Ref 1] is divided by the scaling value set in parameter 11
[Spd Ref1 Divide]. The speed reference value for parameter 12 [Speed Ref 2] is
multiplied by the scaling parameter 13 [Spd Ref2 Multi].
Setting
Description
0 - Zero Speed
Zero Speed is selected as the speed reference.
1 - Speed Ref 1
Parameter 10 [Speed Ref 1] is selected as the speed reference
2 - Speed Ref 2
Parameter 11 [Speed Ref 2] is selected as the speed reference
3 - Sum Sref 1+2
The sum of [Speed Ref 1] and [Speed Ref 2] is selected as the speed reference.
Note that there is no “Speed Ref 3” parameter
4 - MOP Level
Speed reference from motor operated pot, parameter 1090 [MOP Level Real].
5 - Preset Spd 1
Parameter 14 [Preset Spd 1] is selected as the speed reference
6 - Preset Spd 2
Parameter 15 [Preset Spd 2] is selected as the speed reference
7 - Preset Spd 3
Parameter 16 [Preset Spd 3] is selected as the speed reference
8 - Preset Spd 4
Parameter 17 [Preset Spd 4] is selected as the speed reference
9 - Preset Spd 5
Parameter 18 [Preset Spd 5] is selected as the speed reference
10 - Preset Spd 6 Parameter 19 [Preset Spd 6] is selected as the speed reference
11 - Preset Spd 7 Parameter 20 [Preset Spd 7] is selected as the speed reference
12 - DPI Port 1
The speed reference comes from local drive mounted HIM
13 - DPI Port 2
The speed reference comes from the external DPI communication module
14 - DPI Port 3
The speed reference comes from the auxiliary external DPI communication module
16 - DPI Port 5
The speed reference comes from the internal DPI communication module
29
40
Jog Speed 2
39
Jog Speed 1
Applied LogicCmd
Selected Speed Ref
0
1
2
3
4
5
6
7
15
16
17
18
19
20
152
18
152
23
0
1
1
0
29 30
152
28
Applied LogicCmd
Preset Speed 2
Speed Reference A
Speed Reference B
Preset Speed 3
Preset Speed 4
Preset Speed 5
Preset Speed 6
Preset Speed 7
