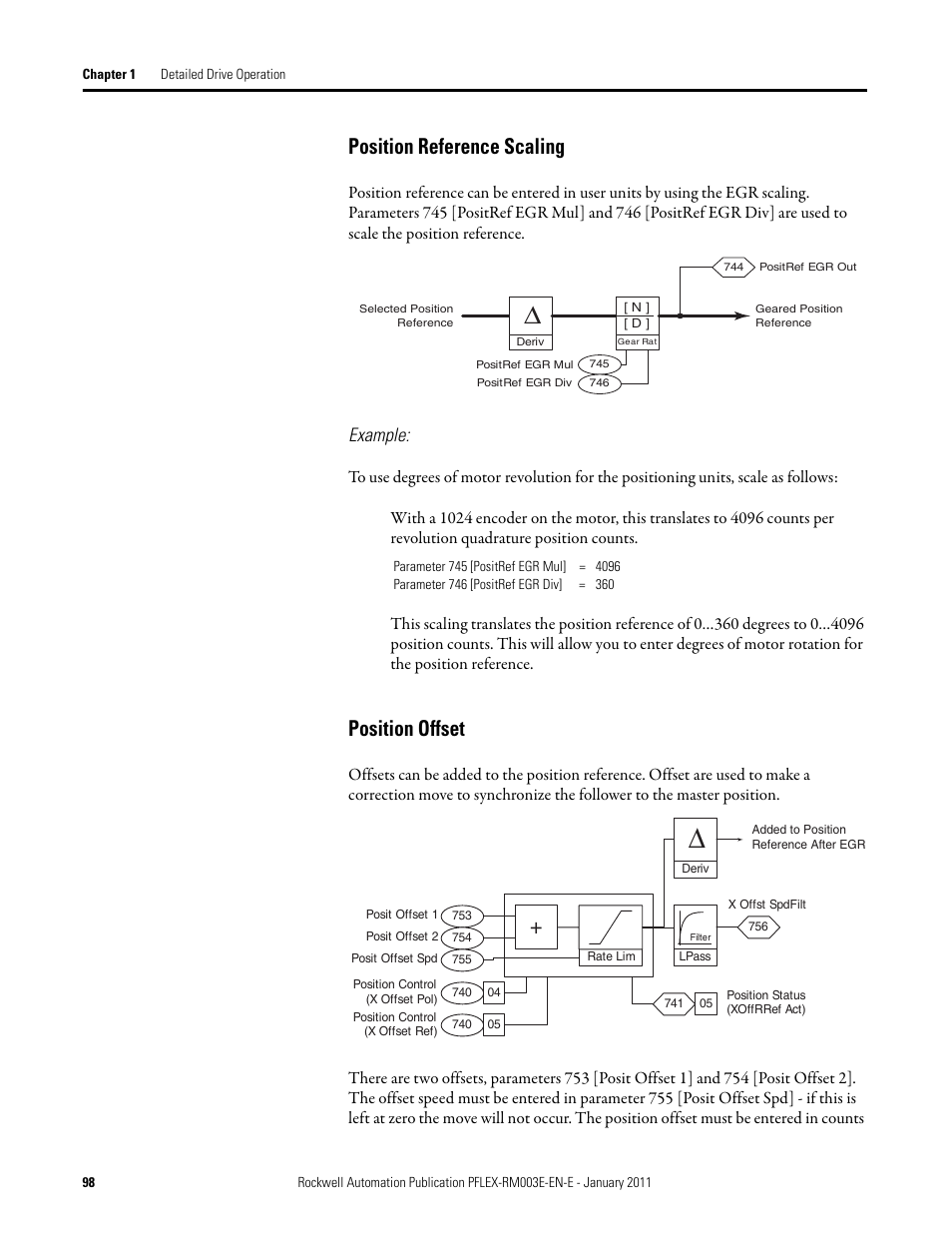

Position reference scaling position offset, Position reference scaling, Position offset – Rockwell Automation 20D PowerFlex 700S AC Drives with Phase II Control Reference Manual User Manual
Page 98: Example
