Analog inputs, Configuration configuration example, Configuration – Rockwell Automation 20D PowerFlex 700S AC Drives with Phase II Control Reference Manual User Manual

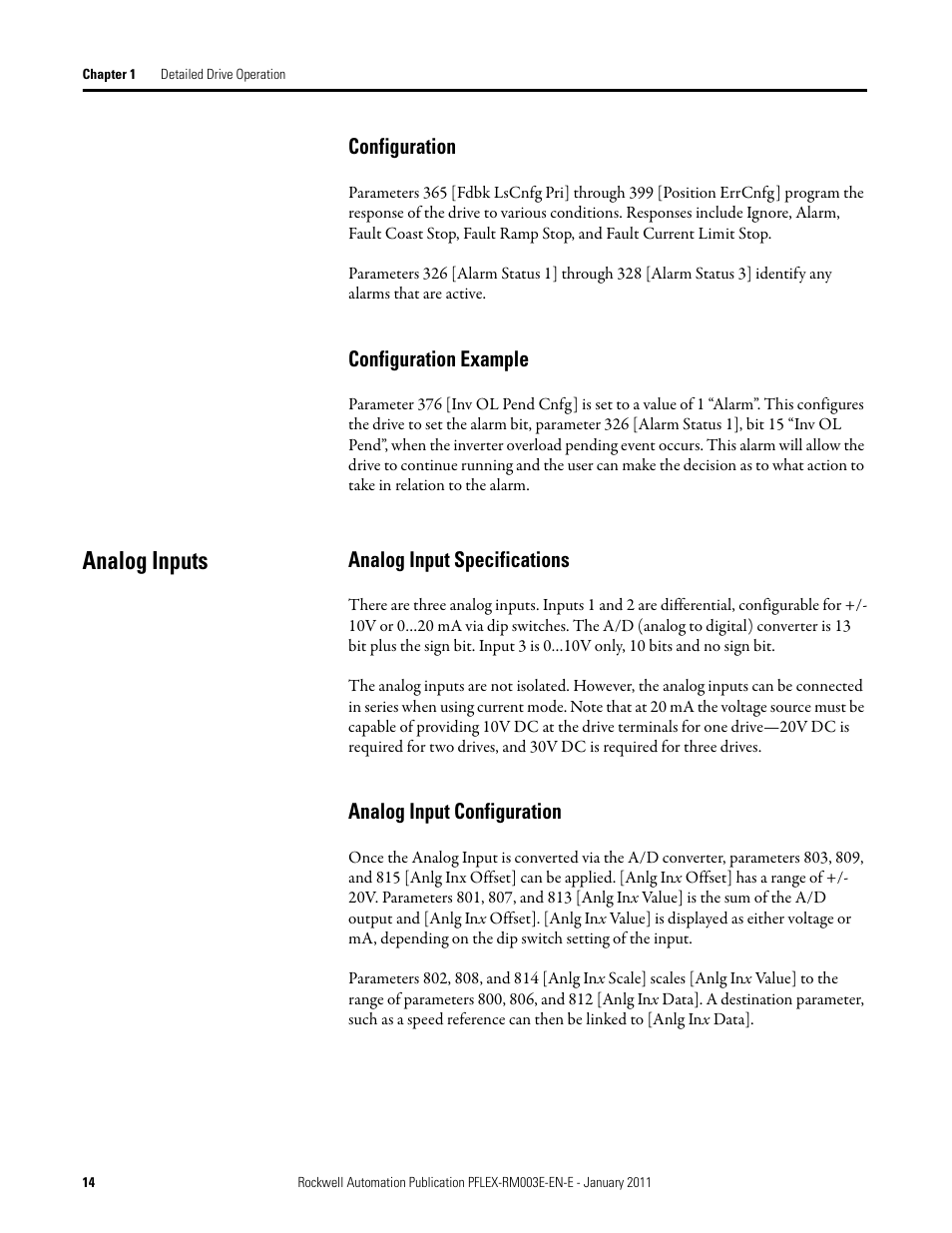

Page 14: Configuration example, Analog input specifications, Analog input configuration
