Data Table
Chapter 3
3Ć20

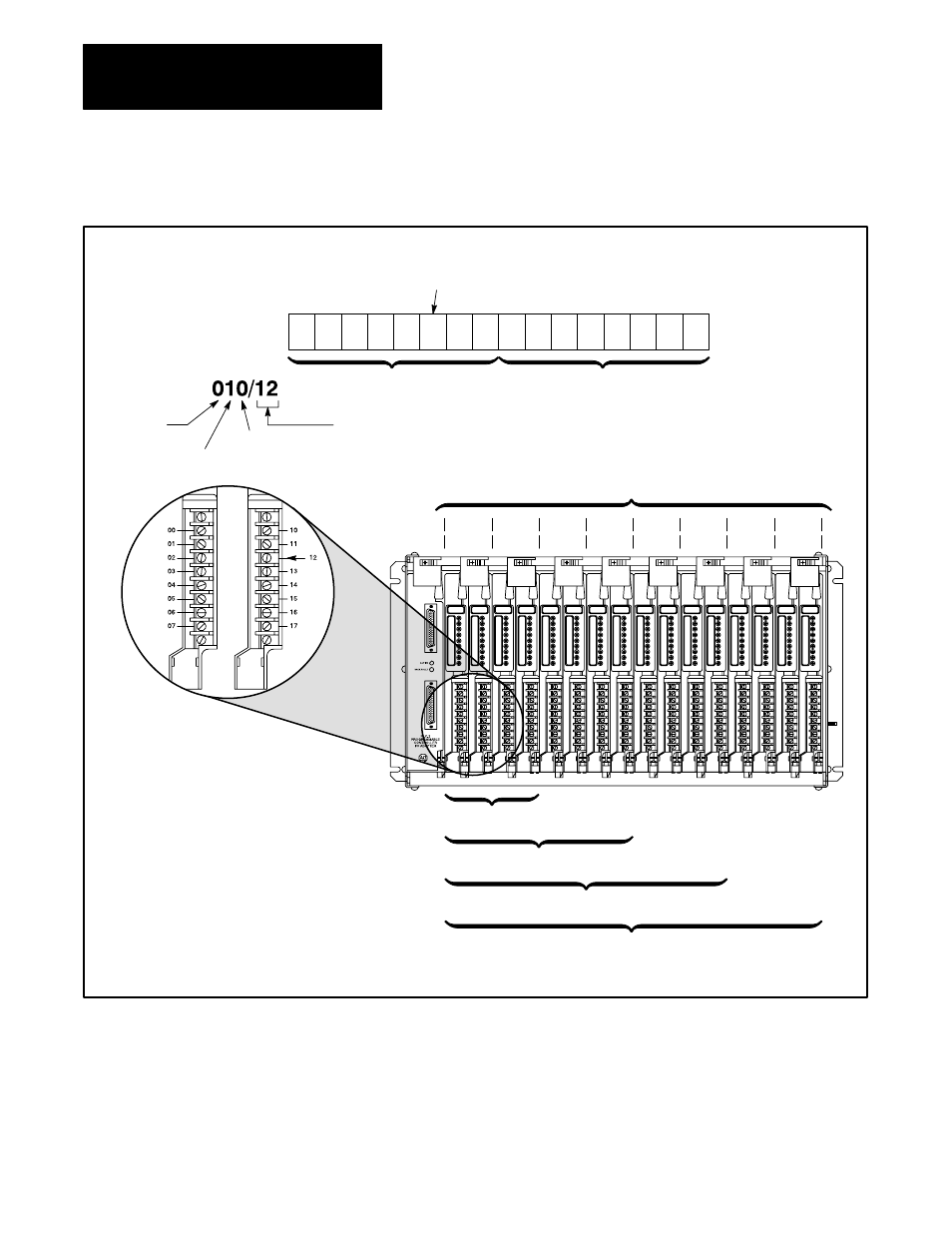

Figure 3.6
Bit Address to Hardware Relationship (2Ćslot Addressing)
17 16 15 14 13 12 11 10 07 06 05 04 03 02 01 00
Bit
Terminal Outout = 0
Input = 1
Rack
Number
Module
Group
32 I/O
64 I/O
96 I/O
128 I/O
Rack 1
I/O Group 1
0 1 2 3 4 5 6 7
Word
Address
010
Upper Byte Lower Byte
Left
Slot
0
Right
Slot
1
