Addressing

Appendix A

AĆ9

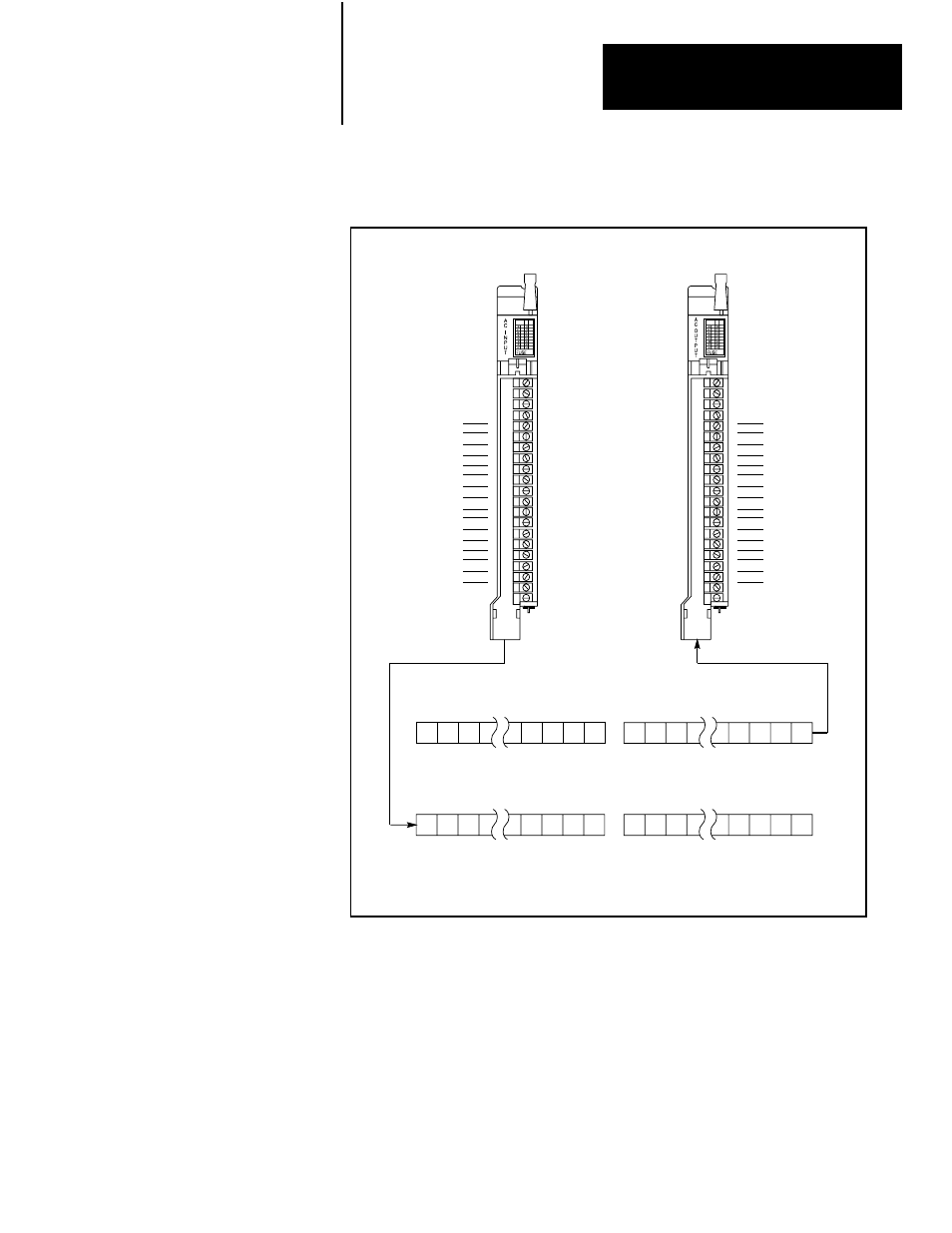

Figure A.6

Illustration of 1Ćslot Addressing with 16Ćpoint I/O Modules

00

01

02

03

04

05

06

07

10

11

12

13

14

15

16

17

00

01

02

03

04

05

06

07

10

11

12

13

14

15

16

17

Input
Terminals

Output
Terminals

17 16 15 14 04 03 02 01 00

Output image table word

corresponding to the I/O group.

1Ćslot

I/O Group

17 16 15 14 04 03 02 01 00

Output image table word

corresponding to the I/O group.

17 16 15 14 04 03 02 01 00

Input image table word

corresponding to the I/O group.

17 16 15 14 04 03 02 01 00

Input image table word

corresponding to the I/O group.

1Ćslot

I/O Group

OR

The corresponding opposite image table word is not used
when 16-point modules are used.

Assigning I/O Rack Numbers

When you select 1-slot addressing, each slot is an I/O group. You still
assign one I/O rack number to eight I/O groups; therefore, in a 16-slot I/O
chassis you now have two I/O racks (Figure A.7).
