Addressing

Appendix A

AĆ10

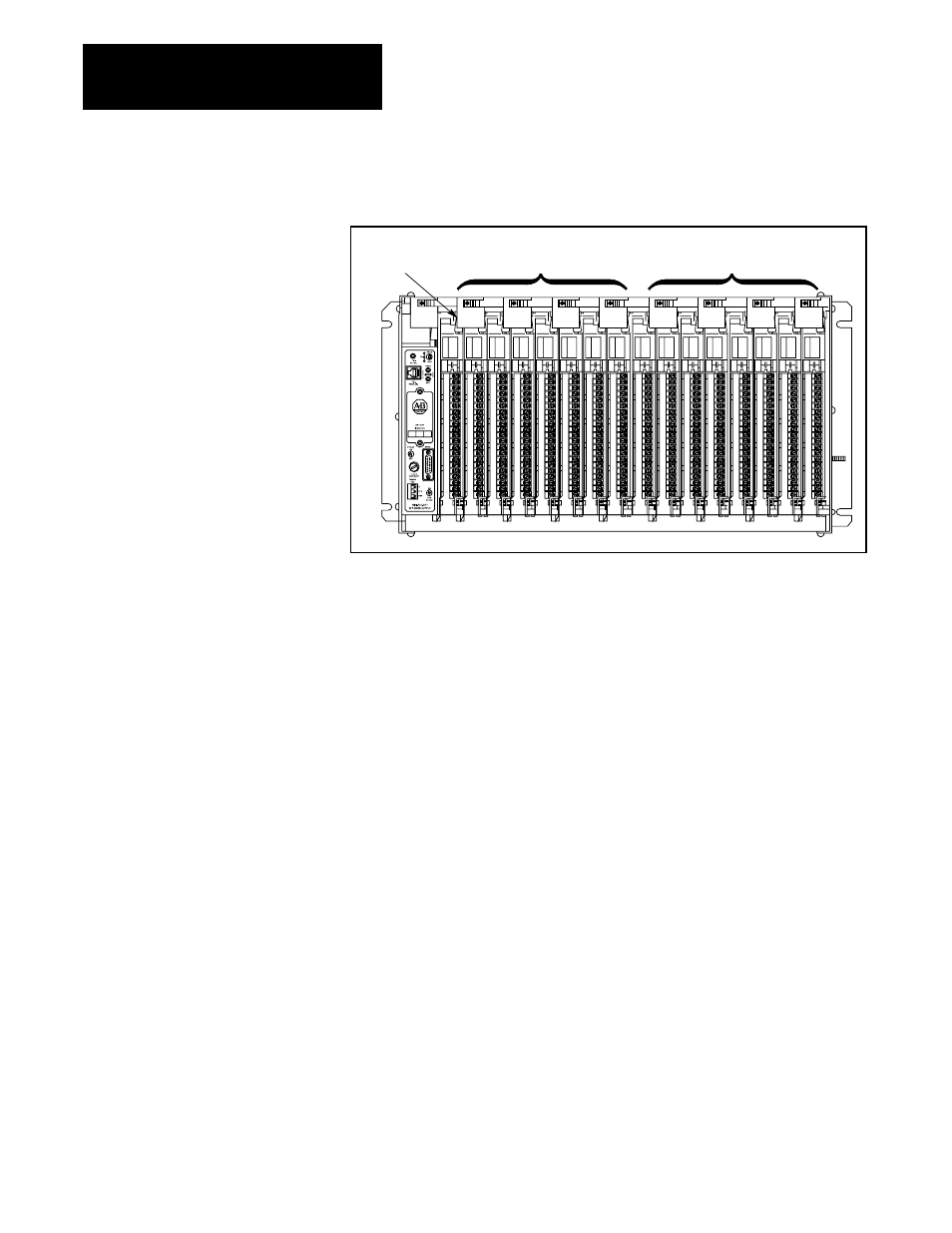

Figure A.7

Assigning I/O Rack Numbers with 1Ćslot Addressing

Н

Н
Н

Assigned

I/O rack number 1

Assigned

I/O rack number 2

I/O Group No.

01 23 45 67 01 23 45 67

Earlier (Figure A.1), we showed how the 5-digit input or output instruction
is associated with a particular I/O module terminal. Now, with two I/O
racks you use the instruction address to identify which racks you are
communicating with.

Figure A.8 illustrates addressing two modules, each in the same I/O group
number but in different assigned racks of a single I/O chassis.
