Rockwell Automation 1772-LP3 PLC - 2/30 Programmable Controller Programming and Operations Manual User Manual
Page 228
Data Transfer File Instructions
Chapter 12
12Ć13

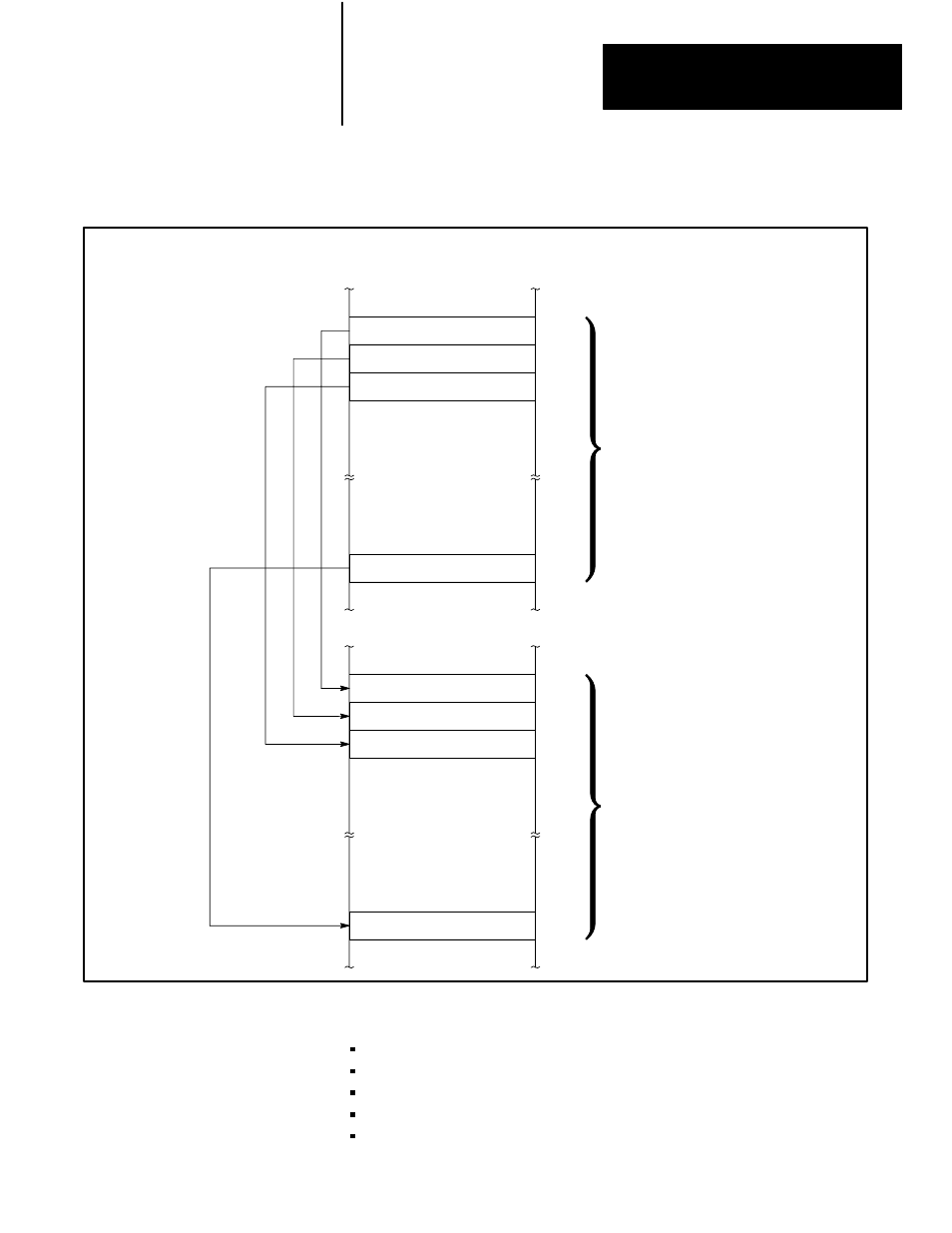

Figure 12.11
FILEĆTOĆFILE MOVE Operation
Move 10Ćword file (starting at location 410) to
10Ćword file (starting at location 474).
410
File A (10 words)
421
474
File R (10 words)
505
Instruction overview:
Output
instruction
Key sequence: [FILE] 10
Requires 5 words of user program
Can operate in incremental, distributed complete, or complete modes
Counter is internally indexed by instruction
