4-20 Configuring the I/O
20-COMM-E EtherNet/IP Adapter User Manual
Publication 20COMM-UM010G-EN-P
For the drive speed reference and Datalink parameter values and the
adapter setup parameter values, see
Drive and Adapter Parameter
Settings on page 5-14 .

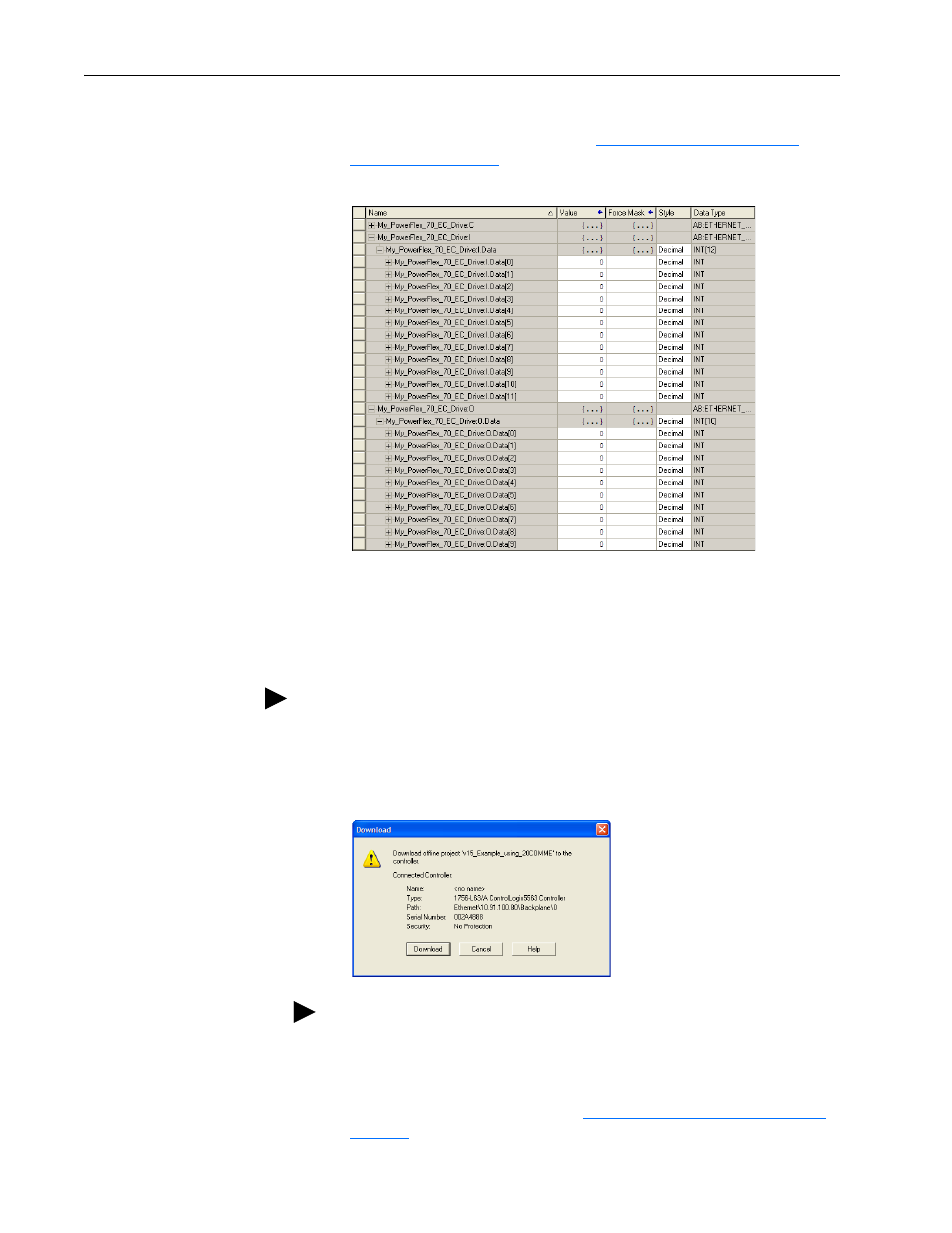

Figure 4.4 Controller Tags
Save the I/O Configuration to the Controller
After adding the bridge and drive/adapter to the I/O configuration, you must
download the configuration to the controller. You should also save the
configuration as a file on your computer.
1. In the RSLogix 5000 window, select Communications > Download.
The Download dialog box appears.
TIP: When using RSLogix 5000 software, version 16.00 or later, you can
add the I/O configuration of a Generic Profile while the controller is online
and in the Run mode.
TIP: If a message box reports that RSLogix 5000 software is unable to
go online, select Communications > Who Active to find your
controller in the Who Active screen. After finding and selecting the
controller, click Set Project Path to establish the path. If your
controller does not appear, you need to add or configure the EtherNet/IP
driver with RSLinx software. See
Using RSLinx Classic Software on
page 4-1 and RSLinx online help for details.
