Viewing the Adapter Web Pages 8-9
20-COMM-E EtherNet/IP Adapter User Manual
Publication 20COMM-UM010G-EN-P
Device Information Pages
Device information pages are viewed by clicking on the respective links in
the navigation pane:

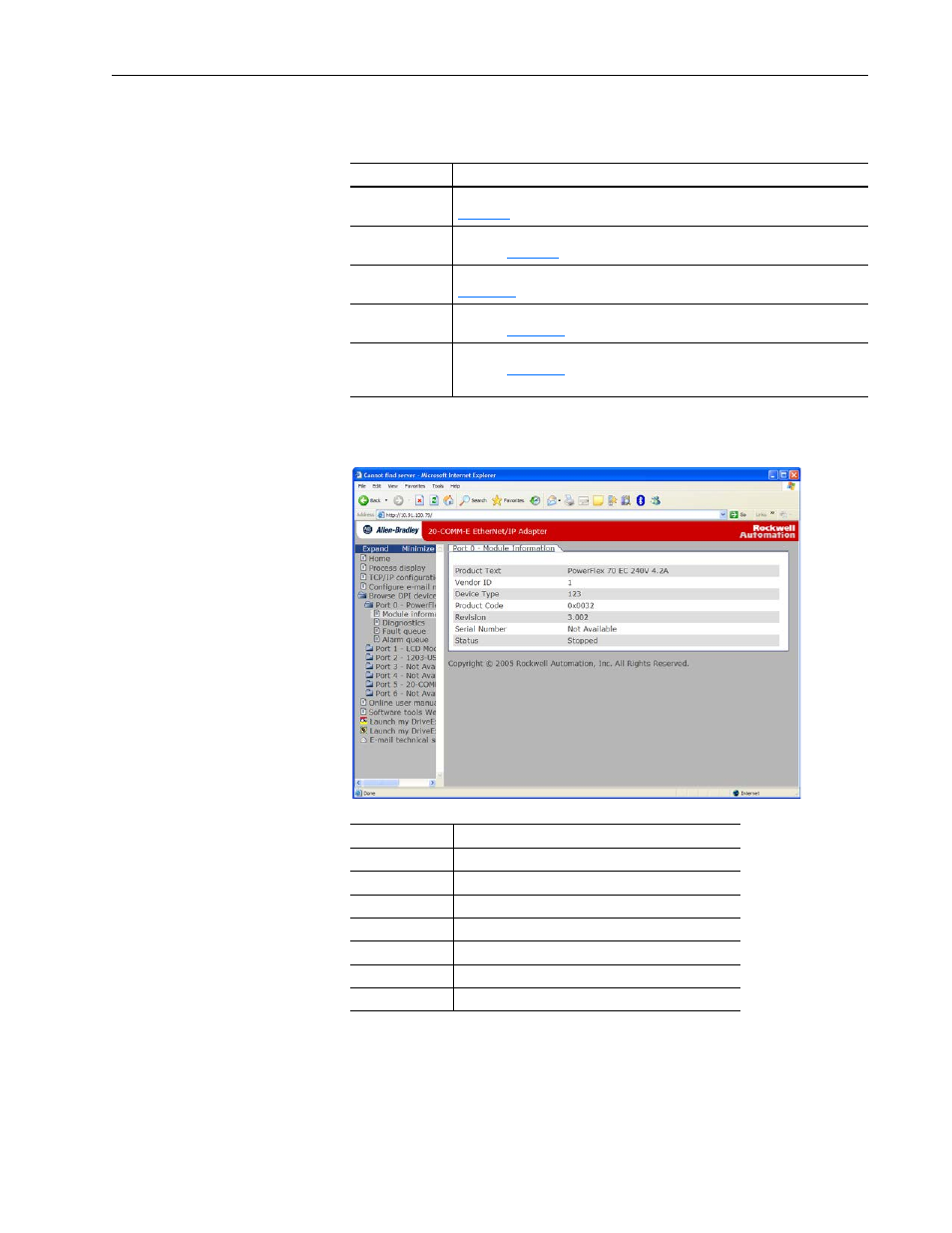

Figure 8.8 Example of Port 0 (PowerFlex 70 Drive) Module Information Page
Web Page Description
Module
Information
Shows module information for the respective drive Port device. For example,
Figure 8.8 shows module information for the Port 0 device (host drive).
Diagnostics Shows diagnostic item information for the respective drive Port device. For
example, Figure 8.9 shows diagnostic items for the Port 0 device (host drive).
Fault Queue Shows fault queue information for the respective drive Port device. For example,
Figure 8.10 shows the fault queue for the Port 0 device (host drive).
Alarm Queue (1)
(1) Information shown only when supported by the device.
Shows alarm queue information for the respective drive Port device. For
example, Figure 8.11 shows the alarm queue for the Port 0 device (host drive).
Event Queue (1) Shows event queue information for the respective drive Port device. For
example, Figure 8.12 shows the event queue for the Port 5 device (22-COMM-E
adapter).
Information Description
Product Text Text identifying the device
Vendor ID 1 = Allen-Bradley
Device Type 123 decimal = PowerFlex 70 EC drive
Product Code Code for the product name and its rating
Revision Firmware revision used by the device
Serial Number Serial number of the device
Status Operating status of the device (for example, stopped)
