4-4 Configuring the I/O
20-COMM-E EtherNet/IP Adapter User Manual
Publication 20COMM-UM010G-EN-P
In this example, we use a 1756-ENBT EtherNet/IP Bridge (Series A),
so the 1756-ENBT/A option is selected.
6. Click OK.
7. In the Select Major Revision pop-up dialog box, select the major
revision of its firmware.
8. Click OK.

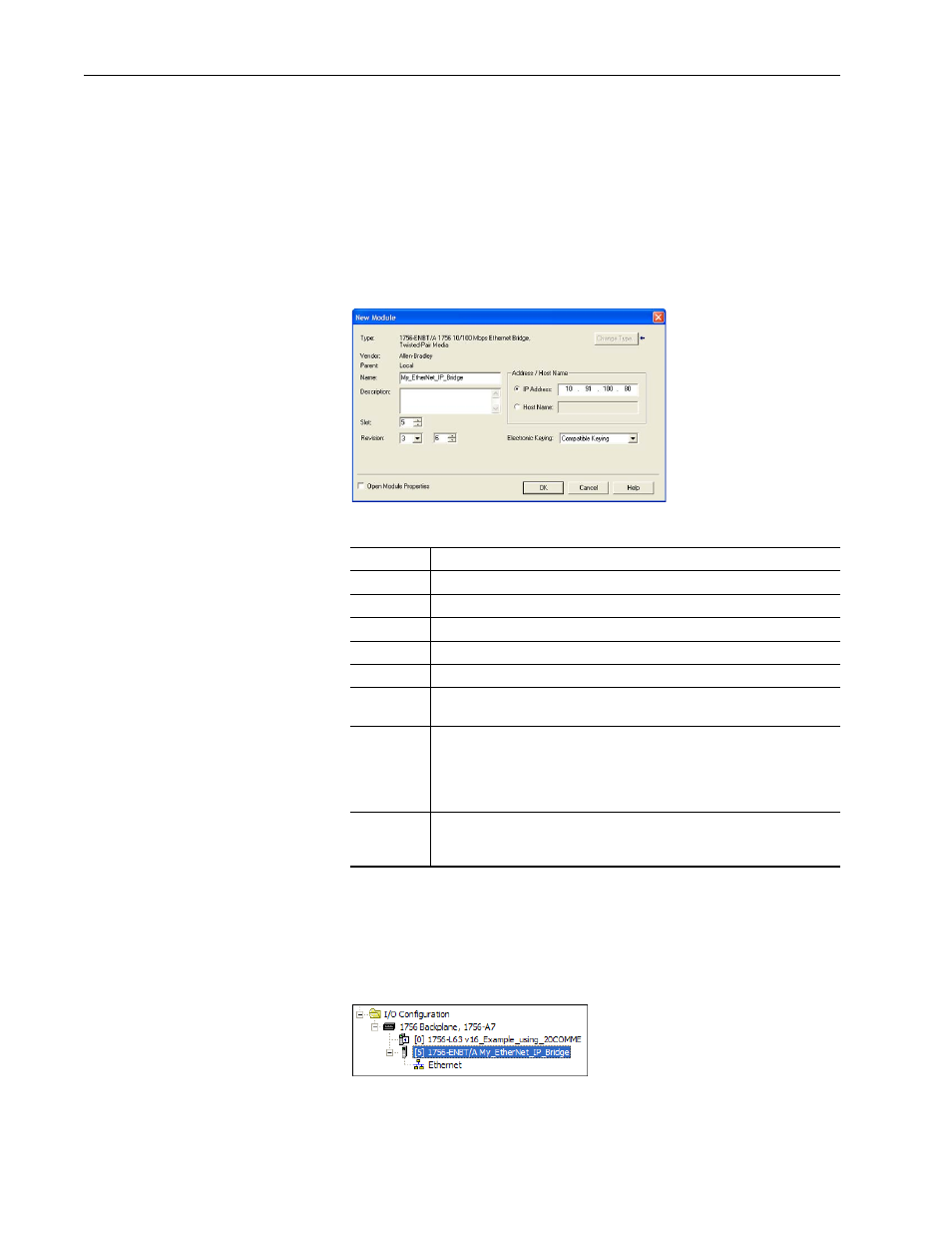

The bridge’s New Module screen appears.
9. Edit the following:
10. Click OK.
The bridge is now configured for the EtherNet/IP network and added to
the RSLogix 5000 project. It appears in the I/O Configuration folder. In
our example, a 1756-ENBT bridge appears under the I/O Configuration
folder with its assigned name.
For convenience, keep the project open. Later in this chapter the project
will need to be downloaded to the controller.
Box Setting
Name A name to identify the EtherNet/IP bridge.
Description Optional – description of the EtherNet/IP bridge.
IP Address The IP address of the EtherNet/IP bridge.
Host Name Not used.
Slot The slot of the EtherNet/IP bridge in the rack.
Revision The minor revision of the firmware in the bridge. (You already set the major
revision by selecting the bridge series in step 5.)
Electronic
Keying
Compatible Keying. The ‘Compatible Keying’ setting for Electronic Keying
ensures the physical module is consistent with the software configuration
before the controller and bridge make a connection. Therefore, be sure that
you have set the correct revision in this screen. See the online Help for
additional information on this and other Electronic Keying settings.
Open
Module
Properties
When this box is checked, clicking OK opens additional module properties
screens to further configure the bridge. When unchecked, clicking OK closes
the bridge’s New Module screen. For this example, uncheck this box.
