GX-2012 Operator’s Manual

Cotton Filter, and Wire Mesh Disk • 157

5. The hydrophobic disk filters and wire mesh disk are located in the case

and are retained by a rubber gasket. Pull out the rubber gasket with
needle nose pliers.

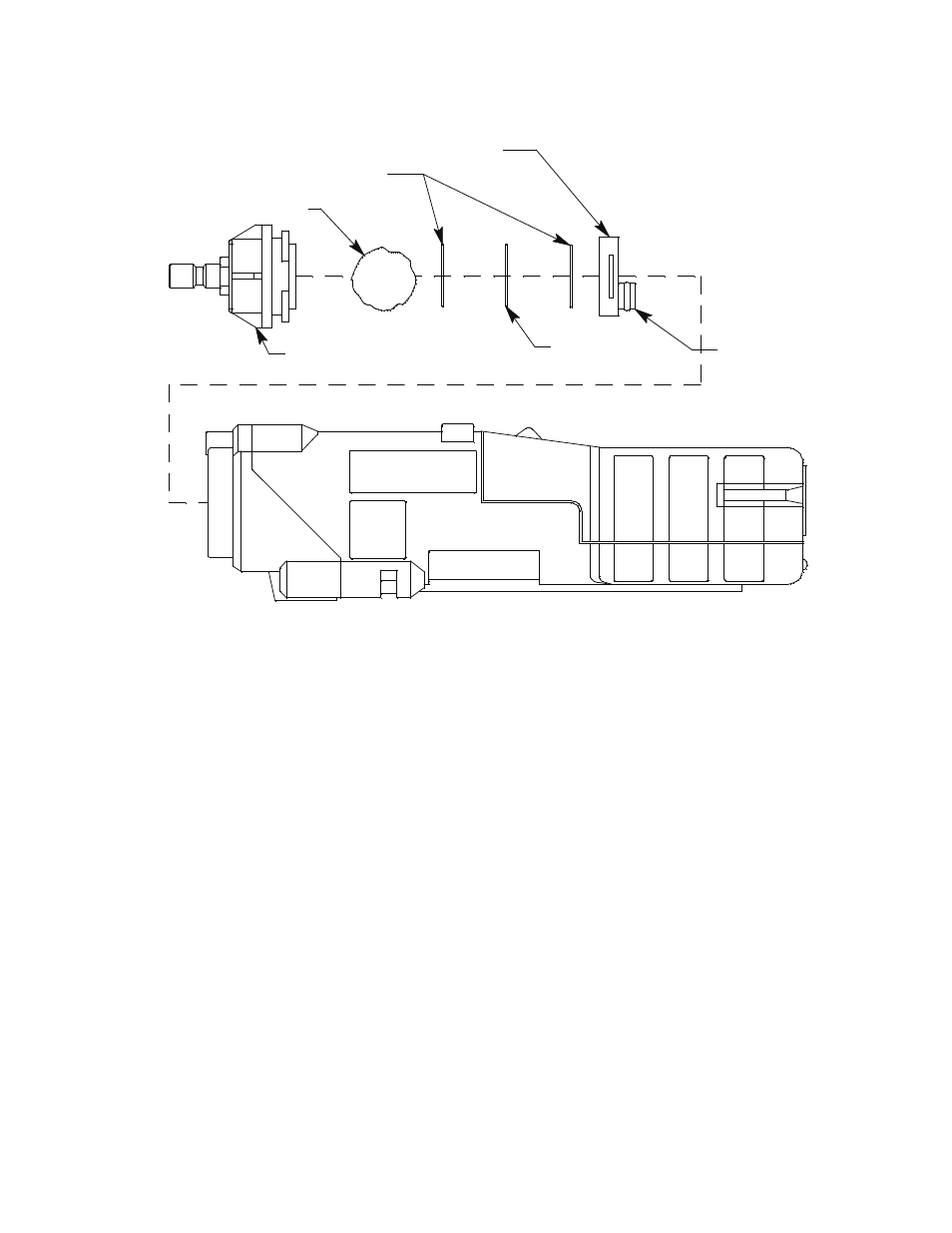

Figure 28: Changing the Filters & Wire Mesh Disk

6. Remove the old hydrophobic filters and/or wire mesh disk from the

gasket. A hydrophobic filter is located on either side of the wire mesh
disk.

7. Install the new hydrophobic filters and/or wire mesh disk making sure a

hydrophobic filter is located on each side of the wire mesh disk.

8. Reinstall the gasket with the parts into the case. Ensure that the

installation stub is lined up with the pump intake in the filter chamber.

9. Reinstall the filter holder with the cotton dust filter. Align the two wide

tabs on the bottom of the filter holder with the two wide slots in the case
where the filter holder fits. Push the filter holder into the case and turn it
1/4 turn clockwise until it snaps into place.

Wire Mesh

Disk

Filter Holder

Rubber Gasket

Installation
Stub

Hydrophobic Disk Filter

Cotton Dust Filter
