GX-2012 Operator’s Manual

Replacing or Recharging the Batteries • 147

Replacing the Lithium Ion Battery Pack

NOTE: Use Procell PC 1500 alkaline batteries, Duracell MN 1500 alkaline

batteries, or RKI Instruments lithium ion battery pack
49-1615RK to maintain the CSA classification of the GX-2012. Use
of other batteries will void the CSA classification and may void the
warranty.

1. Turn off the GX-2012.

WARNING: Do not remove the battery pack while the GX-2012 is on.

2. Push the latch on the bottom of the GX-2012 toward the front of the

instrument to release the battery pack.

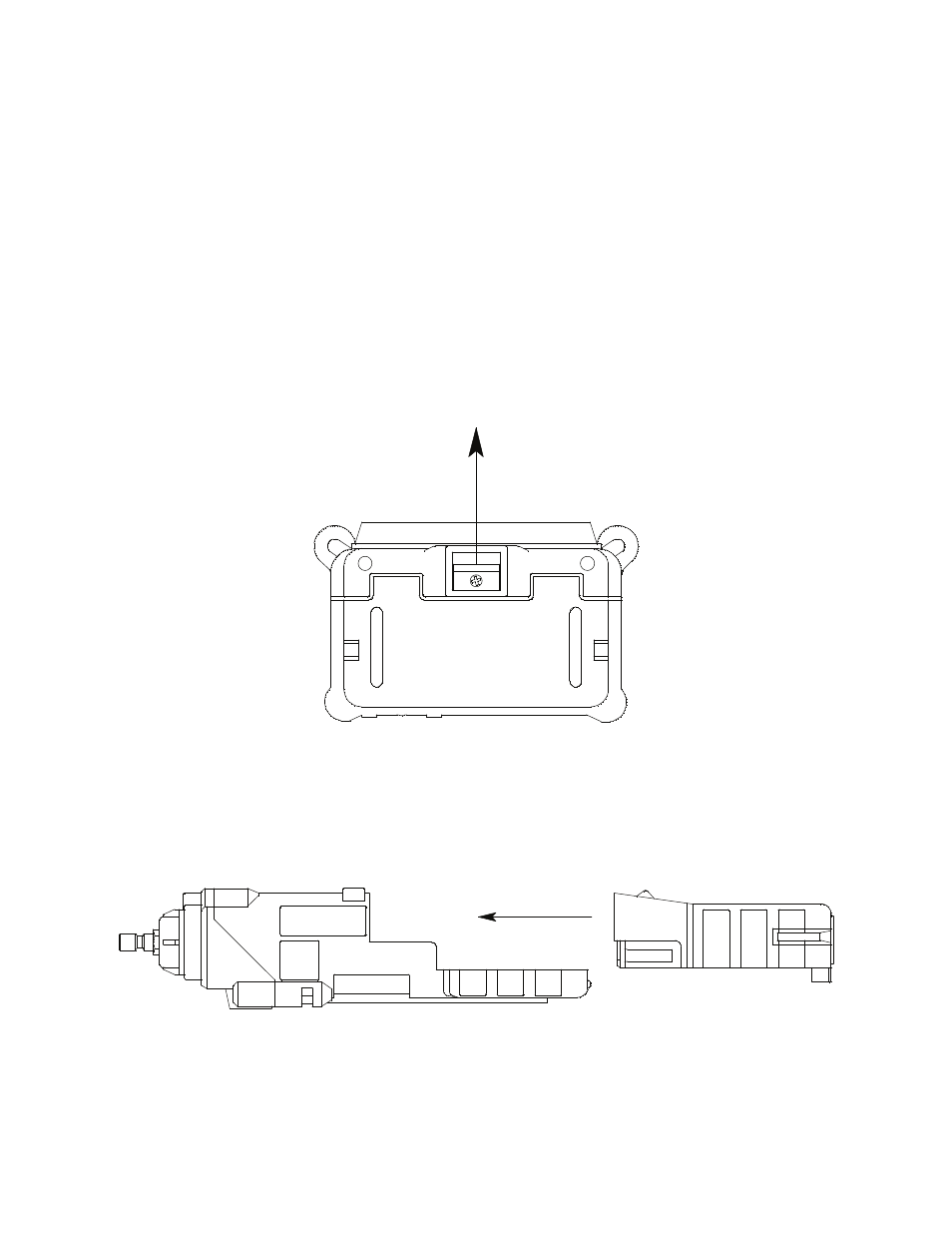

Figure 18: Releasing the Battery Pack

3. Slide the battery pack away from the instrument.
4. Insert a new battery pack ensuring that the slots and grooves on the sides

are properly lined up. Push the battery pack into the instrument until you
hear a click.

Figure 19: Installing the Battery Pack

Slide Latch This Way
